Электросхемы Стартер Генератор Dodge Pickup R1500 2007

Стартер Генератор

3.7L

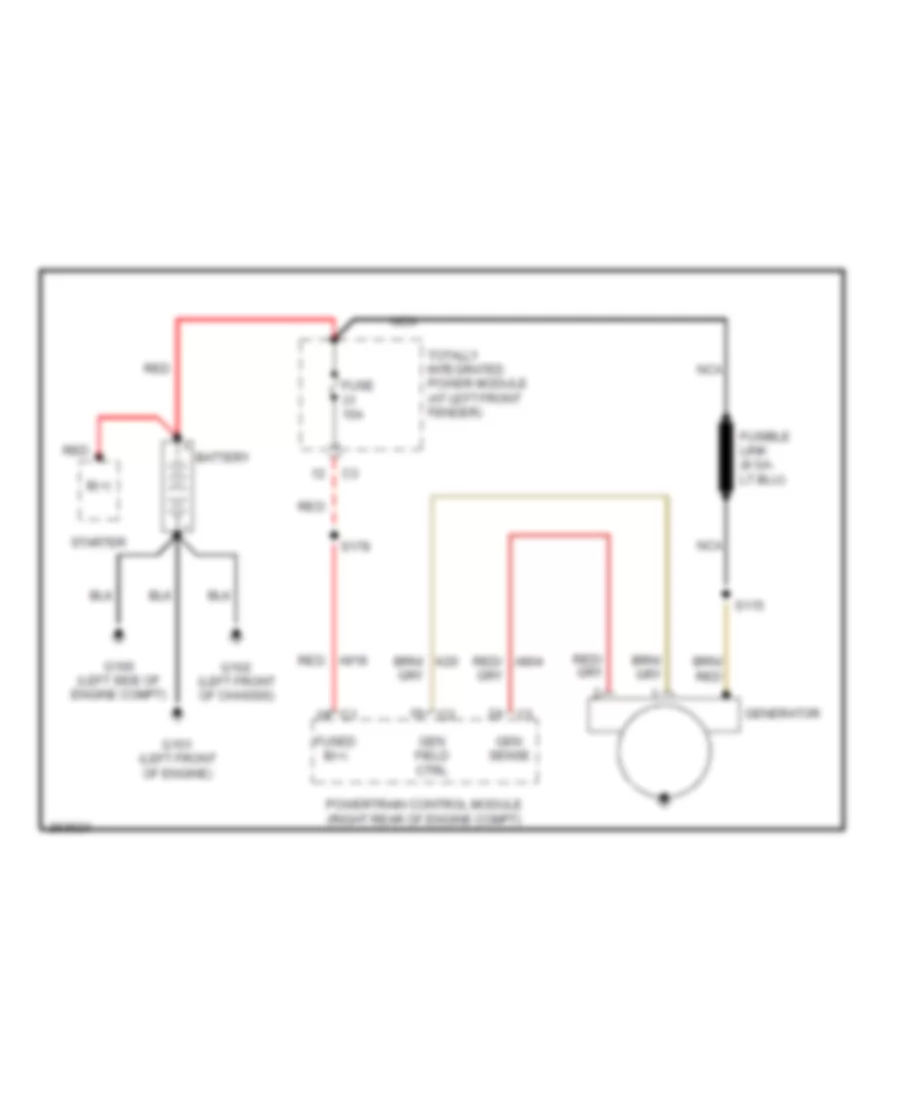

3.7L, Электросхема Генератора для Dodge Pickup R1500 2007

3.7L, Электросхема Генератора для Dodge Pickup R1500 2007 - Список элементов:

• B(+)
• Battery
• Fuse 15a
• Fused b(+)
• G100 (left side of engine compt)
• G101 (left front of engine)
• G102 (left front of chassis)
• Gen field ctrl
• Gen sense
• Generator
• Nca
• Powertrain control module (right rear of engine compt)
• Red
• Red a918
• Red/ a804
• S115
• S178
• Starter
• Totally integrated power module (at left front fender)

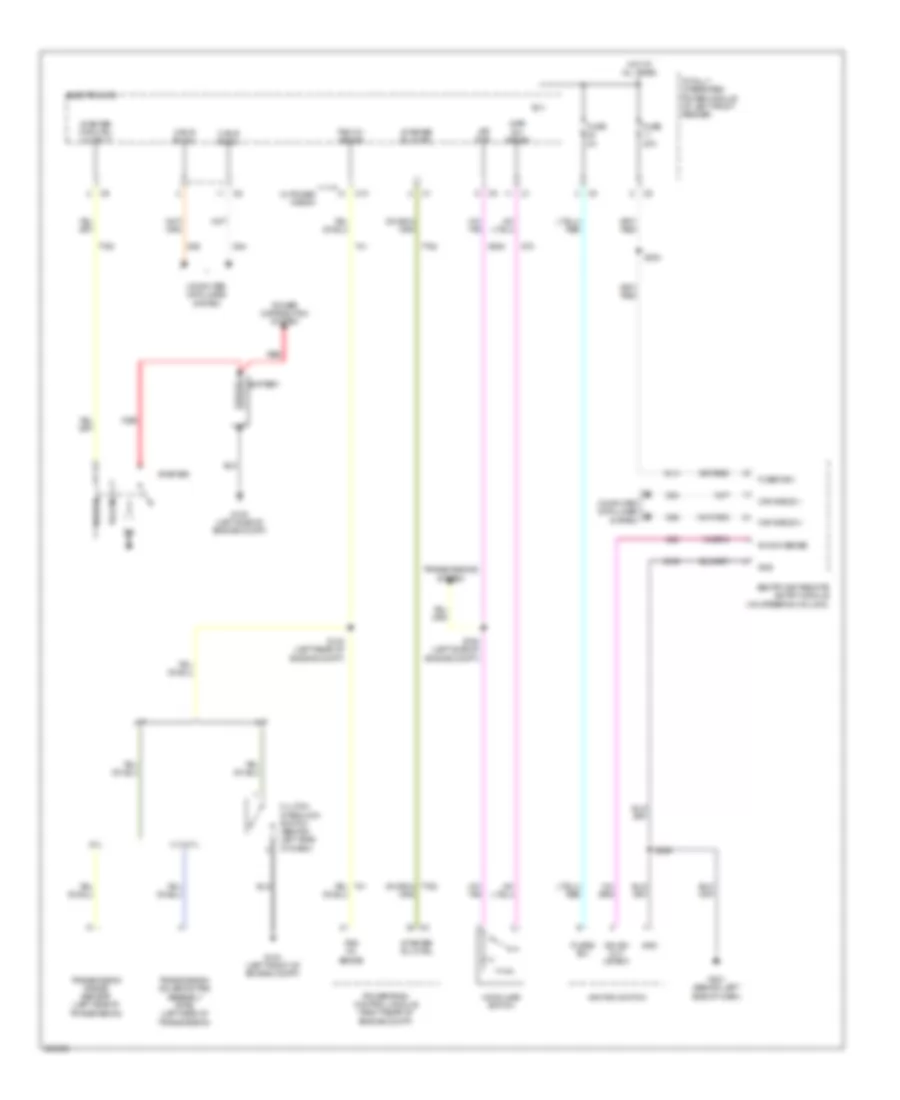

3.7L, Электросхема стартера для Dodge Pickup R1500 2007

3.7L, Электросхема стартера для Dodge Pickup R1500 2007 - Список элементов:

• 3.7l
• 4.7l/5.7l
• A/t
• A114
• Aat rtn
• Ajar sw sense
• B(+)
• Battery
• C10
• Can b bus(+)
• Can b bus(-)
• Clutch interlock switch (behind left side of dash)
• Computer data lines system
• D54
• D55
• Electronics
• Fuse 20a
• Fuse 2a
• Fused b(+)
• G100 (left side of engine compt)
• G104 (left front of engine compt)
• G20
• G201 (behind left side of dash)
• G70
• G930
• Gnd
• Hold-in
• Hood ajar switch
• Hot at all times
• Ign sw out (start)
• Ign sw sense
• Ignition switch
• M/t
• Power distribution system
• Powertrain control module (right rear of engine compt)
• Pull-in
• Red
• S123 (left rear of engine compt)
• S194 (left side of engine compt)
• S204
• S228
• Sentry key remote entry module (on steering column)
• Starter
• Starter mtr ctrl output
• Starter rly ctrl
• T41
• T750
• T752
• Totally integrated power module (at left front fender)
• Transmission range sensor (left side of transmission)
• Transmission solenoid/trs assembly (rfe) (left side of transmission)
• Transmissions system
• Trs t41 sense
• W/ power wagon
• Z109

4.7L

4.7L, Электросхема Генератора для Dodge Pickup R1500 2007

4.7L, Электросхема Генератора для Dodge Pickup R1500 2007 - Список элементов:

• B(+)
• Battery
• Fuse 15a
• Fused b(+)
• G100 (left side of engine compt)
• G101 (left front of engine)
• G102 (left front of chassis)
• Gen field ctrl
• Gen sense
• Generator
• Nca
• Powertrain control module (right rear of engine compt)
• Red
• Red a918
• Red/ a804
• S115
• S178
• Starter
• Totally integrated power module (at left front fender)

4.7L, Электросхема стартера для Dodge Pickup R1500 2007

4.7L, Электросхема стартера для Dodge Pickup R1500 2007 - Список элементов:

• 3.7l
• 4.7l/5.7l
• A/t
• A114
• Aat rtn
• Ajar sw sense
• B(+)
• Battery
• C10
• Can b bus(+)
• Can b bus(-)
• Clutch interlock switch (behind left side of dash)
• Computer data lines system
• D54
• D55
• Electronics
• Fuse 20a
• Fuse 2a
• Fused b(+)
• G100 (left side of engine compt)
• G104 (left front of engine compt)
• G20
• G201 (behind left side of dash)
• G70
• G930
• Gnd
• Hold-in
• Hood ajar switch
• Hot at all times
• Ign sw out (start)
• Ign sw sense
• Ignition switch
• M/t
• Power distribution system
• Powertrain control module (right rear of engine compt)
• Pull-in
• Red
• S123 (left rear of engine compt)
• S194 (left side of engine compt)
• S204
• S228
• Sentry key remote entry module (on steering column)
• Starter
• Starter mtr ctrl output
• Starter rly ctrl
• T41
• T750
• T752
• Totally integrated power module (at left front fender)
• Transmission range sensor (left side of transmission)
• Transmission solenoid/trs assembly (rfe) (left side of transmission)
• Transmissions system
• Trs t41 sense
• W/ power wagon
• Z109

4.7L ГИБКОЕ ТОПЛИВО

4.7L комбинированное топливо, Электросхема Генератора для Dodge Pickup R1500 2007

4.7L комбинированное топливо, Электросхема Генератора для Dodge Pickup R1500 2007 - Список элементов:

• B(+)
• Battery
• Fuse 15a
• Fused b(+)
• G100 (left side of engine compt)
• G101 (left front of engine)
• G102 (left front of chassis)
• Gen field ctrl
• Gen sense
• Generator
• Nca
• Powertrain control module (right rear of engine compt)
• Red
• Red a918
• Red/ a804
• S115
• S178
• Starter
• Totally integrated power module (at left front fender)

4.7L комбинированное топливо, Электросхема стартера для Dodge Pickup R1500 2007

4.7L комбинированное топливо, Электросхема стартера для Dodge Pickup R1500 2007 - Список элементов:

• 3.7l
• 4.7l/5.7l
• A/t
• A114
• Aat rtn
• Ajar sw sense
• B(+)
• Battery
• C10
• Can b bus(+)
• Can b bus(-)
• Clutch interlock switch (behind left side of dash)
• Computer data lines system
• D54
• D55
• Electronics
• Fuse 20a
• Fuse 2a
• Fused b(+)
• G100 (left side of engine compt)
• G104 (left front of engine compt)
• G20
• G201 (behind left side of dash)
• G70
• G930
• Gnd
• Hold-in
• Hood ajar switch
• Hot at all times
• Ign sw out (start)
• Ign sw sense
• Ignition switch
• M/t
• Power distribution system
• Powertrain control module (right rear of engine compt)
• Pull-in
• Red
• S123 (left rear of engine compt)
• S194 (left side of engine compt)
• S204
• S228
• Sentry key remote entry module (on steering column)
• Starter
• Starter mtr ctrl output
• Starter rly ctrl
• T41
• T750
• T752
• Totally integrated power module (at left front fender)
• Transmission range sensor (left side of transmission)
• Transmission solenoid/trs assembly (rfe) (left side of transmission)
• Transmissions system
• Trs t41 sense
• W/ power wagon
• Z109

5.7L

5.7L, Электросхема Генератора для Dodge Pickup R1500 2007

5.7L, Электросхема Генератора для Dodge Pickup R1500 2007 - Список элементов:

• B(+)
• Battery
• Fuse 15a
• Fused b(+)
• G100 (left side of engine compt)
• G101 (left front of engine)
• G102 (left front of chassis)
• Gen field ctrl
• Gen sense
• Generator
• Nca
• Powertrain control module (right rear of engine compt)
• Red
• Red a918
• Red/ a804
• S115
• S178
• Starter
• Totally integrated power module (at left front fender)

5.7L, Электросхема стартера для Dodge Pickup R1500 2007

5.7L, Электросхема стартера для Dodge Pickup R1500 2007 - Список элементов:

• 3.7l
• 4.7l/5.7l
• A/t
• A114
• Aat rtn
• Ajar sw sense
• B(+)
• Battery
• C10
• Can b bus(+)
• Can b bus(-)
• Clutch interlock switch (behind left side of dash)
• Computer data lines system
• D54
• D55
• Electronics
• Fuse 20a
• Fuse 2a
• Fused b(+)
• G100 (left side of engine compt)
• G104 (left front of engine compt)
• G20
• G201 (behind left side of dash)
• G70
• G930
• Gnd
• Hold-in
• Hood ajar switch
• Hot at all times
• Ign sw out (start)
• Ign sw sense
• Ignition switch
• M/t
• Power distribution system
• Powertrain control module (right rear of engine compt)
• Pull-in
• Red
• S123 (left rear of engine compt)
• S194 (left side of engine compt)
• S204
• S228
• Sentry key remote entry module (on steering column)
• Starter
• Starter mtr ctrl output
• Starter rly ctrl
• T41
• T750
• T752
• Totally integrated power module (at left front fender)
• Transmission range sensor (left side of transmission)
• Transmission solenoid/trs assembly (rfe) (left side of transmission)
• Transmissions system
• Trs t41 sense
• W/ power wagon
• Z109
