Электросхемы СИСТЕМЫ СИДЕНИЙ BMW 528i 2008

СИСТЕМЫ СИДЕНИЙ

Электросхема привода водительского сиденья для BMW 528i 2008

Электросхема привода водительского сиденья для BMW 528i 2008 - Список элементов:

• Driver's backrest angle drive (left side of driver seat back)
• Driver's lumbar support switch
• Driver's lumbar support valve block (driver's seatback)
• Driver's seat adjustment switch
• Driver's seat height adjustment drive (under driver's seat)
• Driver's seat lumbar support drive (under driver's seat)
• Front fuse holder (under right side of dash)
• Fuse f14 30a
• Hot at all times
• Nca
• X11003
• X13789 (left front floor)

Электросхема подогрева передних сидений для BMW 528i 2008

Электросхема подогрева передних сидений для BMW 528i 2008 - Список элементов:

• (left front floor) x13789
• (right front floor) x13784
• Computer data lines system
• Driver's seat backrest heating element (in driver's seat backrest)
• Driver's seat cushion heating element (in driver's seat cushion)
• Driver's seat module (under right side of seat)
• Front fuse holder (under right side of dash)
• Fuse f14 30a
• Fuse f21 30a
• Fuse f31 30a
• Fuse f33 30a
• Hot at all times
• Passenger's seat backrest heating (in front passenger's seat backrest)
• Passenger's seat cushion heating (in front passenger's seat cushion)
• Passenger's seat module (under passenger's seat)
• W/ 4 circuit seat heating
• W/ semi- electric basic seat
• W/o semi- electric basic seat
• X11003
• X11004
• X11005
• X13985
• X13986
• X13987
• X13988
• X13989
• X13990

Электросхема подогрева руля для BMW 528i 2008

Электросхема подогрева руля для BMW 528i 2008 - Список элементов:

• (6 series: left kick panel) (5 series: under left side of dash) x13785
• Front fuse holder (5 series: under right side of dash) (6 series: behind glove box)
• Fuse f28 20a
• Hot at all times
• Nca
• Steering column switch cluster
• Steering wheel heater & steering column adjustment switch
• Steering wheel heater w/ temperature sensor
• X01001
• X01002
• X01006
• X01009
• X01196
• X01234
• X01235
• X11005
• X1880

ортопедическая схема мест (1 из 2) для BMW 528i 2008

ортопедическая схема мест (1 из 2) для BMW 528i 2008 - Список элементов:

• (left front floor) x13789
• (under left side of dash) x13785
• Computer data lines system
• Driver 1 active backrest width adjustment drive unit
• Driver 2 active backrest width adjustment drive unit
• Driver's active backrest width adjustment
• Driver's active seat lumbar support drive unit
• Driver's active seat motor (under driver's seat)
• Driver's seat module (under right side of seat)
• Front fuse holder (under right side of dash)
• Fuse f14 30a
• Fuse f31 30a
• Fuse f83 30a
• Hot at all times
• Hot w/ terminal 30g relay energized
• Memory system (driver's memory seats)
• Nca
• Rear fuse holder (right side of rear compt)
• Red
• W/ semi- electric basic seat
• W/o semi- electric basic seat
• X11003
• X11005
• X11015
• X11548
• X11549
• X11550
• X11554
• X11555
• X11596
• X11597
• X13532
• X13989

ортопедическая схема мест (2 из 2) для BMW 528i 2008

ортопедическая схема мест (2 из 2) для BMW 528i 2008 - Список элементов:

• (right front floor) x13784
• Computer data lines system
• Front fuse holder (under right side of dash)
• Front passenger's active seat lumbar support drive unit
• Front passenger's active seat motor (under passenger's seat)
• Fuse f21 30a
• Fuse f33 30a
• Fuse f53 30a
• Hot at all times
• Hot w/ term 30g relay energized
• Memory systems (passenger's memory seats)
• Nca
• Passenger 1 active backrest width adjustment drive unit
• Passenger 2 active backrest width adjustment drive unit
• Passenger's active backrest width adjustment
• Passenger's seat module (under passenger's seat)
• Rear fuse holder (right side of rear compt)
• Red
• W/ semi- electric basic seat
• W/o semi- electric basic seat
• X11004
• X11005
• X11010
• X11551
• X11552
• X11553
• X11556
• X11557
• X11598
• X11599
• X13533
• X13790
• X13990

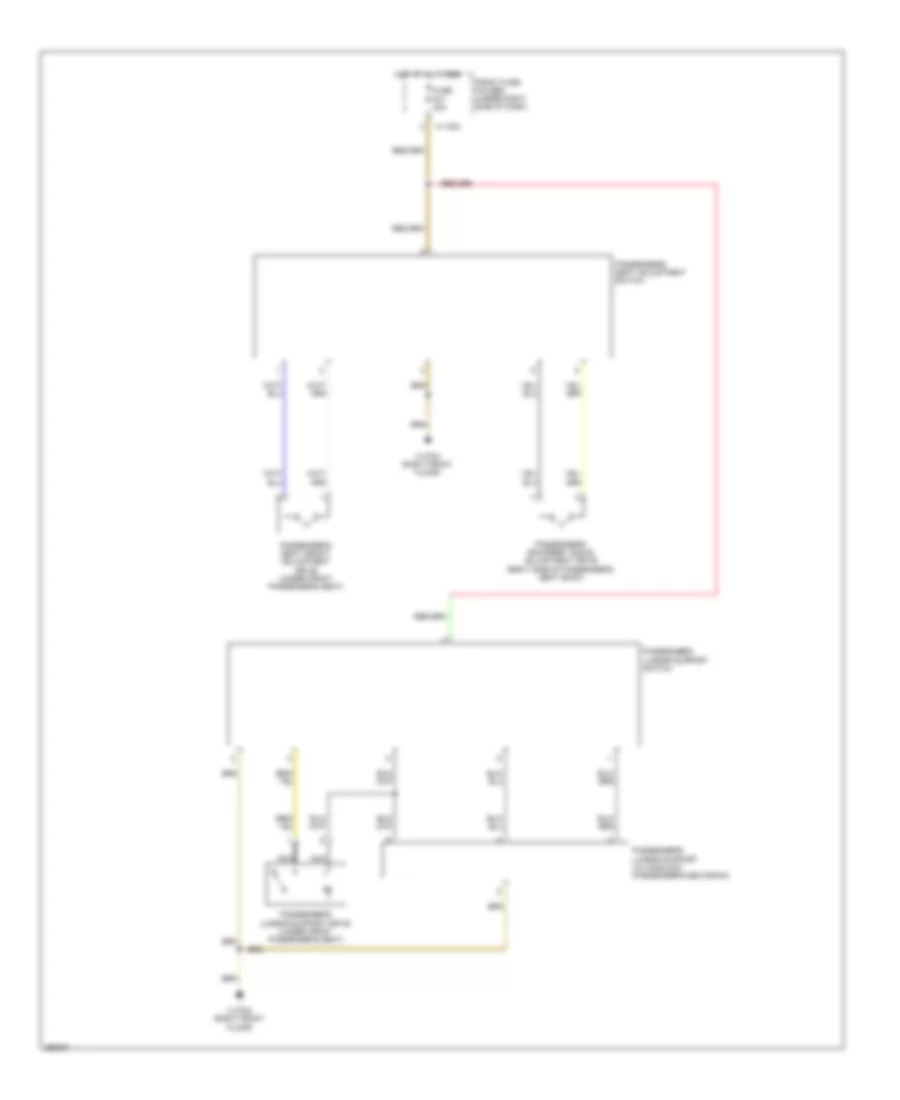

Электросхема привода пассажирского сиденья для BMW 528i 2008

Электросхема привода пассажирского сиденья для BMW 528i 2008 - Список элементов:

• Front fuse holder (under right side of dash)
• Fuse f21 30a
• Hot at all times
• Nca
• Passenger's backrest angle adjustment drive (right side of passenger's seat back)
• Passenger's lumbar support drive (under front passenger's seat)
• Passenger's lumbar support switch
• Passenger's lumbar support valve block (passenger's seatback)
• Passenger's seat adjustment switch
• Passenger's seat height adjustment drive (under front passenger's seat)
• X11004
• X13784 (right front floor)

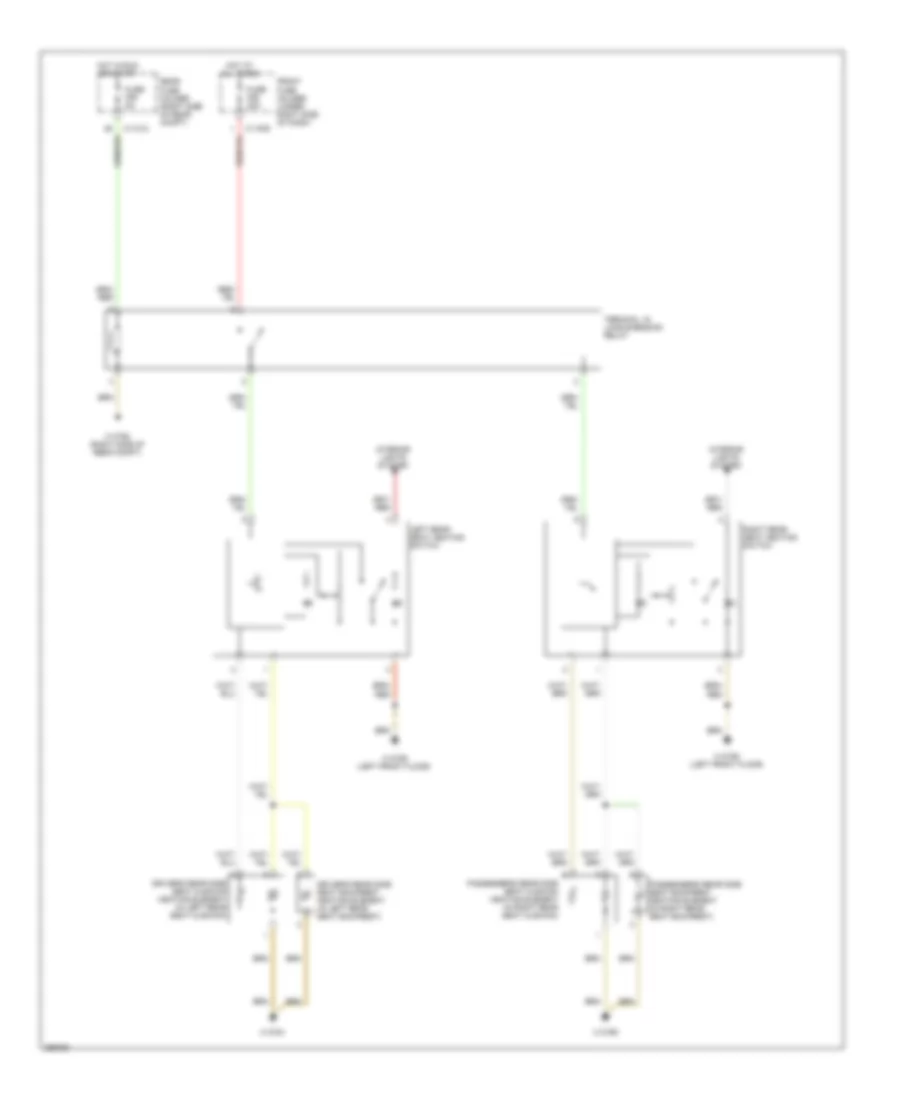

Электросхема подогрева задних сидений для BMW 528i 2008

Электросхема подогрева задних сидений для BMW 528i 2008 - Список элементов:

• Driver's rear side seat backrest heating element (in left rear seat backrest)
• Driver's rear side seat cushion heating element (in left rear seat cushion)
• Front fuse holder (under right side of dash)
• Fuse f26 20a
• Fuse f89 5a
• Hot at all times
• Hot in run or start
• Interior lights system
• Left rear seat heating switch
• Passenger's rear side seat backrest heating element (in right rear seat backrest)
• Passenger's rear side seat cushion heating element (in right rear seat cushion)
• Rear fuse holder (right side of rear compt)
• Right rear seat heating switch
• Terminal 15 load-shedding relay
• X11005
• X11012
• X13789 (left front floor)
• X13790
• X13791
• X13794 (right side of rear compt)

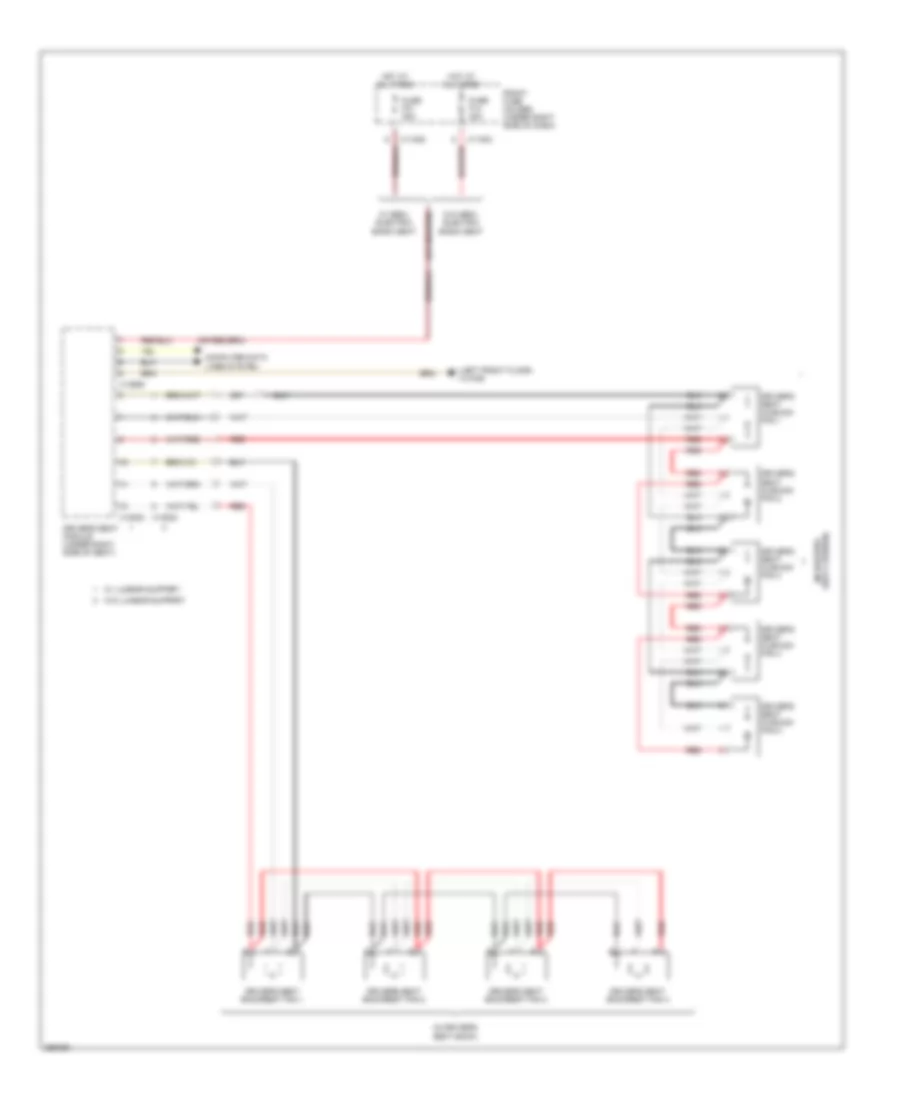

схема вентиляции места (1 из 2) для BMW 528i 2008

схема вентиляции места (1 из 2) для BMW 528i 2008 - Список элементов:

• (in driver's seat back)
• (left front floor) x13789
• Computer data lines system
• Driver's seat backrest fan 1
• Driver's seat backrest fan 2
• Driver's seat backrest fan 3
• Driver's seat backrest fan 4
• Driver's seat cushion fan 1
• Driver's seat cushion fan 2
• Driver's seat cushion fan 3
• Driver's seat cushion fan 4
• Driver's seat cushion fan 5
• Driver's seat module (under right side of seat)
• Front fuse holder (under right side of dash)
• Fuse f14 30a
• Fuse f31 30a
• Hot at all times
• Red
• Seat cushion) (in driver's
• W/ lumbar support
• W/ semi- electric basic seat
• W/o lumbar support
• W/o semi- electric basic seat
• X11003
• X11005
• X13532
• X13989

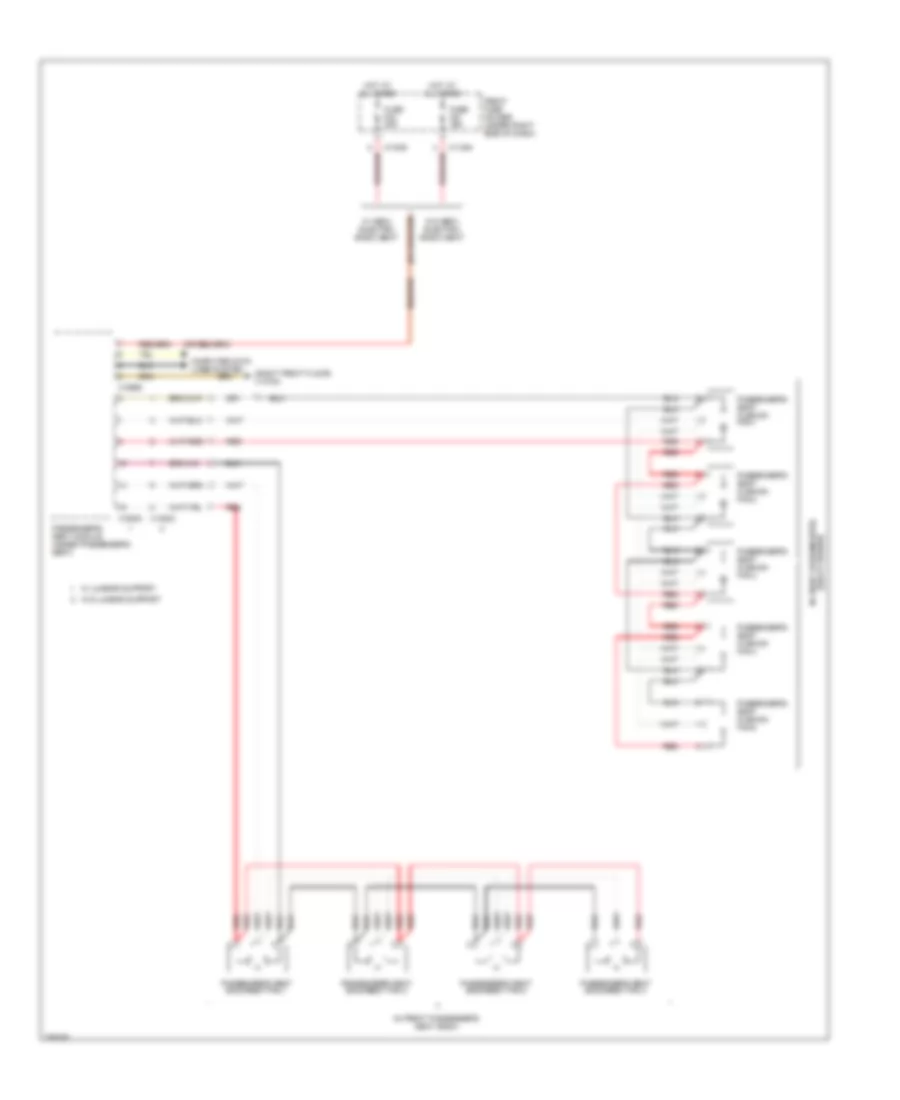

схема вентиляции места (2 из 2) для BMW 528i 2008

схема вентиляции места (2 из 2) для BMW 528i 2008 - Список элементов:

• (in front passenger's seat back)
• (right front floor) x13784
• (seat cushion in front passenger's)
• Computer data lines system
• Front fuse holder (under right side of dash)
• Fuse f21 30a
• Fuse f33 30a
• Hot at all times
• Passenger's seat backrest fan 1
• Passenger's seat backrest fan 2
• Passenger's seat backrest fan 3
• Passenger's seat backrest fan 4
• Passenger's seat cushion fan 1
• Passenger's seat cushion fan 2
• Passenger's seat cushion fan 3
• Passenger's seat cushion fan 4
• Passenger's seat cushion fan 5
• Passenger's seat module (under passenger's seat)
• Red
• W/ lumbar support
• W/ semi- electric basic seat
• W/o lumbar support
• W/o semi- electric basic seat
• X11004
• X11005
• X13533
• X13990
