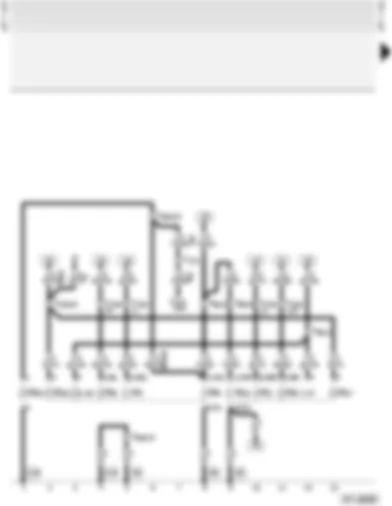

Wiring Diagram AUDI A4 1996 - Audi Avant

J124	Bulb monitoring device, rear
L46	Rear fog light bulb, left
L47	Rear fog light bulb, right
M2	Tail light bulb, right
M4	Tail light bulb, left
M6	Turn signal bulb, rear left
M8	Turn signal bulb, rear right
M9	Brake light bulb, left
M10	Brake light bulb, right
M16	Reversing light bulb, left
M17	Reversing light bulb, right
M25	High level brake light bulb
T1e	1-pin connector, black, left connector point, A pillar
T6e	6-pin connector, blue, left connector point, A pillar
T6ad	6-pin connector, black, on rear left luggage compartment
T10a	10-pin connector, brown, left connector point, A pillar
86	Earth connection -1-, in rear wiring harness
218	Earth connection -1-, in tailgate/boot lid wiring harness
*	See applicable Current Flow Diagram: automatic gearbox
**	Only models with auto-check system
***	Only models with manual gearbox
****	Does not apply to models with auto-check system

G	Fuel gauge sender
J218	Combi-processor in dash panel insert
K65	Left turn signal warning lamp
K94	Right turn signal warning lamp
M1	Side light bulb, left
M3	Side light bulb, right
T5	5-pin connector, headlight, right
T5a	5-pin connector, headlight, left
T6	6-pin connector, yellow, right connector point, A pillar
T6b	6-pin connector, yellow, light connector point, A pillar
T10a	10-pin connector, brown, left connector point, A pillar
T26	26-pin connector, yellow, on dash panel insert
T26a	26-pin connector, blue, on dash panel insert
32	Earth point, behind dash panel, left
A5	Positive (+) connection (right turn signal), in dash panel wiring harness
A6	Positive (+) connection (turn signal, left), in dash panel wiring harness
A43	Connection (57l), in dash panel wiring harness
A44	Connection (57r), in dash panel wiring harness

E1	Lighting switch
F	Brake light switch
F4	Reversing light switch
F5	Luggage compartment light switch
T6e	6-pin connector, blue, left connector point, A pillar
T6ad	6-pin connector, black, on rear left luggage compartment
T10	10-pin connector, brown, connector point, electronics box, plenum chamber
T10m	10-pin connector, black, connector point, electronics box, plenum chamber
T16	16-pin connector, in centre console rear
V94	Central locking motor with control unit for interior lights switch-off delay and anti-theft alarm system
W1	Rear interior light / luggage compartment
218	Earth connection -1-, in tailgate/boot lid wiring harness
A2	Positive (+) connection (15), in dash panel wiring harness
A18	Connection (54), in dash panel wiring harness
A32	Positive (+) connection (30), in dash panel wiring harness
A34	Connection (75x), in dash panel wiring harness
A70	Connection (15a, fuse 231), in dash panel wiring harness
*	Only models with manual gearbox

E1	Lighting switch
E15	Heated rear window switch
E18	Rear fog light switch
G183	Glass breakage sensor, rear left side window
T6e	6-pin connector, blue, left connector point, A pillar
T6q	6-pin connector, purple, left connector point, A pillar
T6ad	6-pin connector, black, on rear left luggage compartment
T6ae	Single connector, white, on rear left luggage compartment
T10a	10-pin connector, brown, left connector point, S pillar
W6	Glove box light
X	Number plate light
Z1	Heated rear window
81	Earth connection -1-, in dash panel wiring harness
218	Earth connection -1-, in tailgate/boot lid wiring harness
A3	Positive (+) connection (58), in dash panel wiring harness
A19	Connection (58d), in dash panel wiring harness
A37	Connection (58a), in dash panel wiring harness
*	Only models with anti-theft alarm system

E22	Intermittent wiper switch
E182	Water pump switch (fresh water, rear)
F9	Handbrake warning switch
J30	Rear window wiper/washer relay
J31	Automatic intermittent wash/wipe relay
T6b	6-pin connector, yellow, left connector point, A pillar
T6p	6-pin connector, white, left connector point, A pillar
T6ad	6-pin connector, black, on rear left luggage compartment
T6ae	Single connector, white, on rear left luggage compartment
T10c	10-pin connector, violet, left connector point, A pillar
V	Windscreen wiper motor
V5	Windscreen washer pump
V12	Rear window wiper motor
V13	Rear window washer pump
81	Earth connection -1-, in dash panel wiring harness
135	Earth connection -2-, in dash panel wiring harness
218	Earth connection -1-, in tailgate/boot lid wiring harness
