ELECTRONIC SUSPENSION – Hummer H2 2009 – SYSTEM WIRING DIAGRAMS

ELECTRONIC SUSPENSION

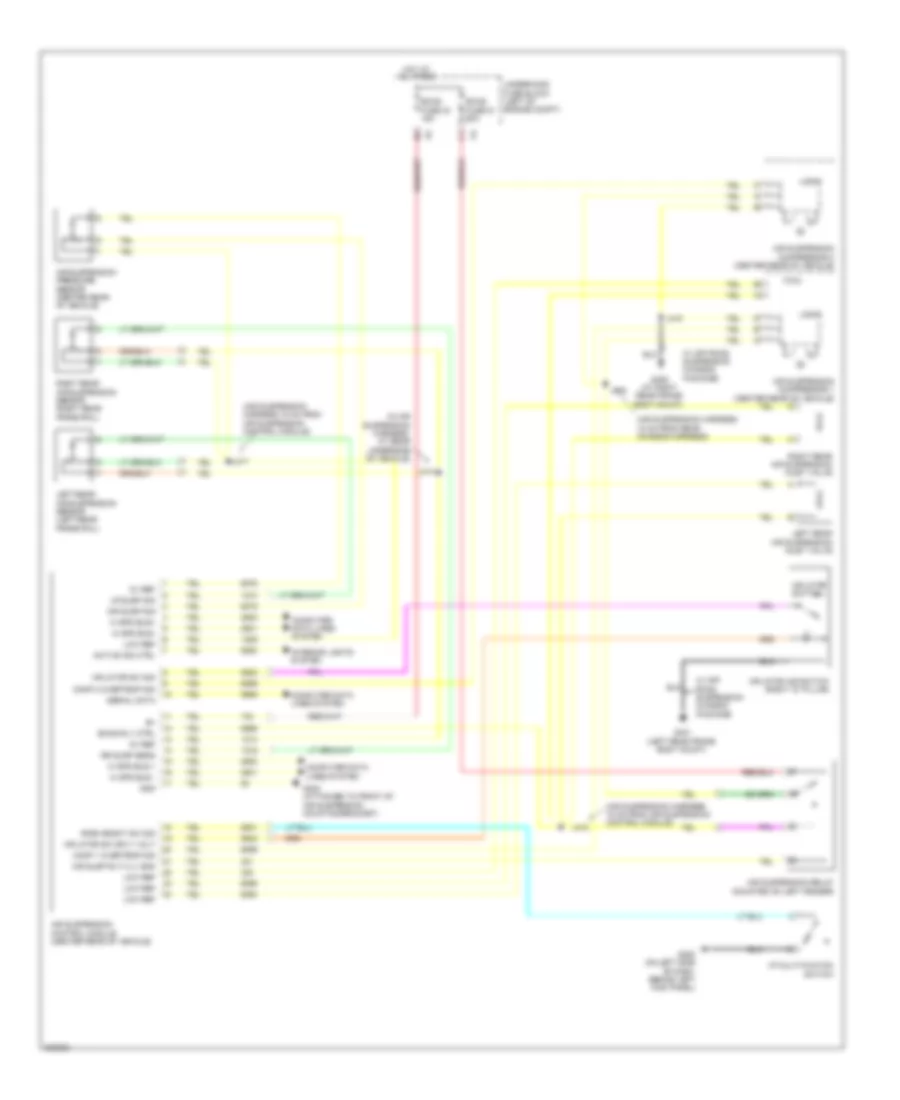

Electronic Suspension Wiring Diagram for Hummer H2 2009

List of elements for Electronic Suspension Wiring Diagram for Hummer H2 2009:

• (air suspension harness 12 cm from rear chassis harness)
• (air suspension harness 15 cm from air suspension control module)
• (in air suspension harness, at rear underside of vehicle)
• 5v ref
• Active ind ctrl
• Air susp rly/vlv gnd
• Air susp sig
• Air suspension compressor 1 (center rear of vehicle)
• Air suspension compressor 2 (center rear of vehicle)
• Air suspension control module (center rear of vehicle)
• Air suspension pressure sensor (center rear of vehicle)
• Air suspension relay (mounted on left fender)
• Comp 1 overtemp sig
• Comp 2 overtemp sig
• Computer data lines system
• Ecas fuse 32 15a
• Ecas fuse 51 60a
• Ecas rly ctrl
• G200 (on left side of dash, behind left kick panel)
• G401 (left rear frame body mount)
• G402 (attached to front of air suspension mounting bracket)
• G405 (at right rear frame body mount)
• Gnd
• Hi spd bus +
• Hi spd bus -
• Hi spd bus+
• Hi spd bus-
• Hot at all times
• I/p multi-funtion switch
• Inflator air switch (right "d" pillar)
• Inflator sw sig
• Inflator sw sply volt
• Inflator switch
• Interior lights system
• J414
• J415
• J416
• J417
• J418
• Left rear air suspension inlet valve
• Left rear air suspension sensor (left rear frame rail)
• Logic
• Low ref
• Lr susp sig
• Ride height sw sig
• Right rear air suspension inlet valve
• Right rear air suspension sensor (right rear frame rail)
• Rr susp sens
• Serial data
• Underhood fuse block (left of engine compt)
• W/ off road suspension chassis package
