HORN – Isuzu Amigo XS 1993 – SYSTEM WIRING DIAGRAMS

HORN

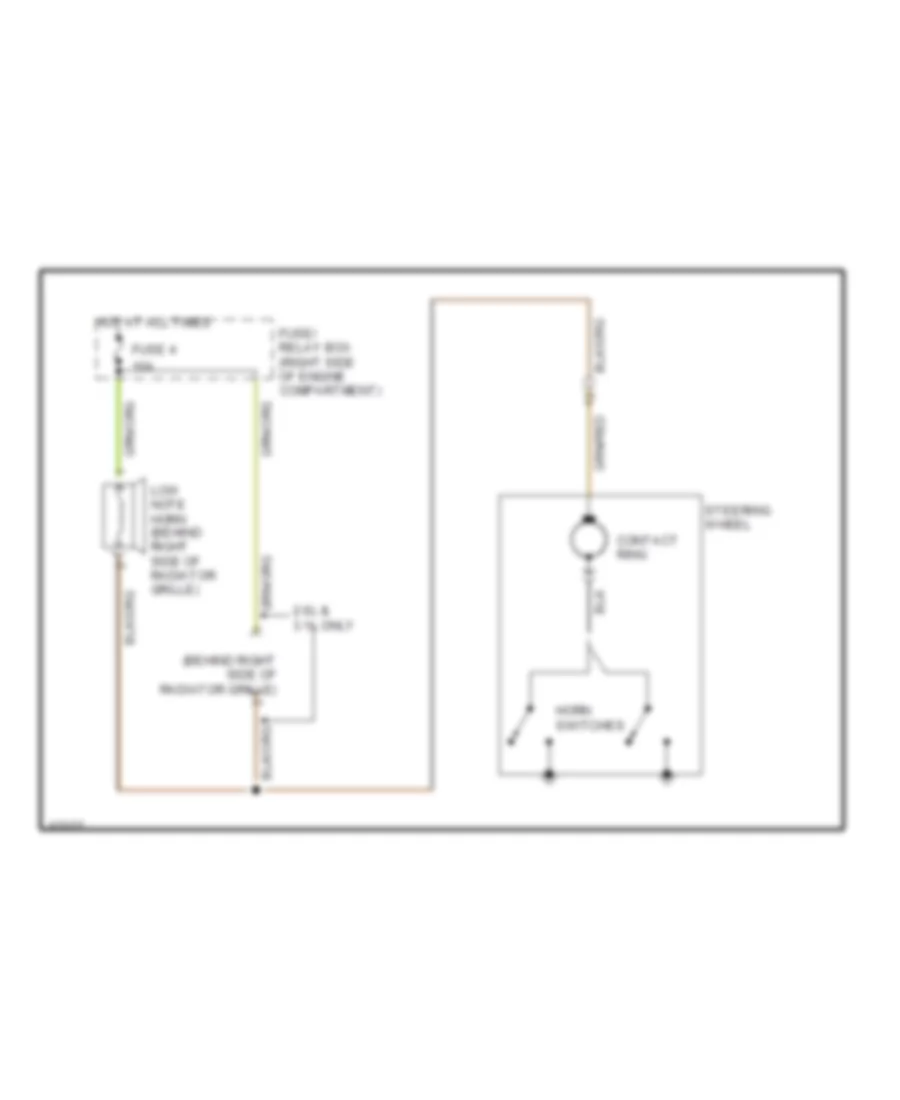

Horn Wiring Diagram for Isuzu Amigo XS 1993

List of elements for Horn Wiring Diagram for Isuzu Amigo XS 1993:

• (behind right side of radiator grille)
• 10a
• 2.6l & 3.1l only
• Contact ring
• Fuse 4
• Fuse/ relay box (right side of engine compartment)
• Horn switches
• Hot at all times
• Low note horn (behind right side of radiator grille)
• Steering wheel
