HORN – Isuzu Pickup 1 Ton 1990 – SYSTEM WIRING DIAGRAMS

    HomeISUZUIsuzu 1990Isuzu Pickup 1 Ton 1990Isuzu Pickup 1 Ton 1990 - ALL WIRING DIAGRAMS

HORN

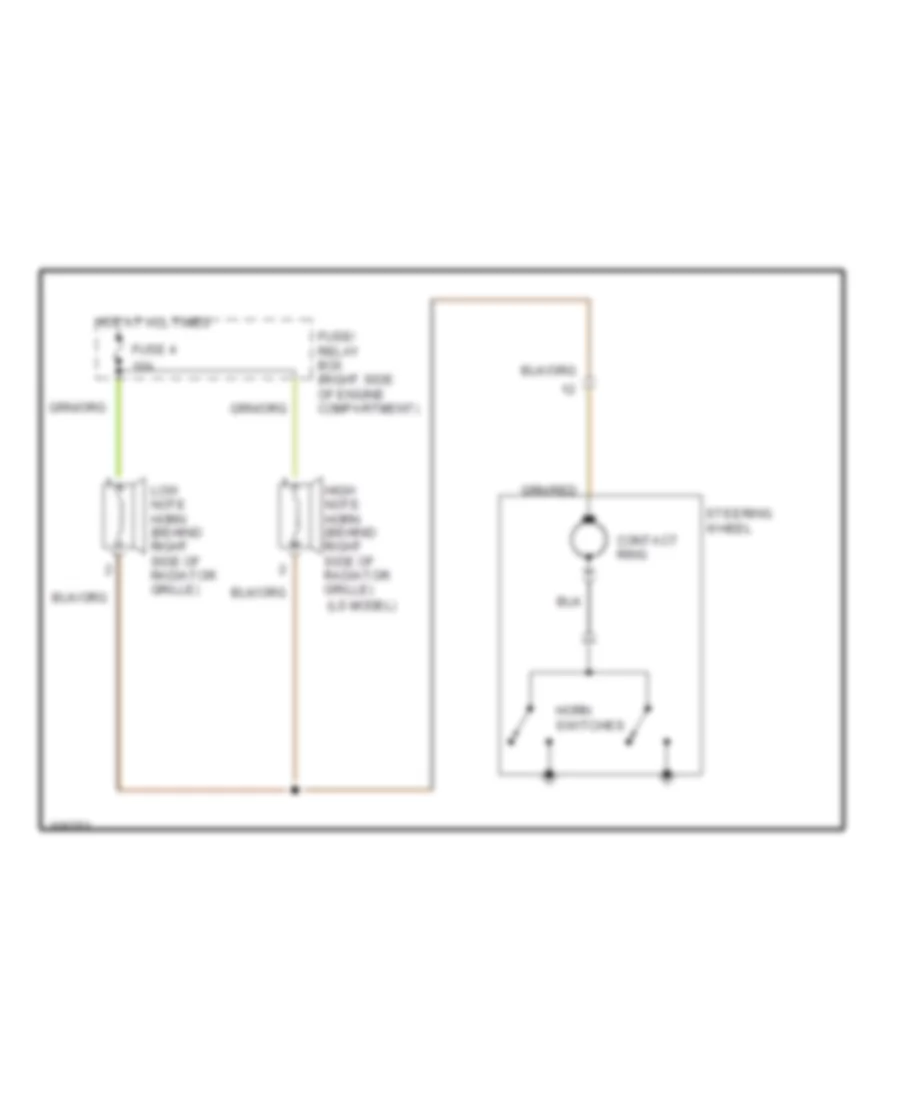

Horn Wiring Diagram for Isuzu Pickup 1 Ton 1990

Horn Wiring Diagram for Isuzu Pickup 1 Ton 1990Unlock Lifetime Access for This Car.

List of elements for Horn Wiring Diagram for Isuzu Pickup 1 Ton 1990:

  • (ls model)
  • 10a
  • Contact ring
  • Fuse 4
  • Fuse/ relay box (right side of engine compartment)
  • High note horn (behind right side of radiator grille)
  • Horn switches
  • Hot at all times
  • Low note horn (behind right side of radiator grille)
  • Steering wheel
