RADIO – Hummer H2 2009 – SYSTEM WIRING DIAGRAMS

RADIO

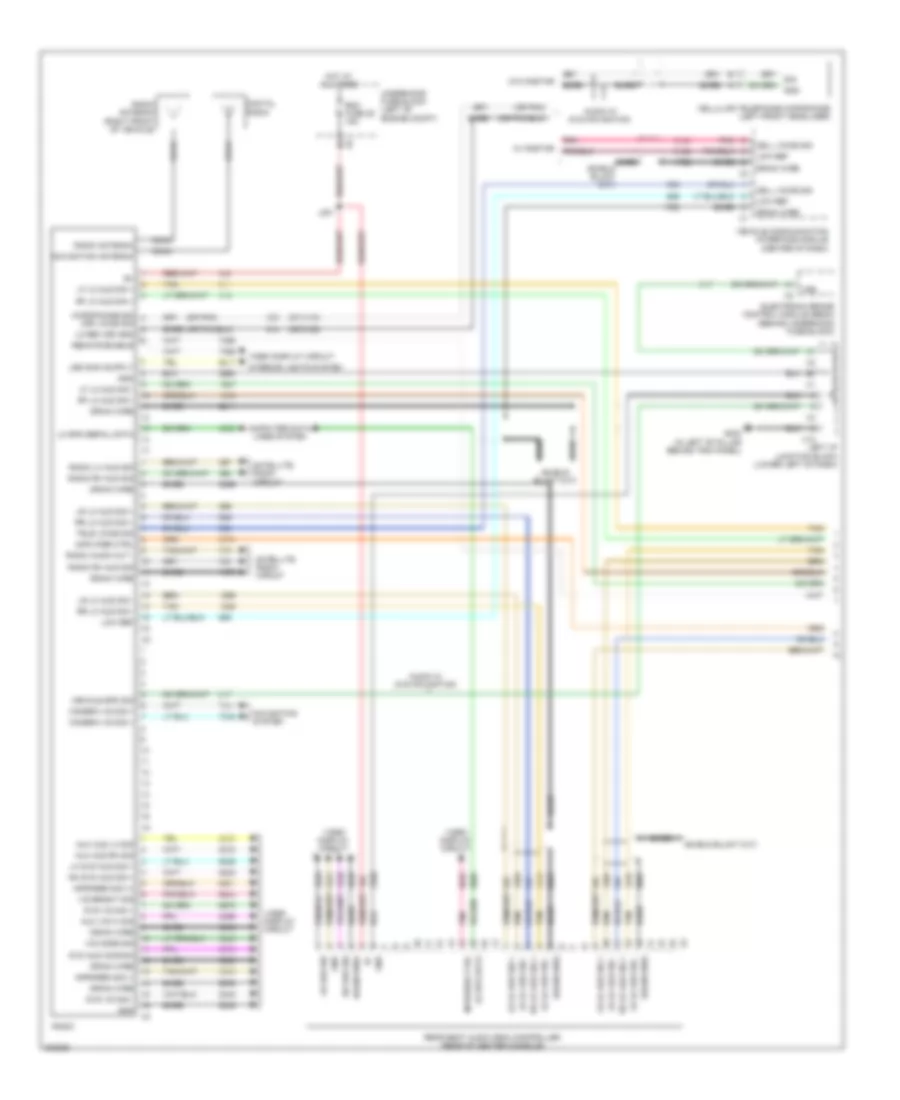

Radio Wiring Diagram, with Surround Amplifier (1 of 2) for Hummer H2 2009

List of elements for Radio Wiring Diagram, with Surround Amplifier (1 of 2) for Hummer H2 2009:

• (or 5149)
• (or 5152)
• (or pnk)
• (or) voice sig
• Aud prompt sig +
• Aud prompt sig -
• Audio w/ dvd navigation
• Aux aud lh sig
• Aux aud rh sig
• Aux vid hi sig
• Bare
• Camera vid sig +
• Cell voice sig
• Cellular telephone microphone (left front headliner)
• Coax
• Computer data lines system
• Digital radio
• Drain wire
• Dvd aud common
• Dvd vid sig +
• Dvd vid sig -
• Electronic brake control module (ebcm) (behind underhood fuse block)
• G302 (in left "b" pillar behind trim panel)
• Gnd
• Gnd (or) lo ref
• Hot at all times
• Infrared ctrl
• Infrared sig (+)
• Infrared sig (-)
• Interior lights system
• J201
• Left i/p junction block (lower left of dash)
• Lf lo aud sig +
• Lf lo aud sig -
• Lh aud sig
• Lh dvd aud sig +
• Lo level aud +
• Lo level aud -
• Lo spd data
• Lo spd serial data
• Low ref
• Lr lo aud sig +
• Lr lo aud sig -
• Microphone sig
• Navigation antenna
• Navigation system
• Pnk
• Radio
• Radio antenna
• Radio antenna (right front of vehicle)
• Radio audio out -
• Radio lh aud sig
• Radio rh aud sig
• Rdo fuse 36 15a
• Rear seat audio (rsa) controller (rear of center console)
• Rf lo aud sig +
• Rf lo aud sig -
• Rh aud sig
• Rh dvd aud sig +
• Rr lo aud sig +
• Rr lo aud sig -
• Satellite radio circuit
• Sig
• Tan
• Tele voice sig
• Underhood fuse block (left of engine compt)
• Veh sig
• Vehicle communication interface module (center of dash)
• Vehicle spd sig
• Vid bright sig
• Vid mode sig
• Video display circuit
• W/ onstar
• W/o onstar
• Woofer lo aud +
• Woofer lo aud -
• X12

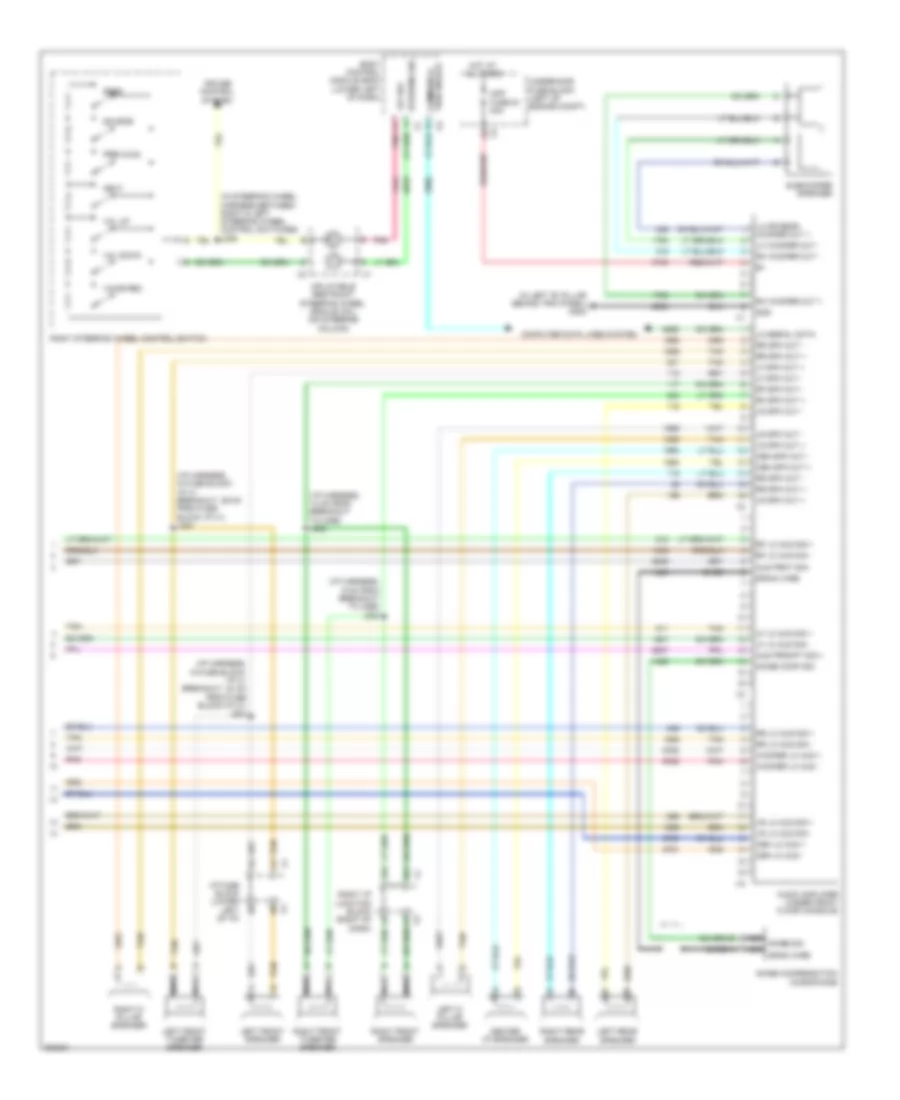

Radio Wiring Diagram, with Surround Amplifier (2 of 2) for Hummer H2 2009

List of elements for Radio Wiring Diagram, with Surround Amplifier (2 of 2) for Hummer H2 2009:

• (i/p harness, 14 cm from breakout to x298) j232
• (i/p harness, 9 cm from breakout to x298) j233
• (i/p harness, in fuse block- i/p x1 breakout, 24 cm from fuse block-i/p x1) j204
• (i/p harness, in fuse block- i/p x1 breakout, 29 cm from fuse block i/p x1) j203
• (in left "b" pillar behind trim panel) g302
• (in steering wheel harness between right & left steering wheel control switches) j235
• 12v ref
• 3a1
• 3a2
• A bare
• Amp fuse 35 30a
• Aud prmt sig -
• Aud prompt sig +
• Audio amplifier (under front floor console)
• Bare
• Body control module (bcm) (lower left of dash)
• Cen lo aud +
• Cen lo aud -
• Cen spk out +
• Cen spk out -
• Center i/p speaker
• Computer data lines system
• Cruise control system
• Drain wire
• Gnd
• Hot at all times
• I/p fuse block (lower left of i/p)
• Inflatable restraint steering wheel module coil (on steering column)
• Left d pillar speaker
• Left front speaker
• Left front tweeter speaker
• Left rear speaker
• Lf lo aud sig +
• Lf lo aud sig -
• Lf spk out +
• Lf spk out -
• Lh or rear woofer out +
• Lh woofer out -
• Lo serial data
• Lr lo aud sig +
• Lr lo aud sig -
• Lr spk out +
• Lr spk out -
• Nca
• Nca noise sig nca drain wire
• Next
• Noise comp sig
• Noise compensation microphone
• Pnk
• Rf lo aud sig +
• Rf lo aud sig -
• Rf spk out +
• Rf spk out -
• Rh woofer out +
• Rh woofer out -
• Right d pillar speaker
• Right front speaker
• Right front tweeter speaker
• Right i/p junction block (right of dash)
• Right rear speaker
• Right steering wheel control switch
• Rr lo aud sig +
• Rr lo aud sig -
• Rr spk out +
• Rr spk out -
• Seek
• Source
• Steering sig
• Subwoofer speaker
• Tan
• Tion enable communica-
• Underhood fuse block (left of engine compt)
• Voice rec
• Vol down
• Vol up
• Woofer lo aud +
• Woofer lo aud -

Radio Wiring Diagram, without Surround Amplifier (1 of 2) for Hummer H2 2009

List of elements for Radio Wiring Diagram, without Surround Amplifier (1 of 2) for Hummer H2 2009:

• (or 5149)
• (or 5152)
• (or pnk)
• (or) voice sig
• Amplifier ctrl
• Audio w/ dvd navigation
• Aux aud lh sig
• Aux aud rh sig
• Aux vid hi sig
• Bare
• Camera vid sig +
• Cell voice sig
• Cellular telephone microphone (left front headliner)
• Coax
• Computer data lines system
• Digital radio
• Drain wire
• Dvd aud common
• Dvd vid sig +
• Dvd vid sig -
• Electronic brake control module (ebcm) (behind underhood fuse block)
• G302 (in left "b" pillar behind trim panel)
• Gnd
• Hot at all times
• Infrared ctrl
• Infrared sig (+)
• Infrared sig (-)
• Interior lights system
• J201
• Left i/p junction block (lower left of dash)
• Lf lo aud sig +
• Lf lo aud sig -
• Lh aud sig
• Lh dvd aud sig +
• Lo ref (or) gnd
• Lo spd data
• Lo spd serial data
• Low ref
• Lr lo aud sig +
• Lr lo aud sig -
• Microphone sig
• Navigation antenna
• Navigation system
• Pnk
• Radio
• Radio antenna
• Radio antenna (right front of vehicle)
• Radio audio out -
• Radio lh aud sig
• Radio rh aud sig
• Rdo fuse 36 15a
• Rear seat audio (rsa) controller (rear of center console)
• Remote enable
• Rf lo aud sig +
• Rf lo aud sig -
• Rh aud sig
• Rh dvd aud sig +
• Rr lo aud sig +
• Rr lo aud sig -
• Satellite radio circuit
• Sig
• Tan
• Tele voice sig
• Underhood fuse block (left of engine compt)
• Vehicle communication interface module (center of dash)
• Vehicle spd sig
• Vid bright sig
• Vid mode sig
• Video display circuit
• Vss
• W/ onstar
• W/o onstar
• X12

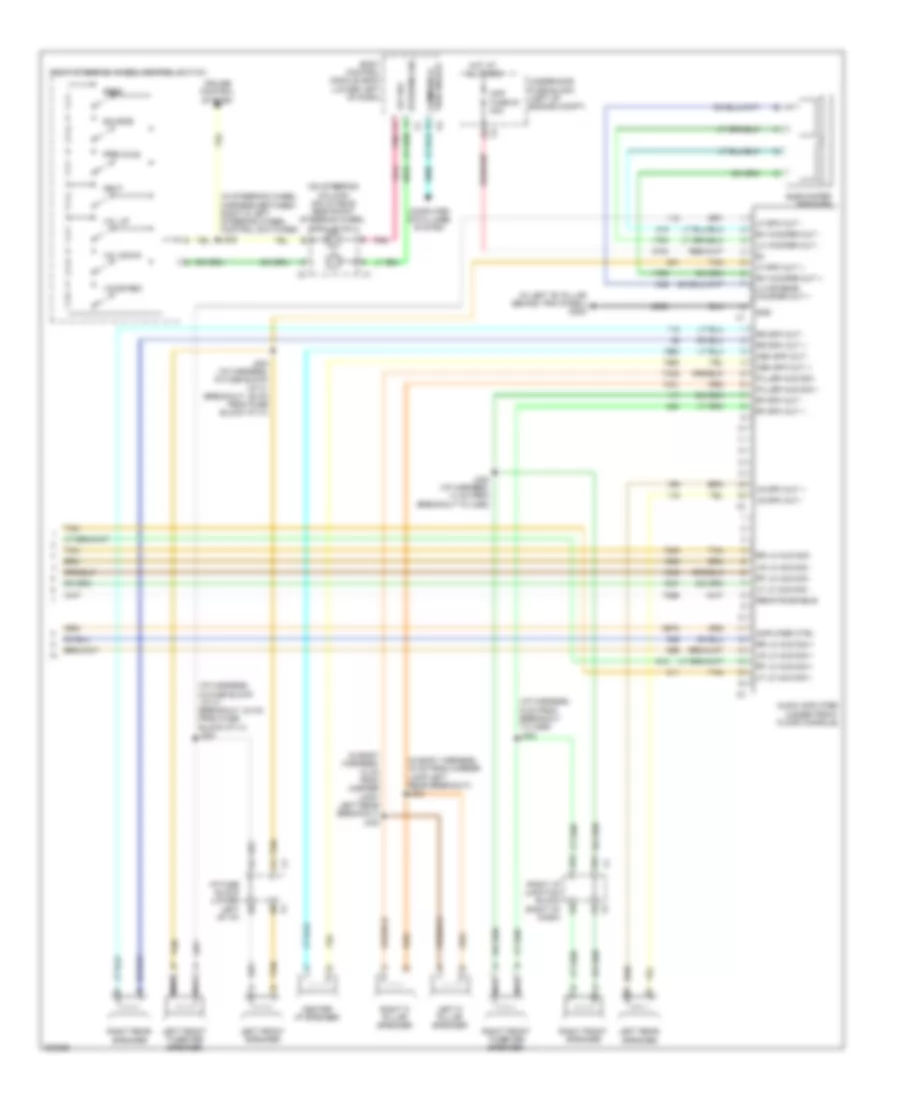

Radio Wiring Diagram, without Surround Amplifier (2 of 2) for Hummer H2 2009

List of elements for Radio Wiring Diagram, without Surround Amplifier (2 of 2) for Hummer H2 2009:

• (i/p harness, 9 cm from breakout to x298) j233
• (i/p harness, in fuse block -i/p x1 breakout, 24 cm from fuse block-i/p x1) j204
• (in body harness, 12 cm from marker lamp- left rear breakout) j332
• (in body harness, 15 cm from marker lamp-left rear breakout) j333
• (in left "b" pillar behind trim panel) g302
• (in steering wheel harness between right & left steering wheel control switches)
• (on steering column) inflatable restraint steering wheel module coil
• 12v ref
• 3a1
• 3a2
• Amp fuse 35 30a
• Amplifier ctrl
• Audio amplifier (under front floor console)
• Body control module (bcm) (lower left of dash)
• Cen spk out +
• Cen spk out -
• Center i/p speaker
• Communica- tion enable
• Computer data lines system
• Cruise control system
• Gnd
• Hot at all times
• I/p fuse block (lower left of i/p)
• J203 (i/p harness, in fuse block -i/p x1 breakout, 29 cm from fuse block i/p x1)
• J232 (i/p harness, 14 cm from breakout to x298)
• J235
• Left d pillar speaker
• Left front speaker
• Left front tweeter speaker
• Left rear speaker
• Lf lo aud sig +
• Lf lo aud sig -
• Lf spk out +
• Lf spk out -
• Lh or rear woofer out +
• Lh woofer out -
• Lr lo aud sig +
• Lr lo aud sig -
• Lr spk out +
• Lr spk out -
• Nca
• Next
• Piller aud sig +
• Piller aud sig -
• Pnk
• Remote enable
• Rf lo aud sig +
• Rf lo aud sig -
• Rf spk out +
• Rf spk out -
• Rh woofer out +
• Rh woofer out -
• Right d pillar speaker
• Right front speaker
• Right front tweeter speaker
• Right i/p junction block (right of dash)
• Right rear speaker
• Right steering wheel control switch
• Rr lo aud sig +
• Rr lo aud sig -
• Rr spk out +
• Rr spk out -
• Seek
• Source
• Steering sig
• Subwoofer speaker
• Tan
• Underhood fuse block (left of engine compt)
• Voice rec
• Vol down
• Vol up

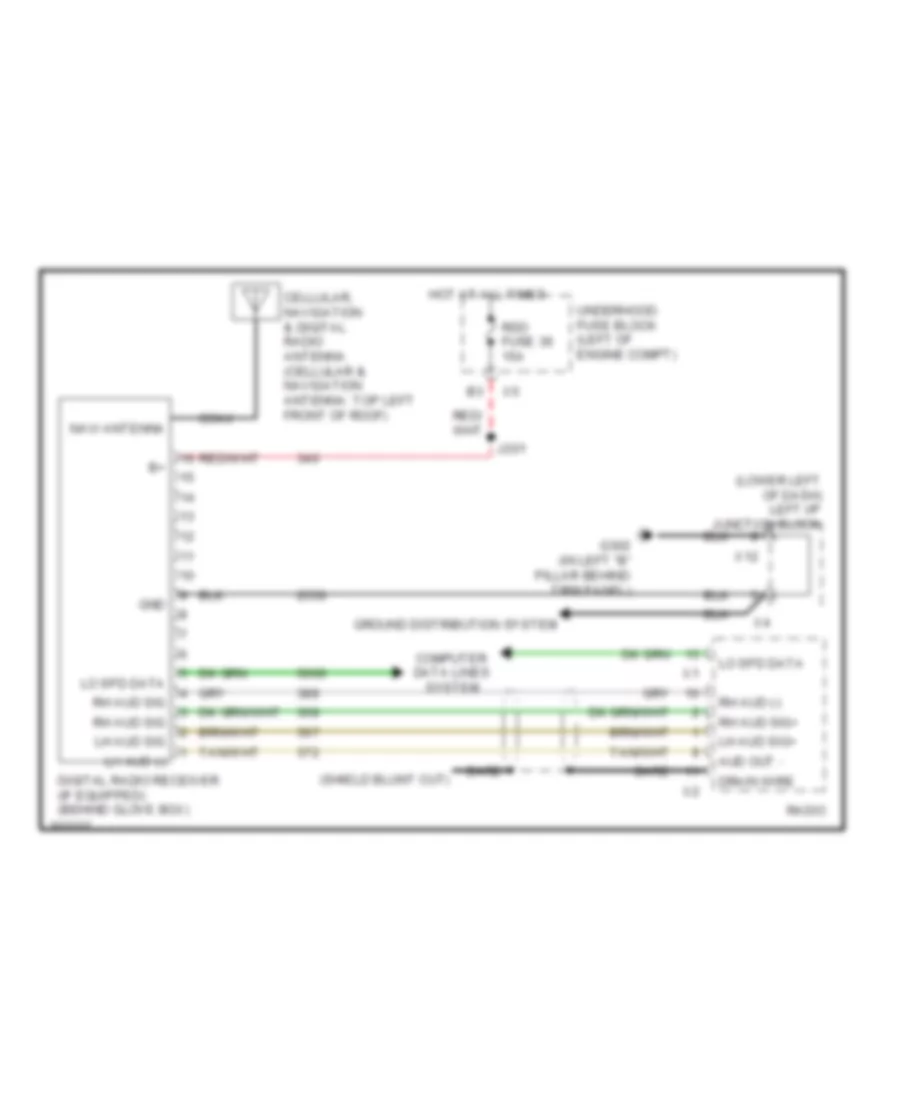

Satellite Radio Wiring Diagram for Hummer H2 2009

List of elements for Satellite Radio Wiring Diagram for Hummer H2 2009:

• (lower left of dash) left i/p junction block
• Aud out -
• Bare
• Cellular, navigation & digital radio antenna (cellular & navigation antenna: top left front of roof)
• Coax
• Computer data lines system
• Digital radio receiver (if equipped) (behind glove box)
• Drain wire
• G302 (in left "b" pillar behind trim panel)
• Gnd
• Ground distribution system
• Hot at all times
• J201
• Lh aud (-)
• Lh aud sig
• Lh aud sig+
• Lo spd data
• Navi antenna
• Radio
• Rdo fuse 36 15a
• Rh aud (-)
• Rh aud sig
• Rh aud sig+
• Underhood fuse block (left of engine compt)
• X12

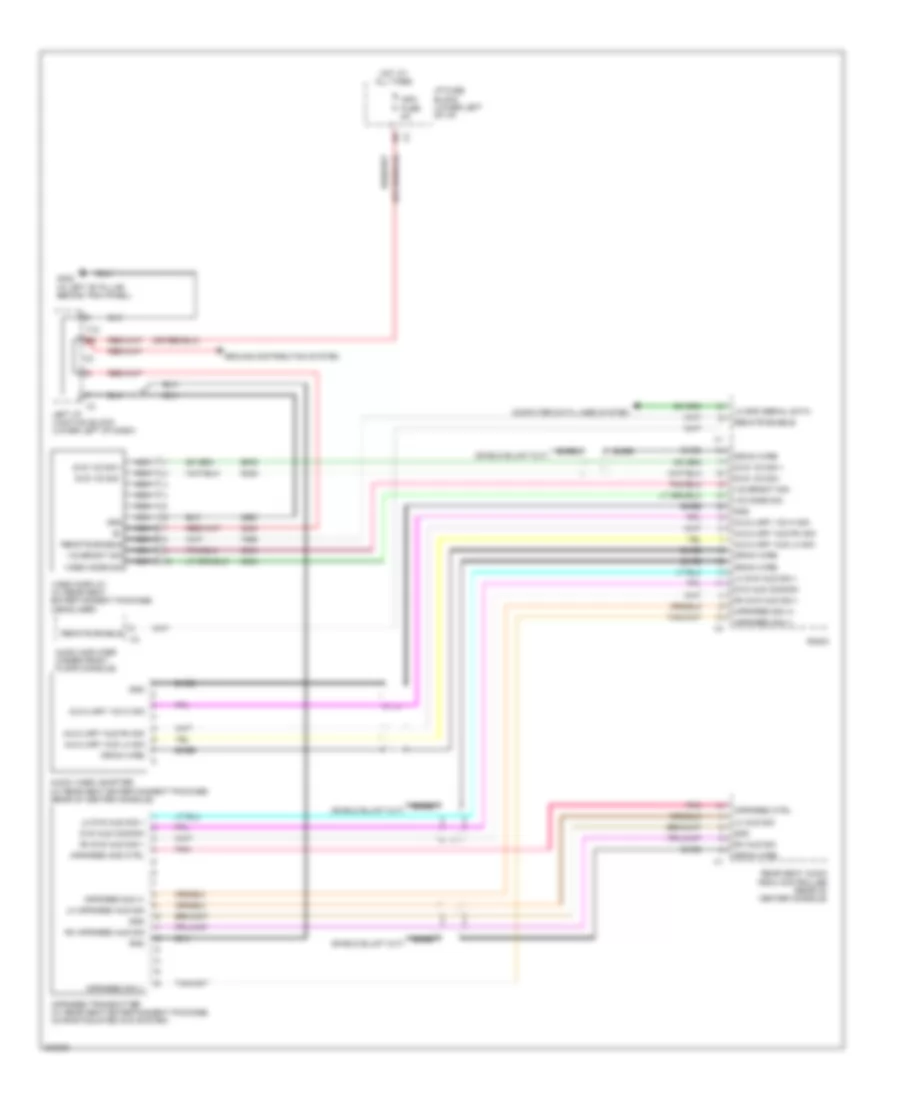

Video Display Wiring Diagram for Hummer H2 2009

List of elements for Video Display Wiring Diagram for Hummer H2 2009:

• Audio amplifier (under front floor console)
• Audio video adapter (w/ rear seat entertainment package) (rear of center console)
• Auxiliary aud lh sig
• Auxiliary aud rh sig
• Auxiliary vid hi sig
• Bare
• Computer data lines system
• Drain wire
• Dvd aud common
• Dvd vid sig +
• Dvd vid sig -
• G302 (in left "b" pillar behind trim panel)
• Gnd
• Ground distribution system
• Hot at all times
• I/p fuse block (lower left of i/p)
• Info fuse 5a
• Infrared ctrl
• Infrared mod ctrl
• Infrared sig (+)
• Infrared sig (-)
• Infrared transmitter (w/ rear seat entertainment package) (in roof-mounted dvd system)
• Left i/p junction block (lower left of dash)
• Lh aud sig
• Lh dvd aud sig +
• Lh infrared aud sig
• Lo spd serial data
• Nca
• Pnk
• Radio
• Rear seat audio (rsa) controller (rear of center console)
• Remote enable
• Rh aud sig
• Rh dvd aud sig +
• Rh infrared aud sig
• Vid bright sig
• Vid mode sig
• Video display (w/ rear seat entertainment package) (headliner)
• Video mode sig
• X12
