SUPPLEMENTAL RESTRAINTS – Hummer H2 2009 – SYSTEM WIRING DIAGRAMS

SUPPLEMENTAL RESTRAINTS

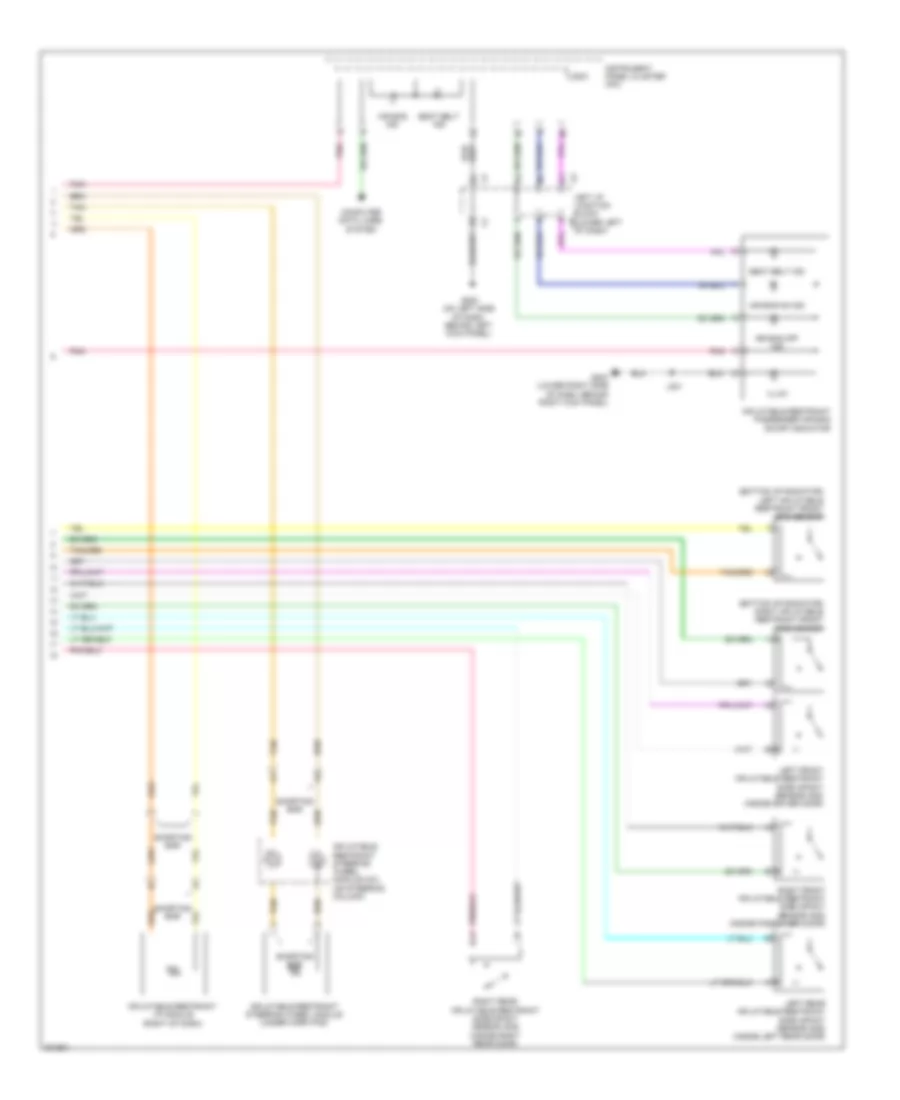

Supplemental Restraints Wiring Diagram (1 of 2) for Hummer H2 2009

List of elements for Supplemental Restraints Wiring Diagram (1 of 2) for Hummer H2 2009:

• (under passenger seat, near x305) g301
• Air bag batt fuse 38 15a
• Air bag ign fuse 34 10a
• Aux- hvac-ign fuse 41 10a
• Computer data lines system
• Discriminating sens sig
• Driver seat belt buckle
• Driver seat belt pretensioner (driver seat belt retractor assembly)
• Driver seat belt switch
• G301 (under passenger seat, near x305)
• Ground
• Hi sig
• Hot at all times
• Hot w/ run/crnk relay energized
• I/p mod disable sw sig
• I/p mod hi ctrl
• I/p mod lo ctrl
• I/p mod supp ind ctrl
• Ign
• Inflatable restraint i/p module disable switch
• Inflatable restraint sensing & diagnostic module (sdm) (left front seat)
• Inflatable restraint vehicle rollover sensor (below center console)
• L impact sensing mod sig
• L roof rail mod hi ctrl
• L roof rail mod lo ctrl
• L seat belt hi ctrl
• L seat belt lo ctrl
• L seat belt sw
• Left front inflatable restraint roof rail module (behind rear of left "c" pillar)
• Left i/p junction block (lower left of dash)
• Left rear inflatable restraint roof rail module (w/ utility rear seat) (above left quarter window)
• Lo ref
• Low reference
• Low speed gmlan
• Lr impact sensing mod sig
• Lr roof rail mod hi ctrl
• Lr roof rail mod lo ctrl
• Nca
• Passenger seat belt pretensioner (passenger seat belt retractor assembly)
• Pin shorting bars engaged when module connector is disconnected from harness (shorting bars are connected between pins: 8-9,10-11,12-13,14-15, 16-17,18-19,20-21 & 22-23)
• Pnk
• Pnk a
• Pnk b
• R discriminating sens sig
• R impact sensing mod sig
• R roof rail mod hi ctrl
• R roof rail mod lo ctrl
• R seat belt hi ctrl
• R seat belt lo ctrl
• Right front inflatable restraint roof rail module (rear of right "c" pillar)
• Right rear inflatable restraint roof rail module (w/ utility rear seat) (above right quarter window)
• Roll over sens hi sig
• Rr impact sensing mod sig
• Rr roof rail mod hi ctrl
• Rr roof rail mod lo ctrl
• Shorting bar
• Srial data
• Str whl mod hi ctrl
• Str whl mod lo ctrl
• Tan
• Underhood fuse block (left of engine compt)
• X11

Supplemental Restraints Wiring Diagram (2 of 2) for Hummer H2 2009

List of elements for Supplemental Restraints Wiring Diagram (2 of 2) for Hummer H2 2009:

• (bottom of radiator) left inflatable restraint front end sensor
• (bottom of radiator) right inflatable restraint front end sensor
• Air bag ind
• Air bag off ind
• Air bag on ind
• Computer data lines system
• G200 (on left side of dash, behind left kick panel)
• G203 (lower right side of dash, behind right kick panel)
• Illum
• Inflatable restraint i/p module (right of dash)
• Inflatable restraint passenger air bag on/off indicator
• Inflatable restraint steering wheel module (under horn pad)
• Inflatable restraint steering wheel module coil (on steering column)
• Instrument panel cluster (ipc)
• J321
• Left front inflatable restraint side impact sensor (sis) (inside driver door)
• Left i/p junction block (lower left of dash)
• Left rear inflatable restraint side impact sensor (sis) (inside left rear door)
• Logic
• Pnk
• Right front inflatable restraint side impact sensor (sis) (inside passenger door)
• Right rear inflatable restraint side impact sensor (sis) (inside right rear door)
• Seat belt ind
• Shorting bar
• Tan
