WARNING SYSTEMS – Hummer H2 2009 – SYSTEM WIRING DIAGRAMS

WARNING SYSTEMS

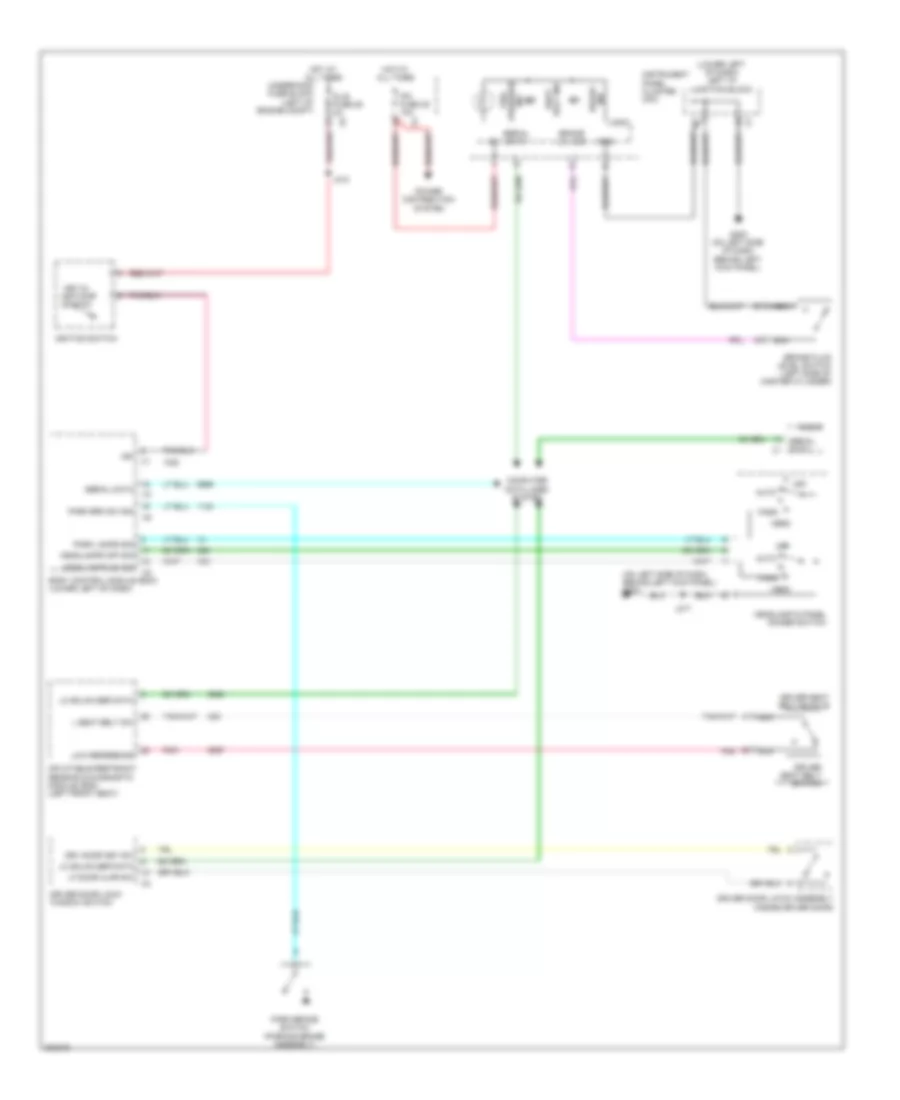

Warning Systems Wiring Diagram for Hummer H2 2009

List of elements for Warning Systems Wiring Diagram for Hummer H2 2009:

• (lower left of dash) left i/p junction block
• (on left side of dash, behind left kick panel) g200
• Auto
• Body control module (bcm) (lower left of dash)
• Brake fluid level switch (left side of master cylinder)
• Brake lvl sig
• Computer data lines system
• Dlis fuse 29 2a
• Driver door latch assembly (inside driver door)
• Driver door lock/ window switch
• Driver seat belt buckle
• Driver seat belt switch
• Drv door key sw
• G200 (on left side of dash, behind left kick panel)
• Gnd
• Head
• Headlamp & panel dimmer switch
• Headlamps off sig
• Headlamps on sig
• Hot at all times
• Ign
• Ignition switch
• Ind brake
• Inflatable restraint sensing & diagnostic module (sdm) (left front seat)
• Instrument panel cluster (ipc)
• Ipc fuse 39 10a
• J212
• J217
• Key-in ignition switch
• L seat belt sw
• Lf door ajar sw
• Lo gmlan ser data
• Logic
• Low reference
• Nca
• Off
• Park
• Park brake switch (parking brake assembly)
• Park brk sw sig
• Park lamps sig
• Pnk
• Power distribution system
• Radio
• Seat belt ind
• Serial data
• Serial data x1
• Tire pressure ind
• Underhood fuse block (left of engine compt)
