Электросхемы ПРИВОД СТЕКЛОПОДЪЕМНИКОВ Isuzu i-290 LS 2007

ПРИВОД СТЕКЛОПОДЪЕМНИКОВ

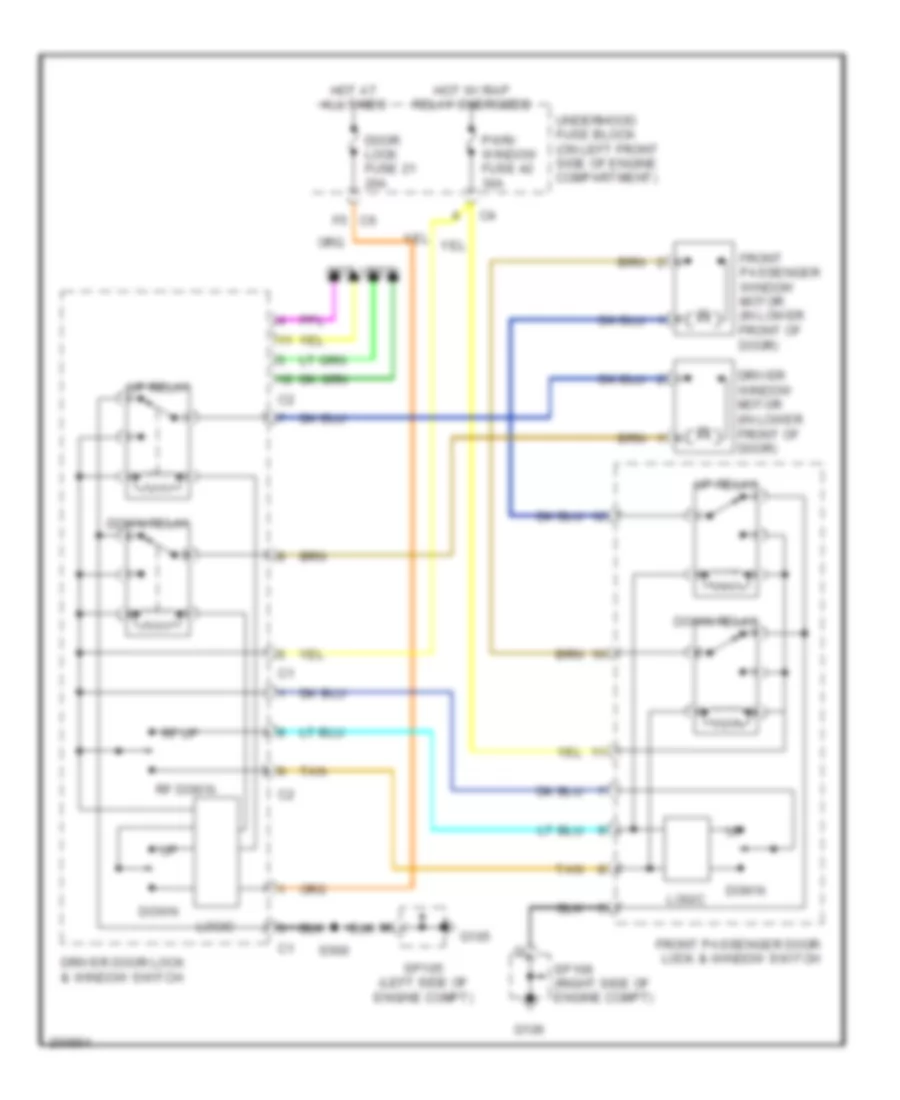

Электросхема стеклоподъемников для Isuzu i-290 LS 2007

Электросхема стеклоподъемников для Isuzu i-290 LS 2007 - Список элементов:

23

• (not used)
• C6 f5
• Door lock fuse 21 20a
• Down
• Down relay
• Driver door lock & window switch
• Driver window motor (in lower front of door)
• Front passenger door lock & window switch
• Front passenger window motor (in lower front of door)
• G105
• G106
• Hot at all times
• Hot w/ rap relay energized
• Logic
• Pwr/ window fuse 42 30a
• Rf down
• Rf up
• S500
• Sp105 (left side of engine compt)
• Sp106 (right side of engine compt)
• Tan
• Underhood fuse block (on left front side of engine compartment)
• Up relay
