Электросхемы СИСТЕМА КРУИЗКОНТРОЛЯ Hyundai Elantra GT 2013

СИСТЕМА КРУИЗКОНТРОЛЯ

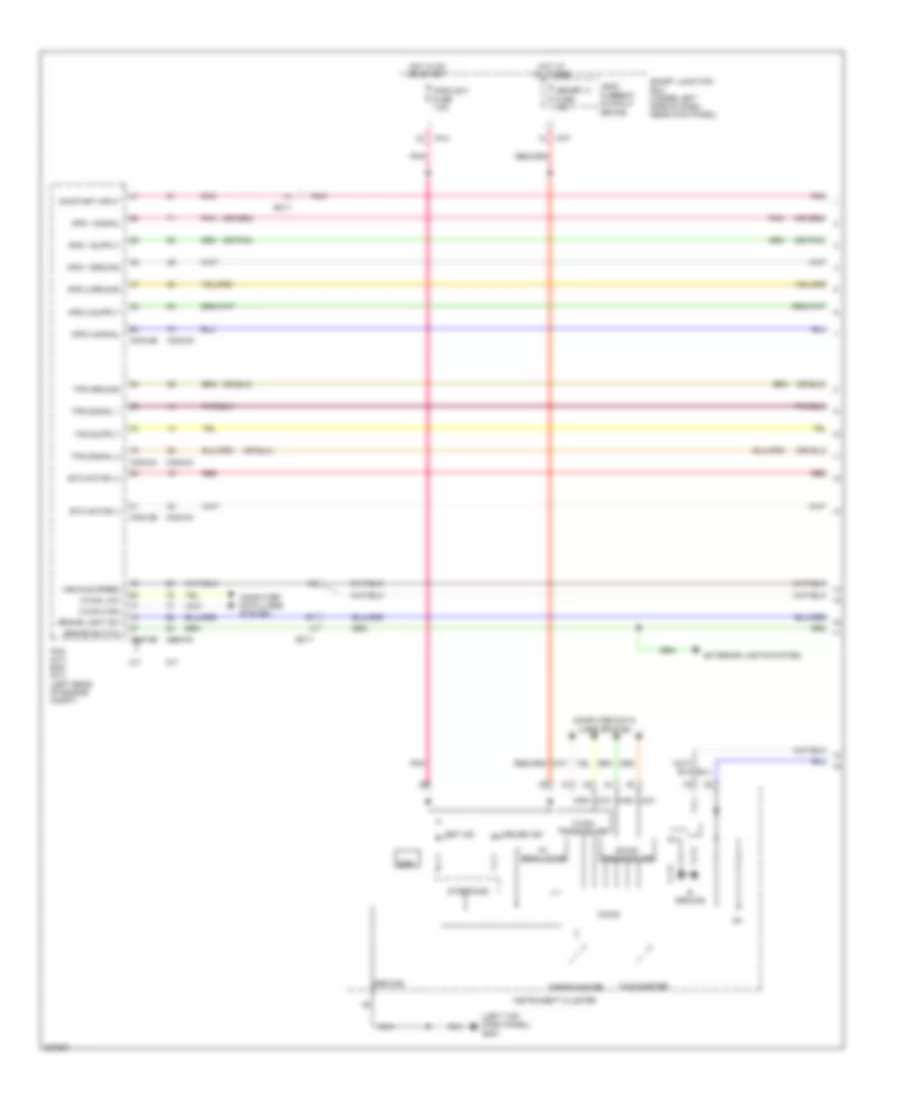

Электросхема системы круизконтроля (1 из 3) для Hyundai Elantra GT 2013

Электросхема системы круизконтроля (1 из 3) для Hyundai Elantra GT 2013 - Список элементов:

(left top dash panel) gm01
(or pnk)
5v regulator
A/t
Aps 1 ground
Aps 1 signal
Aps 2 ground
Aps 2 signal
B-can transceiver
Brake light sw
Brake switch
C-can high
C-can low
C-can transceiver
Cng-aa
Cng-ab
Cng-ma
Cng-mk
Computer data lines system
Cruise ind
Ec11
Etc motor (+)
Etc motor (-)
Exterior lights system
Ground
High
Hot at all times
Hot in on or start
I/p-f
I/p-h
Ig+
Ig/b+
Instrument cluster
Interface
Leak current autocut device
Low
M/t
Memory 2 fuse 10a
Micom
Module 3 fuse 7.5a
On/start input
Pcm (a/t) ecm (m/t) (left rear of engine compt)
Pnk
Red
S- ground
Set ind
Smart junction box (under left side of dash, near kick panel)
Speedometer
Tachometer
Tps ground
Tps signal 1
Tps signal 2
Vehicle speed

Электросхема системы круизконтроля (2 из 3) для Hyundai Elantra GT 2013

Электросхема системы круизконтроля (2 из 3) для Hyundai Elantra GT 2013 - Список элементов:

(or pnk)
(right rear of engine compt) esc module
Brake switch fuse 10a
C-can high
C-can low
Closed w/ brake pedal depressed
Computer data lines system
E/r fuse & relay box (in left rear corner of engine compt)
Ecu 3 fuse 10a
Ef11
Em11
Em61
Esc unit
Fl sig
Fl vcc
Fr sig
Fr vcc
Hot at all times
Hot in on or start
Left front wheel speed sensor (left front wheel hub assembly)
Left rear wheel speed sensor (left rear wheel hub assembly)
Nca
Open w/ brake pedal depressed
Pnk
Red
Right front wheel speed sensor (right front wheel hub assembly)
Right rear wheel speed sensor (right rear wheel hub assembly)
Rl sig
Rl vcc
Rr sig
Rr vcc
Stop lamp relay (top left side of dash)
Stop lamp switch (on brake pedal bracket)

Электросхема системы круизконтроля (3 из 3) для Hyundai Elantra GT 2013

Электросхема системы круизконтроля (3 из 3) для Hyundai Elantra GT 2013 - Список элементов:

(accelerator pedal bracket) accelerator pedal position sensor
(or pnk)
+ hall ic
A/t
A/v & navigation head unit
Audio
Data link connector (below left side of dash)
E/r fuse & relay box (in left rear corner of engine compt)
Ec11
Ecu 3 fuse 10a
Electronic throttle control motor & throttle position sensor (etc motor: rear of engine, on throttle body)
Em61
Etc motor
Gng01
Hot at all times
Hot in on or start
J/c jm04 (top left side of dash)
M/t
M09-b
M13-b
M15-b
Mr11
Pnk
Red
Smart key control module (right rear of dash)
Sunroof (under headliner)
Tcu 1 fuse 15a
Throttle position sensor
Vehicle speed sensor (m/t) (on top of transaxle)
W/ navigation
W/o navigation
