AIR CONDITIONING – Dodge Caliber SXT 2008 – SYSTEM WIRING DIAGRAMS

AIR CONDITIONING

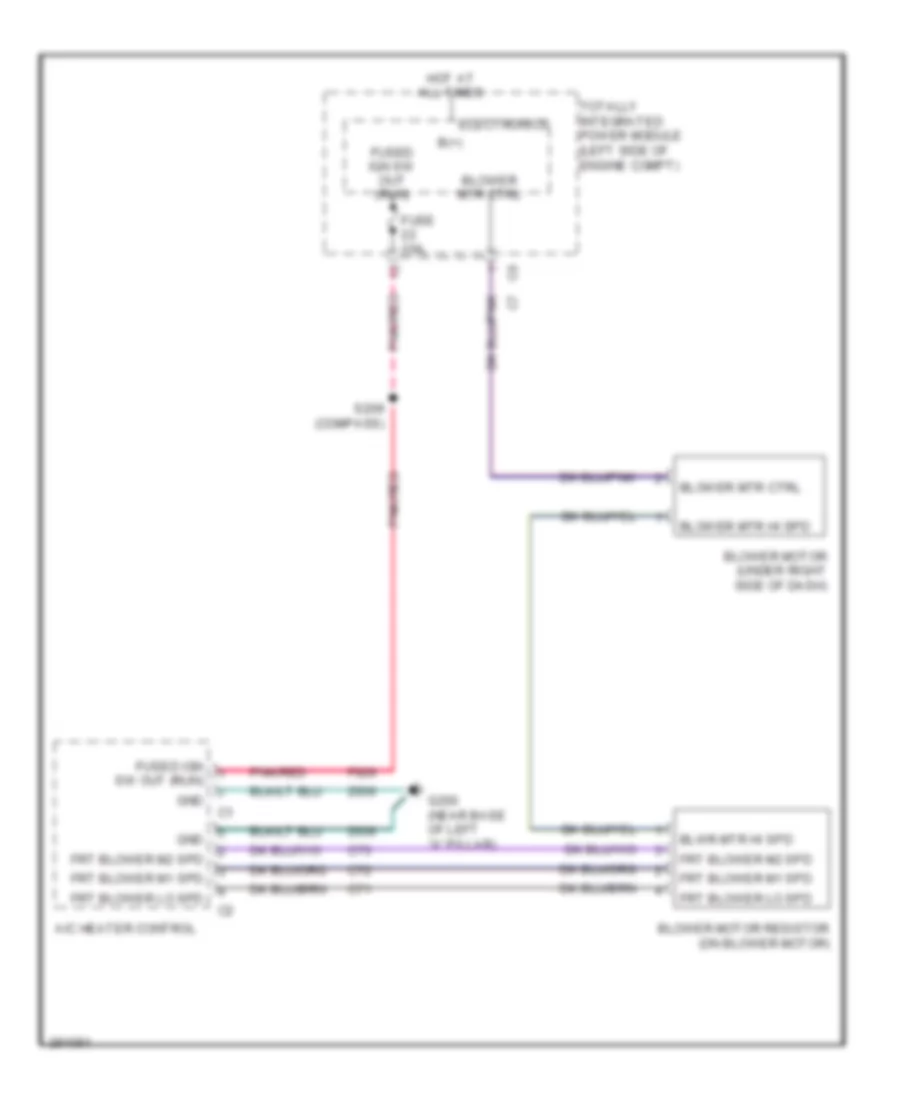

Heater Wiring Diagram for Dodge Caliber SXT 2008

List of elements for Heater Wiring Diagram for Dodge Caliber SXT 2008:

• A/c heater control
• B(+)
• Blower motor (under right side of dash)
• Blower motor resistor (on blower motor)
• Blower mtr ctrl
• Blower mtr hi spd
• Blwr mtr hi spd
• C71
• C72
• C73
• Electronics
• F929
• Frt blower lo spd
• Frt blower m1 spd
• Frt blower m2 spd
• Fuse 10a
• Fused ign sw out (run)
• G200 (near base of left "a" pillar)
• Gnd
• Hot at all times
• Pnk/red
• S209 (compass)
• Totally integrated power module (left side of engine compt)
• Z936

Manual A/C Wiring Diagram (1 of 2) for Dodge Caliber SXT 2008

List of elements for Manual A/C Wiring Diagram (1 of 2) for Dodge Caliber SXT 2008:

• (right front corner of engine compt) a/c pressure transducer
• (upper left front of engine compt) g111
• A/c heater control
• A/c indicator drv
• A/c pressure
• A/c pressure sens gnd
• A/c pressure sens signal
• Aat return
• Aat signal
• Ambient air temperature sensor (left front of engine compt)
• B(+)
• Blower motor (under right side of dash)
• Blower motor resistor (on blower motor)
• Blower mtr ctrl
• Blower mtr hi speed
• C105
• C132
• C18
• C215
• C32
• C71
• C72
• C73
• C818
• C918
• C955
• Can b bus (+)
• Can b bus (-)
• Cluster
• Computer data lines system
• Defogg sw sig
• Driver a
• Driver b
• E12
• Electronics
• Engine coolant temperature sensor 1 (rear of cylinder head)
• Engine coolant temperature sensor 2 (turbo: rear of cylinder head) (except turbo: left side of engine)
• Evap temp sens sig
• Evaporator temperature sensor (behind left center of dash)
• F929
• Fr blower lo speed
• Frt blower low speed
• Frt blower m1 speed
• Frt blower m2 speed
• Fuse 10a
• Fused ign sw out (run)
• G200 (near base of left "a" pillar)
• G31
• G931
• Gnd
• Hot at all times
• Hvac mux ctrl
• Hvac mux return
• Interior lights system
• Low/hi rad fan rly out
• N210
• N23
• N24
• Panel lamps drv
• Pnk/red
• Rad fan rly feed
• Rad fan rly out
• Radiator cooling fan module (on left/right cooling fan motor)
• Recirculation door actuator (right side of hvac unit)
• Recirculation door drv a
• Recirculation door drv b
• S209 (compass)
• Sens gnd
• Sensor ground
• Sensor signal
• Series/parallel
• Totally integrated power module (left side of engine compt)
• Z904
• Z936

Manual A/C Wiring Diagram (2 of 2) for Dodge Caliber SXT 2008

List of elements for Manual A/C Wiring Diagram (2 of 2) for Dodge Caliber SXT 2008:

• (left front corner of engine compt) fuse/relay block
• (left front of engine compt, near impact sensor breakout) s026
• (left front of engine compt, near impact sensor breakout) s033
• (left side of engine) s106
• (left side of engine) s107
• 2.4l turbo
• 87a
• A/c compressor ctrl
• A/c compressor solenoid (left front of engine)
• B(+)
• C11
• C27
• Ect 1 sig
• Ect 2 sig
• Electronics
• Engine controls system
• Except 2.4l turbo
• Fuse 10a
• Fuse 30a
• Fuse 40a
• G110 (right front of engine compt)
• G111 (upper left front of engine compt)
• Hot at all times
• K222
• K51
• K547
• K900
• K915
• Low/hi rad fan rly ctrl
• Main relay
• Main rly ctrl
• N112
• N201
• Powertrain control module (left rear of engine compt)
• Rad fan rly ctrl
• Radiator fan low/high relay
• Radiator fan medium/high relay
• Radiator fan series/ parallel relay
• S024
• S101
• S108
• Sens gnd
• Totally integrated power module (left side of engine compt)
• Turbo coolant pump ctrl
• Turbo coolant pump motor (right rear of engine)
• Turbo coolant pump relay (2.4l turbo)
