AIR CONDITIONING – Dodge Durango 1998 – SYSTEM WIRING DIAGRAMS

AIR CONDITIONING

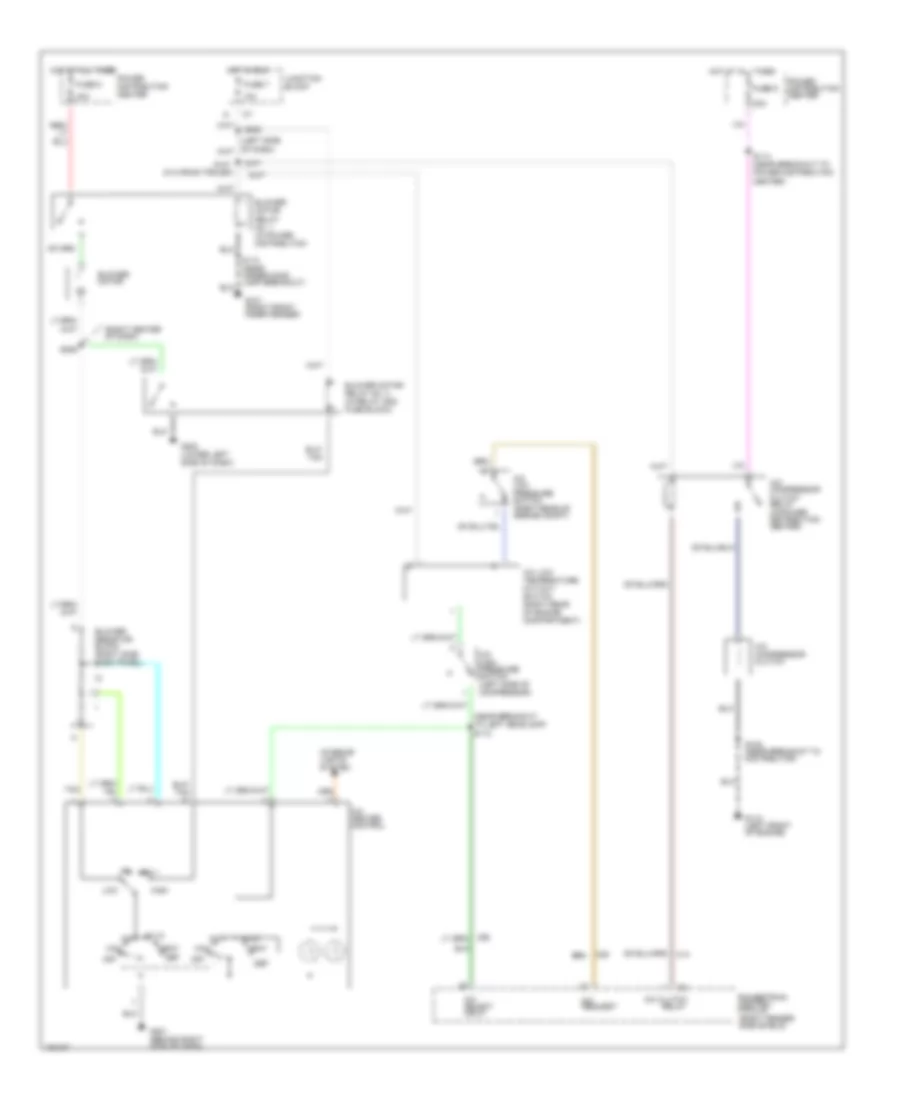

A/C Wiring Diagram for Dodge Durango 1998

AC Wiring Diagram for Dodge Durango 1998 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for A/C Wiring Diagram for Dodge Durango 1998:

  • (near breakout to left headlamp) s112
  • (right center of dash)
  • (right fender side shield)
  • 10a
  • 20a
  • 40a
  • A/c
  • A/c clutch
  • A/c compressor clutch
  • A/c compressor clutch relay (in power distribution center)
  • A/c heater control
  • A/c high pressure switch (left side of compressor)
  • A/c low pressure switch (right rear of engine compt)
  • A/c low temperature cut-out switch (right rear of engine compartment)
  • A/c request
  • A/c select input
  • Blower motor
  • Blower motor relay no. 1 (in power distribution
  • Blower motor relay no. 2 (in relay and fuse block)
  • Blower resistor block (right side dash panel)
  • C13
  • C20
  • C90
  • Def
  • Fuse 5
  • Fuse 7
  • Fuse d
  • G101 (right front inner fender)
  • G110 (left front of engine)
  • G201 (behind right side of dash)
  • G202 (lower left side of dash)
  • Heat
  • Hi/lo
  • High
  • Hot at all times
  • Hot in run
  • Interior lights system
  • Junction block
  • Low
  • Max
  • Off
  • Power distribution center
  • Powertrain control module
  • Relay
  • S108 (near breakout to distributor)
  • S113 (near under-hood lamp breakout)
  • S114 (near breakout to power distribution center)
  • S121 (in wiring trough)
  • S206
  • S228
  • Tan

Heater Wiring Diagram for Dodge Durango 1998

Heater Wiring Diagram for Dodge Durango 1998 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Heater Wiring Diagram for Dodge Durango 1998:

  • low
  • (left side of dash)
  • (right center of dash)
  • 10a
  • 40a
  • Blower motor
  • Blower motor relay no. 1 (in power distribution center)
  • Blower motor relay no. 2 (in relay and fuse block)
  • Blower resistor block (right side dash panel)
  • Def
  • Fuse 5
  • Fuse 7
  • G101 (right front inner fender)
  • G201 (behind right side of dash)
  • G202 (lower left of dash)
  • Heat
  • Heater control
  • High
  • High/low
  • Hot at all times
  • Hot in run
  • Interior lights system
  • Junction block
  • Off
  • Power distribution center
  • S113 (near under-hood lamp breakout)
  • S206
  • S228
  • Tan

Rear Blower Motor Wiring Diagram for Dodge Durango 1998

Rear Blower Motor Wiring Diagram for Dodge Durango 1998 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Rear Blower Motor Wiring Diagram for Dodge Durango 1998:

  • Fuse c 5a
  • G404 (left rear body)
  • Hot in run
  • Interior lights system
  • Med
  • Off
  • Overhead a/c blower
  • Overhead a/c control
  • Overhead a/c resistor block
  • Relay and fuse block
