Электросхемы БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ Dodge Ram Wagon B1500 1999

БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ

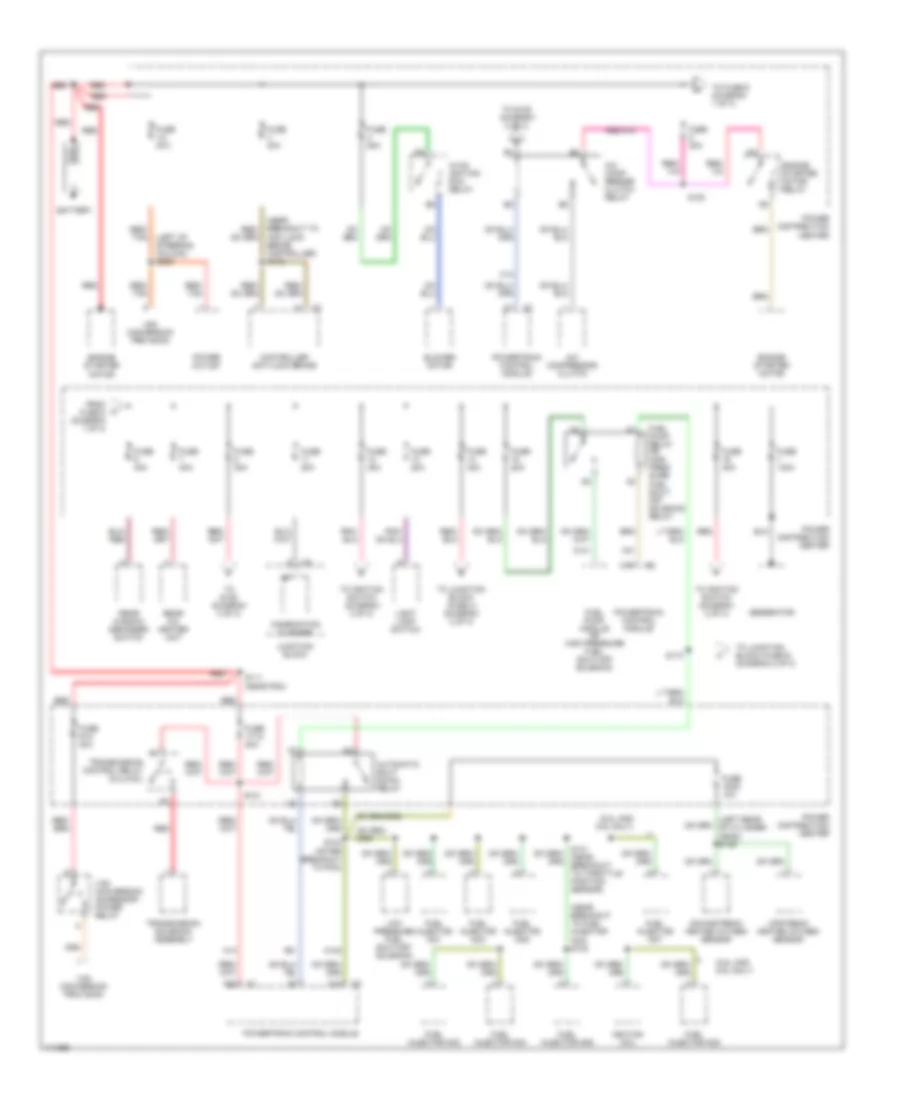

Электросхема блока предохранителей и реле (1 из 3) для Dodge Ram Wagon B1500 1999

Электросхема блока предохранителей и реле (1 из 3) для Dodge Ram Wagon B1500 1999Download PDF file

Электросхема блока предохранителей и реле (1 из 3) для Dodge Ram Wagon B1500 1999 - Список элементов:

  • (5.2l and 5.9l only)
  • (left of steering column) s209
  • (left rear of cylinder head) s135
  • (near breakout to anti-lock brake controller) s118
  • (near breakout to fuel injector no4) s130
  • A/c comp- ressor clutch relay
  • A/c compressor clutch
  • A14
  • A141
  • A142
  • A22
  • Automatic shut down relay
  • Battery
  • Blower motor
  • C12
  • C13
  • C19
  • Combination flasher
  • Controller anti-lock brake
  • Downstream heated oxygen sensor
  • Engine starter motor
  • Engine starter motor relay
  • From fuse 5 (diagram 1 of 3)
  • Fuel injector no1
  • Fuel injector no2
  • Fuel injector no3
  • Fuel injector no4
  • Fuel injector no5
  • Fuel injector no6
  • Fuel injector no7
  • Fuel injector no8
  • Fuel pump module or high pressure fuel shut-off solenoid
  • Fuel pump relay or high pres- sure fuel shut- off solenoid relay
  • Fuse 1/2 30a
  • Fuse 140a
  • Fuse 17/18 20a
  • Fuse 19/20 10a
  • Fuse 20a
  • Fuse 30a
  • Fuse 40a
  • Fuse 50a
  • Fuse 9/10 40a
  • Generator
  • Hvac ignition run relay
  • Ignition coil
  • Junction block
  • K31
  • K51
  • Light lamp switch
  • Low pressure fuel shut-off solenoid
  • Power distribution center
  • Power outlet
  • Powertrain control module
  • Rear a/c heater unit
  • Rear window defogger switch
  • Red
  • Red/ tan
  • S103 (after breakout to pcm)
  • S110
  • S111 (near pdc)
  • S120
  • S121
  • S131 (near breakout to throttle position sensor)
  • To fuse 6 (diagram 1 of 3)
  • To ignition switch (diagram 2 of 3)
  • To junction block (fuse 4) (diagram 2 of 3)
  • To junction block (fuse 9) (diagram 2 of 3)
  • To s105 (diagram 2 of 3)
  • To s125 (diagram 3 of 3)
  • Transmission control relay (5.2l/5.9l)
  • Transmission solenoid assembly
  • Upstream heated oxygen sensor
  • Van conversion accessory power relay
  • Van conversion provision

Электросхема блока предохранителей и реле (2 из 3) для Dodge Ram Wagon B1500 1999

Электросхема блока предохранителей и реле (2 из 3) для Dodge Ram Wagon B1500 1999 - Список элементов:

  • (near pdc) s110
  • (near rear center of engine compt) s134
  • (near rear center of engine compt) s123
  • (right side of dash, behind glove box) s228
  • 3.9l only
  • A/c cycling switch
  • A/c heater control
  • Acc
  • Airbag control module
  • Blend door actuator
  • Central timer module
  • Chime buzzer module
  • Circuit breaker 20a
  • Combination flasher
  • Controller anti-lock brake
  • Daytime running lamp module
  • Driver door lock switch
  • Duty cycle evap/ purge solenoid
  • Engine starter motor relay
  • F10
  • F14
  • F18
  • F20
  • F23
  • F35
  • F72
  • F82
  • From a/c compressor clutch h relay (diagram 1 of 3)
  • From fuel pump relay (diagram 1 of 3)
  • From power distribution center (fuse 12) (diagram 1 of 3)
  • From power distribution center (fuse 14) (diagram 1 of 3)
  • From power distribution center (fuse 16) (diagram 1 of 3)
  • Fuel level sensor
  • Fuse 10a
  • Fuse 15a
  • Fuse 20a
  • Fuse 5a
  • High blower relay
  • High pressure fuel shut-off solenoid relay
  • Highline
  • Horn relay
  • Hvac ignition run relay
  • Ignition switch
  • Instrument cluster
  • Joint connector no1 (left side of dash)
  • Junction block
  • Left power window switch
  • Midline
  • Nca
  • Off
  • Park neutral position switch
  • Passenger airbag on/off switch
  • Passenger door lock switch
  • Power distribution center
  • Power door lock module
  • Powertrain control module
  • Radio
  • Rear a/c heater unit
  • Rear window defogger switch
  • Red
  • Red/
  • Right power window switch
  • Run
  • Start
  • Tan
  • To fuse 12 (diagram 3 of 3)
  • To fuse 6 (diagram 3 of 3)
  • Torque converter clutch solenoid

Электросхема блока предохранителей и реле (3 из 3) для Dodge Ram Wagon B1500 1999

Электросхема блока предохранителей и реле (3 из 3) для Dodge Ram Wagon B1500 1999 - Список элементов:

  • (in right trough) s202
  • (near breakout to passenger airbag defeat switch) s214
  • (near power amplifier) s229
  • (rear center of engine compt) (w/drl only) s125
  • A/c heater control
  • C201
  • Chime/ buzzer module
  • Cigar lighter
  • Circuit breaker 20a
  • Courtesy lamp relay
  • Data link connector
  • Daytime running lamp module
  • Dome lamps switch
  • Driver power seat switch
  • Except
  • Except highline
  • F60
  • From fuse 16 (diagram 2 of 3)
  • From fuse 4 (diagram 2 of 3)
  • From power distribution center (fuse 8) (diagram 1 of 3)
  • Fuse 15a
  • Fuse 20a
  • Fuse 5a
  • G202 (left side of dash)
  • Glove box lamp
  • Head
  • Head- lamp switch
  • Headlamp relay
  • Highline
  • Instrument cluster
  • Intermittent wiper control module
  • Intermittent wiper motor
  • Joint connector no2 (left side of dash)
  • Joint connector no3 (left side of dash)
  • Junction block
  • Nca
  • Off
  • Park
  • Pnk/ red
  • Power amplifier
  • Power mirror switch
  • Radio
  • Rear a/c heater control
  • Red
  • Tan
  • Under- hood lamp
  • Van conversion accessory power relay
  • W/ power amplifier
  • W/o power amplifier
  • Windshield wiper/ washer switch
  • Wiper relay
