Электросхемы СИСТЕМА КОНДИЦИОНЕРА Dodge Ram Van B3500 1999

СИСТЕМА КОНДИЦИОНЕРА

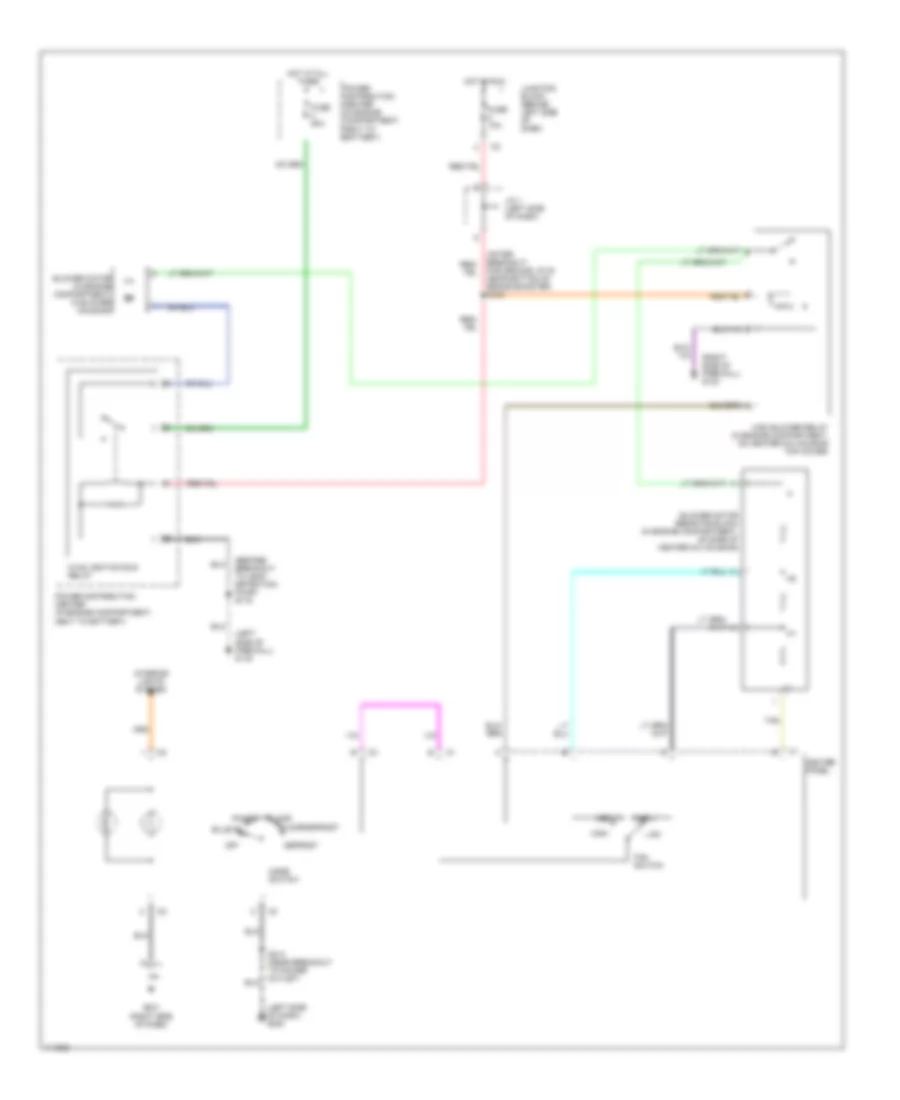

схема нагревателя для Dodge Ram Van B3500 1999

схема нагревателя для Dodge Ram Van B3500 1999Download PDF file

схема нагревателя для Dodge Ram Van B3500 1999 - Список элементов:

  • (after breakout for ground, g116 near bottom of brake booster) s105
  • (before breakout to leak detection pump) s115
  • (left side of dash) g202
  • (left side of firewall) g116
  • (right side of firewall) g123
  • Bi-level
  • Blower motor (in engine compartment, in blower housing)
  • Blower motor resistor block (in engine compartment, on side of heater-a/c housing)
  • Defrost
  • Fan switch
  • Floor
  • Floor/defrost
  • Fuse 10a
  • Fuse 50a
  • G201 (right side of dash)
  • Heater panel
  • High
  • High blower relay (in engine compartment, on heater-a/c housing top cover)
  • Hot at all times
  • Hot in run
  • Hvac ignition run relay
  • Interior lights system
  • J/c 1 (left side of dash)
  • Junction block (behind left side of dash)
  • Low
  • Med 1
  • Med 2
  • Mode switch
  • Off
  • Panel
  • Power distribution center (in engine compartment, next to battery)
  • S213 (near breakout to power outlet)
  • Tan

Электросхема кондиционера с ручный управлением для Dodge Ram Van B3500 1999

Электросхема кондиционера с ручный управлением для Dodge Ram Van B3500 1999 - Список элементов:

  • (after breakout for ground g116, near brake booster) s105
  • (in power distribution center) s120
  • (in right trough) s227
  • (left side of dash) g202
  • (left side of firewall) g116
  • (near breakout to power outlet) s213
  • (right side of firewall) g123
  • A/c comp rly ctrl
  • A/c compressor clutch
  • A/c compressor clutch relay (in power distribution center)
  • A/c cycling switch (in front evaporator coil fins)
  • A/c heater control
  • A/c high pressure switch (on discharge line, near a/c condenser)
  • A/c low pressure switch (on suction line, near filter drier)
  • A/c pressure sig
  • A/c select
  • A/c switch sense
  • A/c switch signal
  • Amplifier
  • Bi-level
  • Blend air door actuator (under dash, at top right end of distribution duct)
  • Blower motor (in engine compart- ment, in blower housing)
  • Blower motor resistor block (in engine compartment, on side of heater-a/c housing)
  • C13
  • C18
  • C22
  • C23
  • C90
  • De-fog
  • Defrost
  • Fan
  • Floor
  • Fuse 10a
  • Fuse 20a
  • Fuse 50a
  • G201 (right side of dash)
  • High
  • High blower relay (in engine compartment, on heater-a/c housing top cover)
  • Hot at all times
  • Hot in run
  • Hvac ignition run relay (in power distribution center)
  • Ignition
  • Interior lights system
  • J/c 1 (behind left side of dash)
  • Junction block (behind left side of dash)
  • Low
  • Med 1
  • Med 2
  • Mode
  • Off
  • Panel
  • Panel bi-level
  • Power distribution center (in engine compartment, next to battery)
  • Powertrain control module (pcm) (center of firewall)
  • Rear a/c
  • Rear a/c heater unit
  • Rec
  • S102 (right fender shield)
  • Tan

Электросхема кондиционера с ручный управлением, Задний счет для Dodge Ram Van B3500 1999

Электросхема кондиционера с ручный управлением, Задний счет для Dodge Ram Van B3500 1999 - Список элементов:

  • (left side of dash) g202
  • (near breakout to power outlet)
  • A/c heater control
  • A/c switch sig
  • Fuse 10a
  • Fuse 40a
  • High
  • High blower relay
  • Hot at all times
  • Hot in run
  • Ignition run relay
  • Interior lights system
  • J/c 1 (behind left side of dash)
  • Junction block (behind left side of dash)
  • Low
  • Med
  • Mode door module
  • Motor
  • Nca
  • Off
  • Power distribution center (in engine compartment, next to battery)
  • Rear a/c heater control
  • Rear a/c heater unit
  • Rear blower m
  • Resistor block
  • S213
