DEFOGGERS – Jeep Wrangler 1990 – SYSTEM WIRING DIAGRAMS

DEFOGGERS

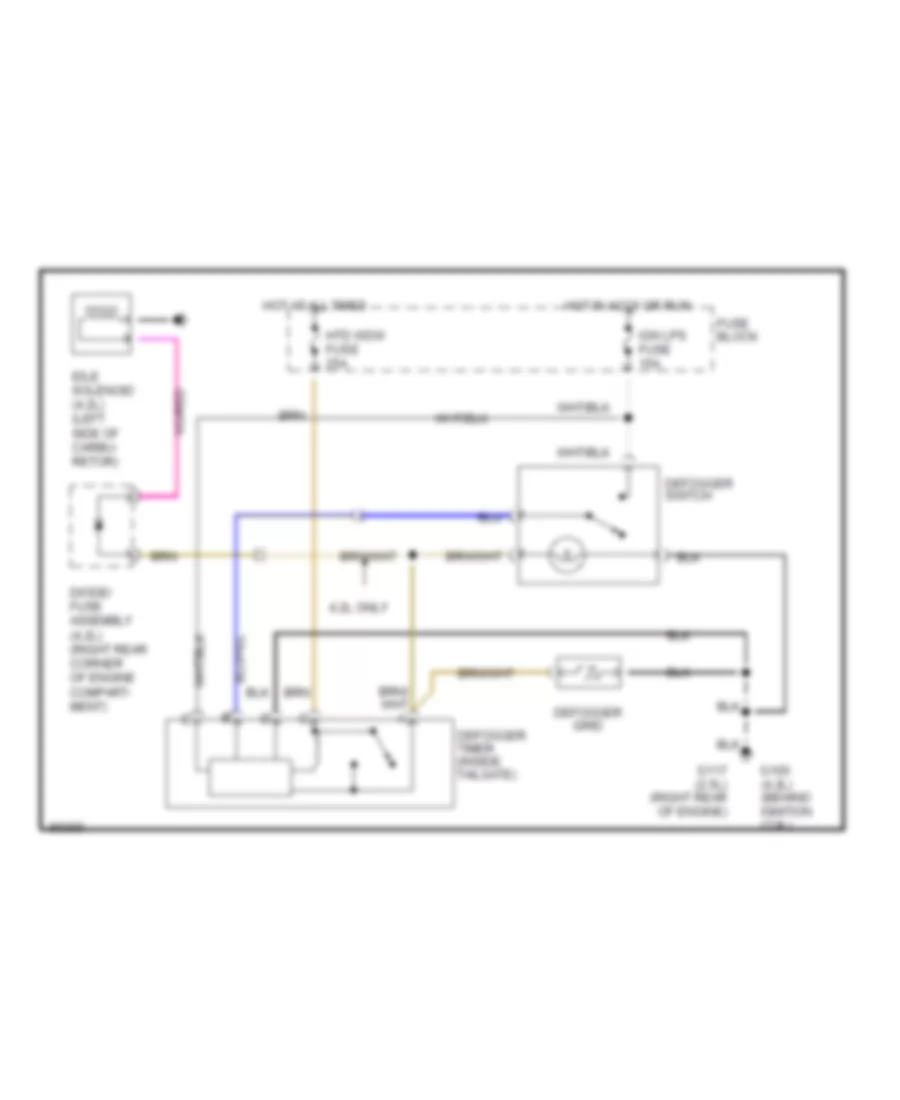

Defogger Wiring Diagram for Jeep Wrangler 1990

List of elements for Defogger Wiring Diagram for Jeep Wrangler 1990:

• 4.2l only
• Defogger grid
• Defogger switch
• Defogger timer (inside tailgate)
• Diode/ fuse assembly (4.2l) (right rear corner of engine compart- ment)
• Fuse block
• G100 (4.2l) (behind ignition coil)
• G117 (2.5l) (right rear of engine)
• Hot at all times
• Hot in accy or run
• Htd wdw fuse 25a
• Idle solenoid (4.2l) (left side of carbu- retor)
• Ign lps fuse 15a
