AIR CONDITIONING – Honda Fit 2007 – SYSTEM WIRING DIAGRAMS

AIR CONDITIONING

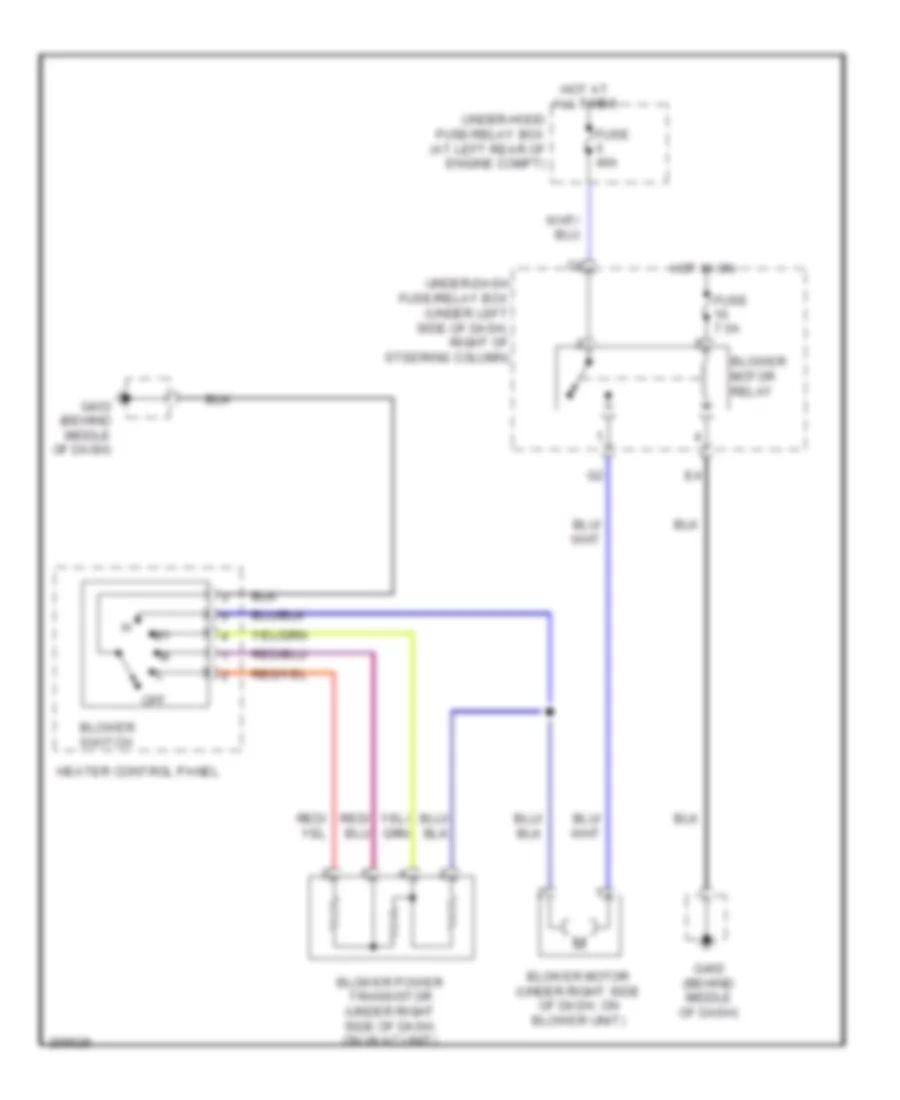

Heater Wiring Diagram for Honda Fit 2007

List of elements for Heater Wiring Diagram for Honda Fit 2007:

• Blower motor (under right side of dash, on blower unit)
• Blower motor relay
• Blower power transistor (under right side of dash, on hvac unit)
• Blower switch
• Fuse 40a
• Fuse 7.5a
• G402 (behind middle of dash)
• G403 (behind middle of dash)
• Heater control panel
• Hot at all times
• Hot in on
• Off
• Under-dash fuse/relay box (under left side of dash, right of steering column)
• Under-hood fuse/relay box (at left rear of engine compt)

Manual A/C Wiring Diagram (1 of 2) for Honda Fit 2007

List of elements for Manual A/C Wiring Diagram (1 of 2) for Honda Fit 2007:

• (behind middle of dash) g402
• (behind right side of front bumper) g201
• A/c compressor (lower right front of engine compt)
• A/c compressor clutch
• A/c diode
• A/c pressure switch (lower right front of engine compt)
• Blower motor (under right side of dash, on blower unit)
• Blower motor relay
• Blower power transistor (under right side of dash, on hvac unit)
• Blower switch
• Defogger system
• Fuse 7.5a
• G403 (behind middle of dash)
• Heater-a/c control panel
• High
• Hot in on
• Interior lights system
• Low
• Mode 1
• Mode 2
• Mode 3
• Mode 4
• Mode 5
• Mode control switch
• Noise reduction condenser (front of engine compt)
• Off
• On ind
• Pnk
• Rear window defogger switch & a/c switch
• Red
• Thermal fuse
• Thermal protector
• Under-dash fuse/relay box (under left side of dash, right of steering column)

Manual A/C Wiring Diagram (2 of 2) for Honda Fit 2007

List of elements for Manual A/C Wiring Diagram (2 of 2) for Honda Fit 2007:

• (lower right front of engine compt)
• (rear of engine) (thermal joint) s2
• A/c compressor clutch relay
• A/c condenser fan motor (behind right side of radiator)
• A/c condenser fan relay
• A/c switch signal (acs)
• A23
• E12
• E18
• E28
• Ecm/pcm (under right side of dash)
• Ect sensor 1 (rear of engine)
• Ect sensor 2
• Evap temp sensor signal (tac)
• Evaporator temperature sensor (under left side of dash, on hvac unit)
• Fan ctrl (fan)
• Fuse 30a
• Fuse 40a
• G301 (behind left side of front bumper)
• Hot at all times
• J/c b
• Pnk
• Radiator fan motor (behind left side of radiator)
• Radiator fan relay
• Red
• Relay ctrl (acc)
• Sensor ground (sg2)
• Sensor ground (sg4)
• Sensor input (tw)
• Sensor input (tw2)
• Under-hood fuse/relay box (at left rear of engine compt)
