AIR CONDITIONING

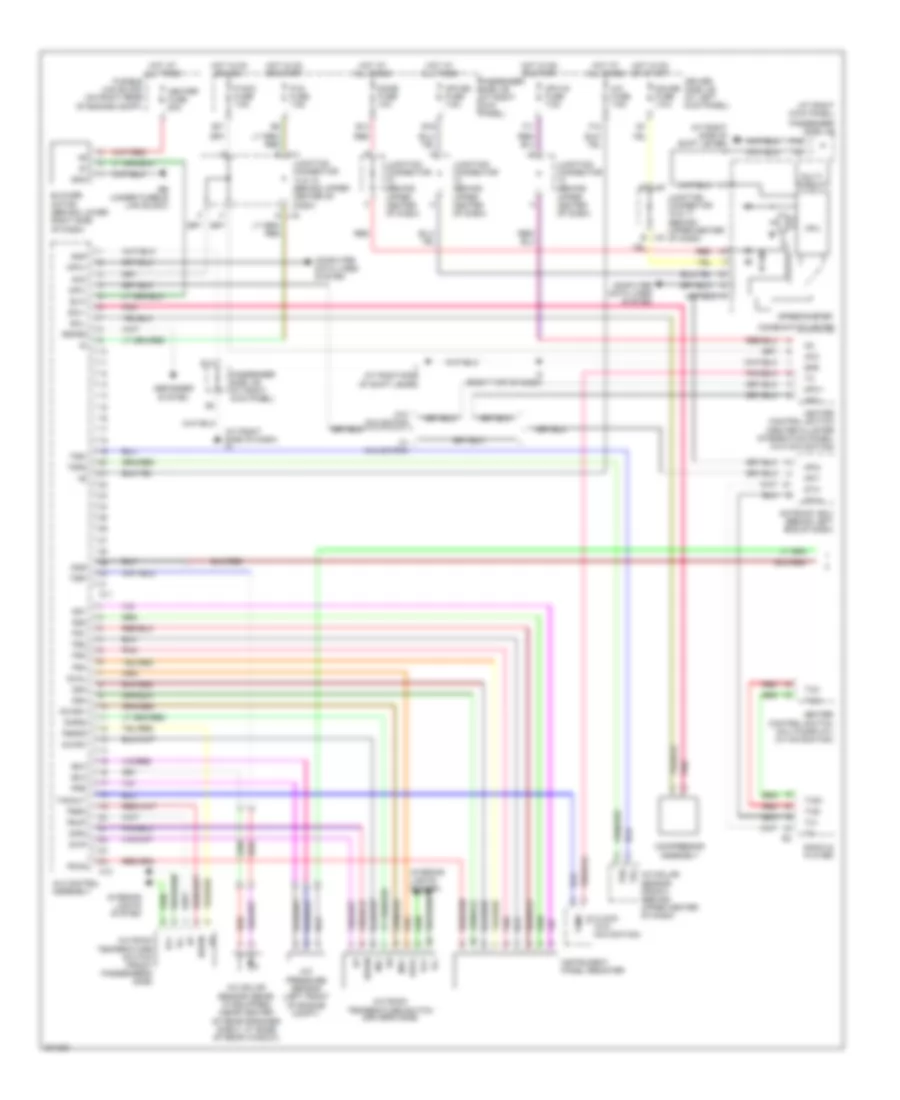

Automatic A/C Wiring Diagram, Front (1 of 2) for Lexus LS 430 2006
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO List of elements for Automatic A/C Wiring Diagram, Front (1 of 2) for Lexus LS 430 2006:
- (at right kick panel)
- (at right side of dash) ik
- (at right side of shift lever) ii
- A/c control assembly
- A/c fuse 7.5a
- A/c pressure sensor (left front of engine compt)
- A/c room
- A/c room temperature switch (front passenger's side)
- A/c solar sensor (front) (behind upper center of dash)
- A/c solar sensor (rear) (if equipped) (near center of rear speaker shelf, at base of rear window)
- A11
- A12
- Acc
- Assembly
- Blower motor (behind lower right side of dash)
- Blw
- Combination meter
- Compressor
- Computer data lines system
- Cpu
- Defogger system
- Dgs
- Dome fuse 10a
- Down
- Driver side j/b (at left kick panel)
- Ds1
- Ds2
- Ds3
- Ds4
- Dual
- Duind+
- Duind-
- Drdn
- Drgnd
- Drup
- E13
- E14
- E16
- E17
- Eb (under fusible link block)
- F11
- F12
- F15
- Fusible link block (on right rear of engine compt)
- Gateway ecu (behind left end of dash)
- Gauge fuse 7.5a
- Gnd
- Gtx+
- Gtx-
- Heater control switch (center cluster integration panel) (w/o navigation)
- Heater control switch (multi-display) (w/ navigation)
- Heater fuse 50a
- Hot at all times
- Hot in on or acc
- Hot in on or start
- I8 (right top of dash)
- Ig+
- Ii (at right side of shift lever)
- Ill+
- Ill-
- Ind+
- Ind-
- Instrument panel register
- Interior lights system
- J14 g
- J15 g
- J16 b
- J17 d
- Junction connector (behind upper center of dash)
- Junction connector 14 & 15 (behind upper center of dash)
- Junction connector 16 & 17 (behind upper center of dash)
- Mpi1
- Mpi2
- Mpx+
- Mpx-
- Mpx-b2 fuse 7.5a
- Mpx-ig fuse 7.5a
- Multi- display
- P-acc fuse 7.5a
- P-ig fuse 7.5a
- Passenger side j/b
- Passenger side j/b (at right kick panel)
- Pnk
- Prs
- Ps+b
- Ps1
- Ps2
- Ps3
- Ps4
- Padn
- Pagnd
- Paup
- Radio & player
- Rdfgr
- Red
- S5-2
- S5-4
- Sol+
- Sol-
- Speedometer
- Tamo
- Tamout
- Tc clock (w/o navigation)
- Temperature switch (driver's side)
- Tsdr
- Tsl
- Tspa
- Tsr
- Tsrr
- Tx+
- Tx-
- Tx2+
- Tx2-
- Txs+
- Txs-
- W/ navigation
- W/o navigation
Automatic A/C Wiring Diagram, Front (2 of 2) for Lexus LS 430 2006
List of elements for Automatic A/C Wiring Diagram, Front (2 of 2) for Lexus LS 430 2006:
- (at left radiator side support) ec
- (center of dash)
- (center of dash) i9
- (in engine harness, at top center rear of engine) e12
- (in engine harness, under ecu box) e1
- (left front of engine compt) junction connector 1
- +b1
- A/c ambient temperature sensor (behind left side of bumper fascia)
- A/c control assembly
- A/c evaporator temperature sensor
- A/c ig fuse 7.5a
- A/c room temperature sensor (behind left center of dash)
- A13
- A36
- A37
- Abodr
- Abopa
- Absdr
- Abspa
- Aif
- Air
- Air inlet control servo motor (right side of dash)
- Air mix control servo motor (driver side) (center of dash)
- Air mix control servo motor (front passenger side) (right side of dash)
- Air vent mode control servo motor (driver side) (center of dash)
- Air vent mode control servo motor (front passenger side) (center of dash)
- Amdb
- Amdr1
- Amdr2
- Amdr3
- Amdr4
- Ampb
- Ampa1
- Ampa2
- Ampa3
- Ampa4
- Aodb
- Aodr1
- Aodr2
- Aodr3
- Aodr4
- Aopb
- Aopa1
- Aopa2
- Aopa3
- Aopa4
- C-gnd
- Canh
- Canl
- Computer data lines system
- Cool air bypass servo motor (driver side) (left side of dash)
- Cool air bypass servo motor (front passenger side) (right side of dash)
- Cooling fan ecu (on front center of engine compt, on radiator support)
- D-sig
- Duct sensor (driver's side) (behind upper left side of dash)
- Duct sensor (front passenger's side) (behind upper right side of dash)
- Ed (at top left of dash)
- Engine control module (on left front of engine compt, in protective case)
- Engine coolant temperature sensor (on front center of engine)
- Engine room r/b 1 (on left front of engine compt, behind headlight)
- Exhaust gas sensor (on right side of engine, on exhaust system)
- Fan fuse 50a
- Fan relay
- Fr ig fuse 7.5a
- Frs
- Fusible link block (on right rear of engine compt)
- Gnd
- Hot at all times
- Hot in on or start
- Junction connector 3 (left front of engine compt)
- Junction connector 7 (below engine room j/b 1 & engine room r/b 1)
- Magnetic field sensor (w/ compass) (behind center of dash)
- Mopen
- Mshut
- Nca
- Nox
- Open
- Option connector (telephone transceiver & speaker relay) (on left side of luggage compt)
- Pnk
- Rec
- Red
- Rfc
- S5-3
- S5-5
- Sg-1
- Sg-2
- Sg-3
- Sg-4
- Sg-5
- Sg-7
- Shield
- Short connector s1 & s2 (left front of engine compt)
- Shut
- Tam
- Telin
- Tfacedr
- Tfacepa
- Thw
- Tp1
- Tpbdr
- Tpbpa
- Vmid
- Water valve servo motor (center of dash)
- Wvig
- Wvo
- Wvs
Automatic A/C Wiring Diagram, Rear for Lexus LS 430 2006
List of elements for Automatic A/C Wiring Diagram, Rear for Lexus LS 430 2006:
- (+)
- (-)
- (at left kick panel)
- (at right kick panel)
- (at right side of shift lever) ii
- (rear of
- A/c amplifier (in luggage compt)
- A/c control assembly
- A/c fuse 7.5a
- A/c solar sensor (rear) (near center of rear speaker shelf, at base of rear window)
- A11
- A12
- Acc
- Air purifier light
- Audio & rear a/c control switch
- Auto
- B13
- B13 (rear of luggage compt)
- C11
- Combination meter
- Computer data lines system
- Cool box illumination
- Cpu
- Dio
- Dome fuse 10a
- Driver side j/b
- E13
- E14
- E16
- E17
- Exo
- F j15
- F11
- F12
- F13
- F15
- Frs
- Fusible link block (on right rear of engine compt)
- Gauge fuse 7.5a
- Gnd
- H j14
- Heater control switch (center cluster integration panel) (w/o navigation)
- Hic
- Hot at all times
- Hot in on or acc
- Hot in on or start
- Ig+
- Ik (at right side of dash)
- J16 b
- J17
- Junction connector (behind upper center of dash)
- Junction connector 14 & 15 (behind upper center of dash) g
- Junction connector 16 & 17 (behind upper center of dash)
- Junction connector 23 (rearward of left rear fenderwell)
- L14
- Lug j/b fuse 60a
- Luggage compt)
- Luggage room j/b (on left side of luggage compt)
- Luggage room j/b ecu
- Mpx+
- Mpx-
- Mpx-b
- Mpx-b2 fuse 7.5a
- Mpx-b3 fuse 7.5a
- Mpx-ig
- Mpx-ig fuse 7.5a
- Multi-display
- P-acc fuse 7.5a
- P-gnd
- P-ig fuse 7.5a
- Passenger side j/b
- Passenger side j/b (at right kick panel)
- Pnk
- R-b
- Rauto
- Rear blower motor (center rear of vehicle)
- Rear blower resistor (center rear of vehicle)
- Rear damper servo motor (rear center of luggage compt)
- Rear magnetic valve (in rear luggage compt)
- Red
- Rfr
- Rfr1
- Rhi
- Rhr
- Rlo
- Rmgv
- Roo
- Rr a/c fuse 7.5a
- Rr ecu-b fuse 7.5a
- Rslo
- S5-4
- Sfrs
- Smok
- Smoke sensor (center rear of vehicle)
- Tsrr
- Tx(+)
- Tx(-)
