Электросхемы СИСТЕМА ОХЛАЖДЕНИЯ Lexus RX 300 1999

СИСТЕМА ОХЛАЖДЕНИЯ

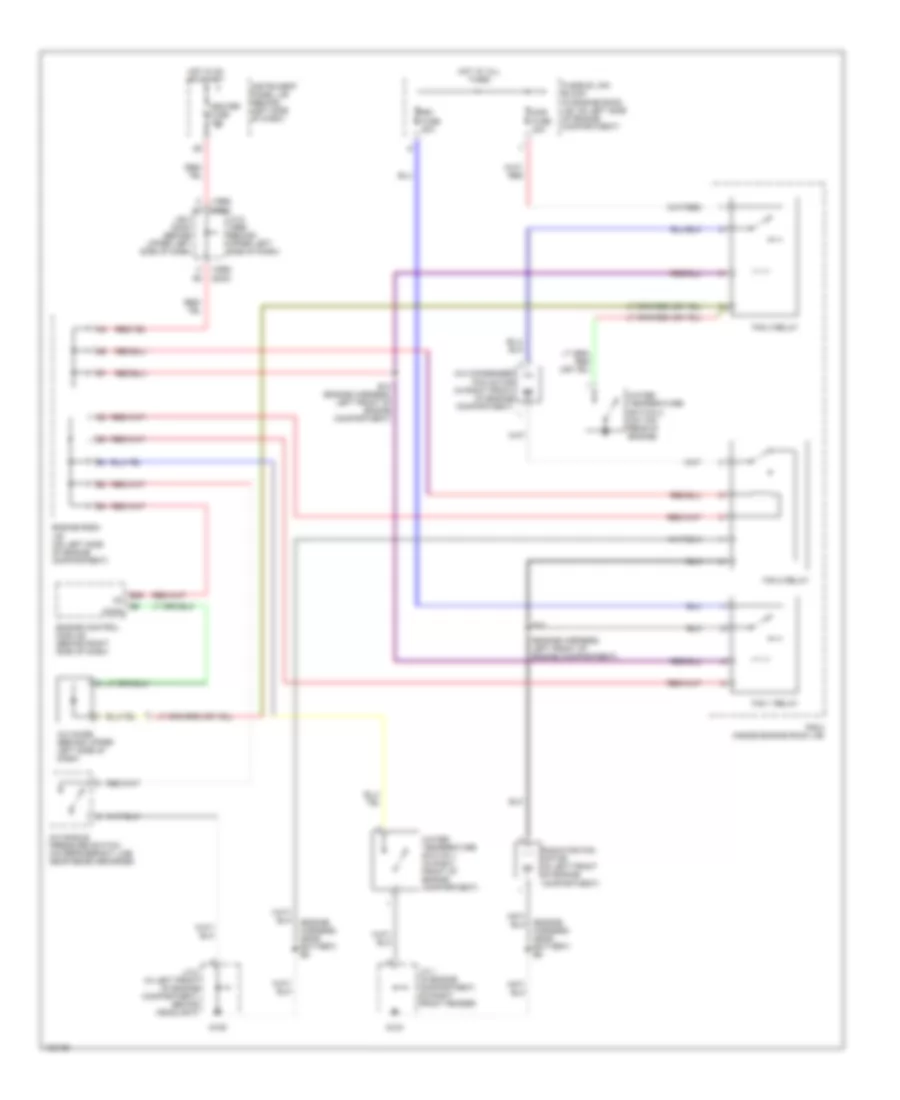

Электросхема системы охлаждения для Lexus RX 300 1999

Электросхема системы охлаждения для Lexus RX 300 1999 - Список элементов:

• (1999)
• (2000)
• (engine harness, left front of engine compartment)
• (engine harness, near battery) e9
• A/c condenser fan motor (in right front of engine compartment)
• A/c diode (behind upper left side of dash)
• A/c single pressure switch (on refrigerant line near receiver-drier)
• Acmg
• Cds fuse 40a
• E10
• E13 (engine harness, left front of engine compartment)
• E26
• Engine control module (behind right side of dash)
• Engine room j/b (on left side of engine compartment)
• Fan 1 relay
• Fan 2 relay
• Fan 3 relay
• Fusible link block (in engine room j/b, on left side of engine compartment)
• G103
• G106
• Heater fuse 15a
• Hot at all times
• Hot in on or start
• Instrument panel j/b (behind left side of dash)
• J/b 5 (2000) (behind upper left side of dash)
• J/c 1 (in engine compartment, on right front fender)
• J/c 2 (in left front of engine compartment, behind headlight)
• J/c 6 (1999) (behind upper left side of dash)
• R/b 2 (inside engine room j/b)
• Radiator fan motor (in left front of engine compartment)
• Rdi fuse 40a
• Water temperature switch 1 (in right front of engine compartment)
• Water temperature switch 2 (on top rear 0f engine)
