Электросхемы ВНУТРЕННЕЕ ОСВЕЩЕНИЕ Lexus RX 350 2010

ВНУТРЕННЕЕ ОСВЕЩЕНИЕ

Электросхема подсветки (1 из 2) для Lexus RX 350 2010

Электросхема подсветки (1 из 2) для Lexus RX 350 2010 - Список элементов:

• (in right "b" pillar)
• (under left rear seat) j/c o28 & p36
• +b1
• Acc
• Altb
• Bcty f13
• Canh
• Canl
• Cann
• Canp
• Cill
• Computer data lines system
• Cspt f12
• Cty
• D/l alt b fuse 25a
• D11
• D12
• D13
• D23
• D26
• Dmdr f14
• Dmon
• Dome fuse 10a
• Door
• Ecu- acc fuse 10a
• Ecu- ig1 1 fuse 10a
• Engine room r/b assembly (left front fender apron)
• F13
• Flcl f12
• Flcy
• Frcl
• Frcy
• Gnd
• Gnd1
• H21
• H23
• H24
• H26
• Hot at all times
• Hot w/ acc1 relay energized
• Hot w/ ig1 1 relay energized
• Htr-
• Ile
• Illb
• Instrument panel j/b assembly (left side of dash)
• J/c f66 (center of dash)
• J/c f92 (under center console)
• J/c f93 (left side of dash)
• J/c g22 (right center of dash)
• Lcty f12
• Lcyl f12
• Left front courtesy light assembly
• Left front door courtesy light switch assembly (in left "b" pillar)
• Left outer mirror control ecu assembly (in left door)
• Left outer rear view mirror assembly
• Left rear door courtesy light switch assembly (in left "c" pillar)
• Lill
• Main body ecu
• O28
• Overhead module (center front of roof)
• P36
• Pnk
• Rcty
• Rcyl f14
• Red
• Rgnd
• Right front courtesy light assembly
• Right front door courtesy light switch assembly
• Right rear courtesy light assembly
• Right rear door courtesy light switch assembly (in right "c" pillar)
• Rrmp
• Shft
• Sport light assembly

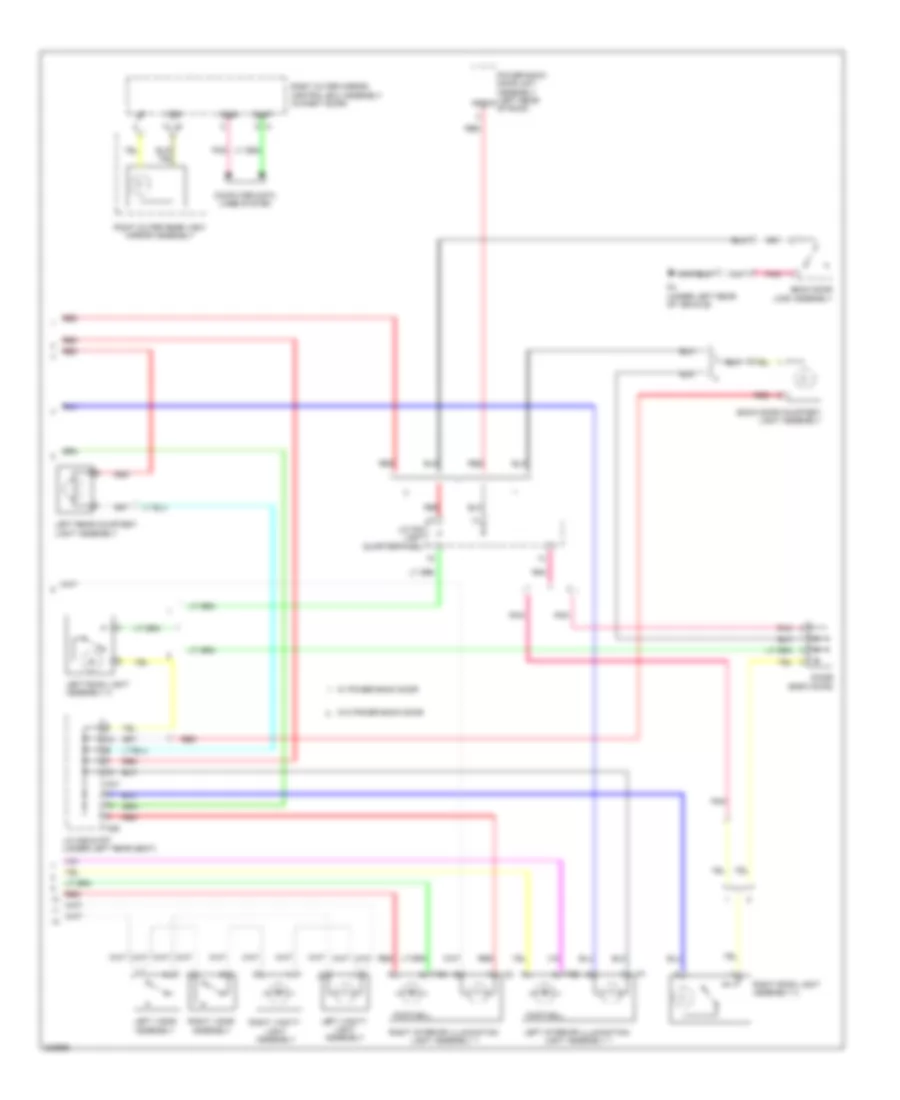

Электросхема подсветки (2 из 2) для Lexus RX 350 2010

Электросхема подсветки (2 из 2) для Lexus RX 350 2010 - Список элементов:

• Back door courtesy light assembly
• Back door lock assembly
• Cann
• Canp
• Computer data lines system
• Ctyo
• Diode (back door)
• F20
• F48
• Footwell
• Htr-
• J/c o29 & p37 (under left rear seat)
• J/c p40 (left quarterpanel)
• Left interior illumination light assembly 1
• Left rear courtesy light assembly
• Left room light assembly 2
• Left vanity light assembly
• Left visor assembly
• O29
• P37
• P4 (under left rear of vehicle)
• Pnk
• Power back door unit assembly (left rear of roof)
• Red
• Right interior illumination light assembly 1
• Right outer mirror control ecu assembly (in right door)
• Right outer rear view mirror assembly
• Right room light assembly 2
• Right vanity light assembly
• Right visor assembly
• W/ power back door
• W/o power back door

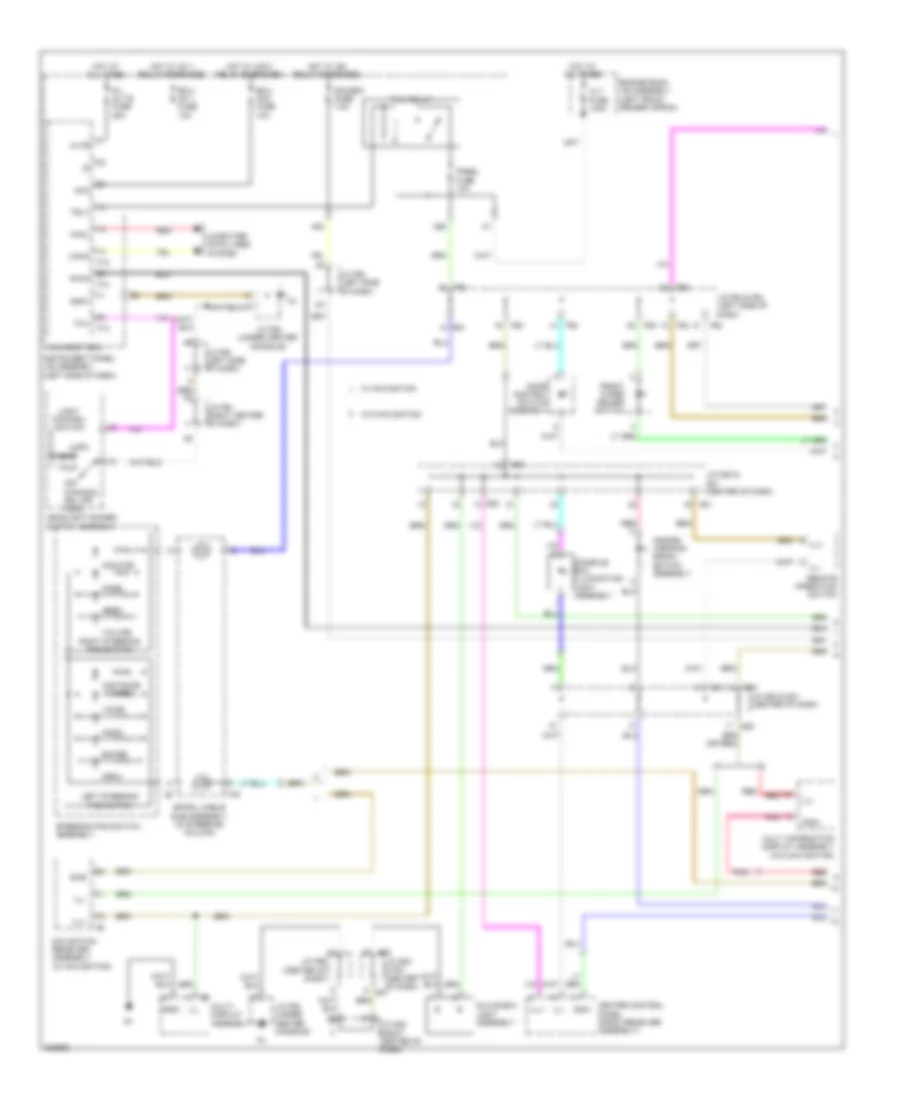

Электросхема подсветки приборов (1 из 2) для Lexus RX 350 2010

Электросхема подсветки приборов (1 из 2) для Lexus RX 350 2010 - Список элементов:

• A54
• A55
• Acan
• Acc
• Adim
• Alt fuse 140a
• Altb
• Auto
• Canh
• Canl
• Computer data lines system
• Console box illumination light assembly
• D/l alt b fuse 25a
• Distance control
• Door control switch assembly
• Ecu- acc fuse 10a
• Ecu- ig1 1 fuse 10a
• Engine room j/b assembly (left front fender apron)
• Enter
• F13
• F14
• F40
• F63
• F64
• Front wiper deicer switch
• G20
• G21
• Gauge 2 fuse 7.5a
• Glove box light assembly
• Gnd1
• Hazard warning signal switch assembly
• Head
• Headlight dimmer switch assembly
• Heater control panel (radio receiver assembly)
• Hook
• Hot at all times
• Hot w/ acc1 relay energized
• Hot w/ ig1 1 relay energized
• Hot w/ ig2 relay energized
• Ill
• Ill+
• Ill-
• Instrument panel j/b assembly (left side of dash)
• J/c f63 & f64 (left side of dash)
• J/c f66 (center of dash)
• J/c f92 (under center console)
• J/c f93 (left side of dash)
• J/c f94 (right center of dash)
• J/c g20 & g21 (center of dash)
• J/c g22 (right center of dash)
• Left steering pad switch
• Light control switch
• Main body ecu
• Menu
• Mode
• Monitor
• Multi information display assembly (w/o navigation)
• Multi- display assembly
• Navigation receiver assembly (w/ navigation)
• Off (canada) drl off (usa)
• Panel fuse 10a
• Pnk
• Red
• Remote operation switch
• Right steering pad switch
• Seek
• Spiral cable sub-assembly (in steering column)
• Steering pad switch assembly
• Swg
• Tail
• Tail relay
• Trly
• Voice
• Volume
• W/ navigation
• W/o navigation

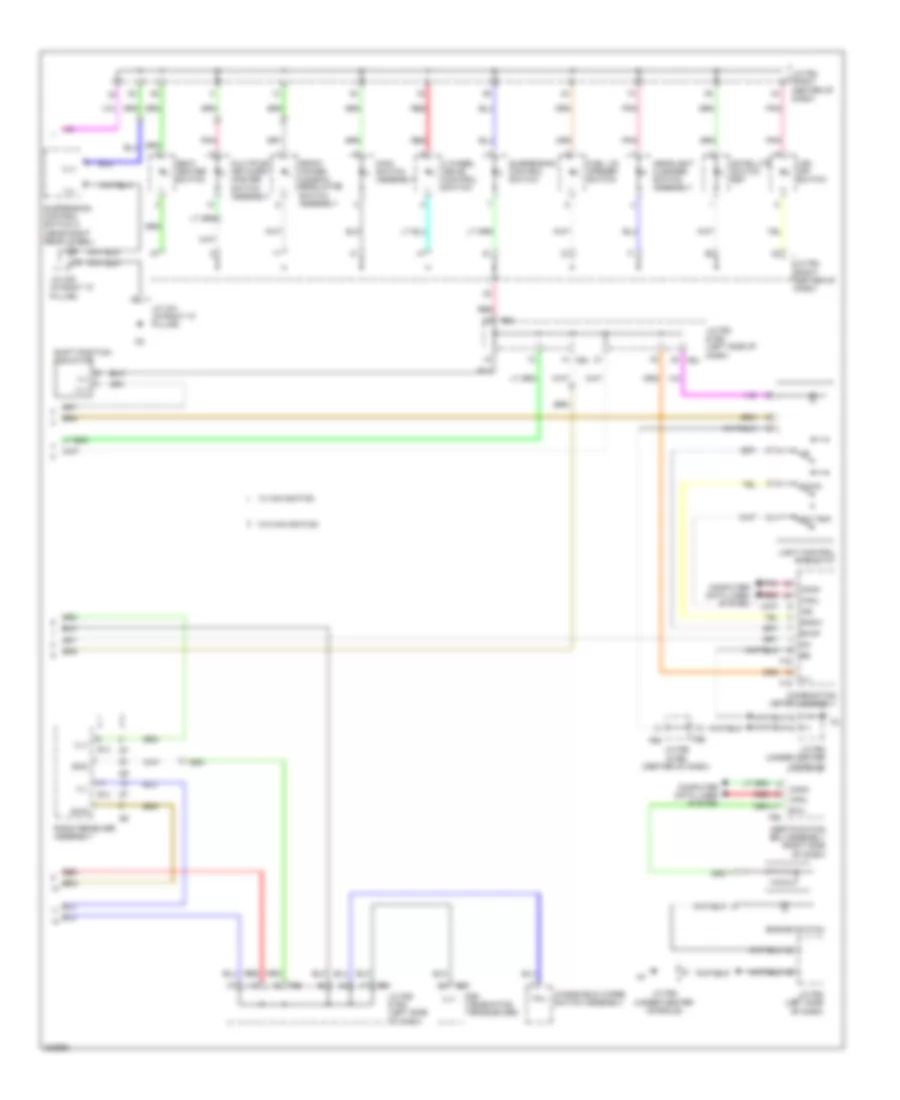

Электросхема подсветки приборов (2 из 2) для Lexus RX 350 2010

Электросхема подсветки приборов (2 из 2) для Lexus RX 350 2010 - Список элементов:

• 4 wheel drive control switch
• A/b
• Adim
• Canh
• Canl
• Certification ecu assembly (right side of dash)
• Combination meter assembly
• Computer data lines system
• Dcm (telematics transceiver)
• Down
• Engine switch
• F15
• F16
• F58
• F63
• F64
• F65
• F66
• Front power window regulator switch assembly
• Fuel lid opener switch
• G12
• G25
• Headlight cleaner switch assembly
• Ig+
• Ill+
• Ill-
• J/c f63 & f64 (left side of dash)
• J/c f65 & f66 (center of dash)
• J/c f92 (under center console)
• J/c f93 (left side of dash)
• J/c f94 (right center of dash)
• J/c o30 (in right "c" pillar)
• J/c o31 (in right "c" pillar)
• Light control rheostat
• Main switch assembly
• Multiplex network master switch assembly
• Odo trip
• Pnk
• Radio receiver assembly
• Red
• Rhdw
• Rhup
• Satellite switch set
• Seat heater switch
• Shift position indicator
• Suspension control switch
• Suspension control switch 2 (near right rear wheel)
• Swg
• Swil
• Tail
• Vsc off switch
• W/ navigation
• W/o navigation
• Windshield wiper switch assembly
