AIR CONDITIONING
3.8L

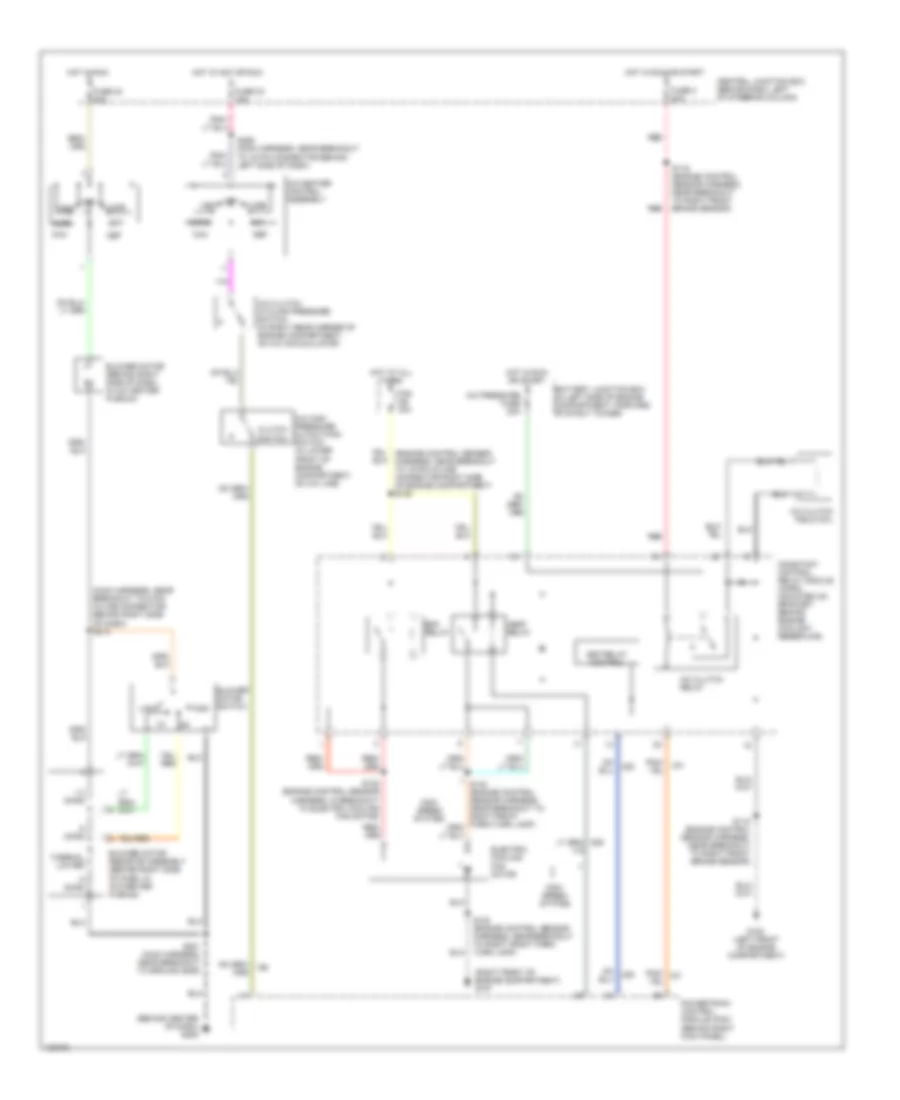

3.8L, Manual A/C Wiring Diagram for Ford Mustang GT 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO List of elements for 3.8L, Manual A/C Wiring Diagram for Ford Mustang GT 2000:
- (behind center of dash) g206
- (main harness, near breakout to 6 pin in-line connector, behind right side of dash) s213
- (right front of engine compartment) g107
- .5 ohms
- 1.3 ohms
- A/c clutch cycling pressure switch (in right rear corner of engine compartment, on a/c accumulator)
- A/c clutch field coil
- A/c clutch relay
- A/c high pressure cutout/fan switch (in lower front of engine compartment, on a/c line)
- A/c pressure fuse 20a
- A/c-heater control assembly
- Battery junction box (in left side of engine compartment, forward of strut tower)
- Blower motor (behind right side of dash, in a/c heater plenum)
- Blower motor resistor assembly (behind right side of dash, in a/c-heater plenum)
- Blower motor switch
- Central junction box (behind dash, left of steering column)
- Clutch switch
- Constant control relay module (ccrm) (mounted on bracket, behind engine coolant reservoir)
- Def
- Edf relay
- Edf relay control
- Electric cooling fan motor
- Fan cb 30a
- Floor
- Fuse 2 20a
- Fuse 23 15a
- Fuse 24 30a
- G100 (left front of engine compartment)
- Hedf relay
- High
- Hot at all times
- Hot in acc or run
- Hot in run
- Hot in run or start
- Low
- Max
- Mix
- Non- green states
- Norm
- Off
- Pnk/
- Powertrain control module (pcm) (behind right kick panel)
- Red
- S115 (engine control sensor harness, near breakout to right front brake sensor)
- S116 (engine control sensor harness, near breakout to right front brake sensor)
- S122 (engine control sensor harness, in breakout to electric cooling fan motor)
- S201 (main harness, near breakout to ground g206)
- S256 (main harness, near breakout to 16 pin connector behind left side of dash)
- Thermal limiter
- Vent
4.6L
4.6L, Manual A/C Wiring Diagram for Ford Mustang GT 2000
List of elements for 4.6L, Manual A/C Wiring Diagram for Ford Mustang GT 2000:
- (behind center of dash) g206
- (engine control sensor & fuel charge harness, near breakout to 42 pin in-line connector right rear of engine compartment) s180
- (engine control sensor harness, near breakout to right front park/ turn lamp) s100
- (left front of engine) g110
- (main harness, near breakout to 6 pin in-line connector, behind right side of dash) s213
- (right front of engine compartment) g107
- .5 ohms
- 1.3 ohms
- 30a c.b.
- A/c clutch cycling pressure switch (in right rear corner of engine compartment, on a/c accumulator)
- A/c clutch field coil
- A/c clutch relay
- A/c high pressure cutout/fan switch (in lower right front of engine compartment, on a/c line)
- A/c-heater control assembly
- Battery junction box (in left side of engine compartment, forward of strut tower)
- Blower motor (behind right side of dash, in a/c heater plenum)
- Blower motor resistor assembly (behind right side of dash, in a/c-heater plenum)
- Blower motor switch
- Central junction box (behind dash, left of steering column)
- Clutch switch
- Constant control relay module (ccrm) (in right front of engine compartment, behind radiator)
- Def
- Edf relay
- Edf relay control
- Electric cooling fan motor
- Fan fuse 50a
- Fan switch
- Floor
- Fuse 2 20a
- Fuse 23 15a
- Fuse 24 30a
- G100 (left front of engine compartment)
- Hedf relay
- High
- High current fuse panel (in right side of engine compartment, on fender)
- Hot at all times
- Hot in acc or run
- Hot in run
- Hot in run or start
- Low
- Max
- Mix
- Norm
- Off
- Pnk/
- Powertrain control module (pcm) (behind right kick panel)
- Red
- S115 (engine control sensor harness, near breakout to right front brake sensor)
- S116 (engine control sensor harness, near breakout to right front brake sensor)
- S119 (engine control sensor harness, near breakout to right front park/turn lamp)
- S122 (engine control sensor harness, near breakout to constant control relay module (ccrm))
- S201 (main harness, near breakout to ground g206)
- S256 (main harness, near breakout to 16 pin connector behind left side of dash)
- Thermal limiter
- Vent
