Электросхемы Противоугонная система Сигнализация Ford Windstar 2000

Противоугонная система Сигнализация

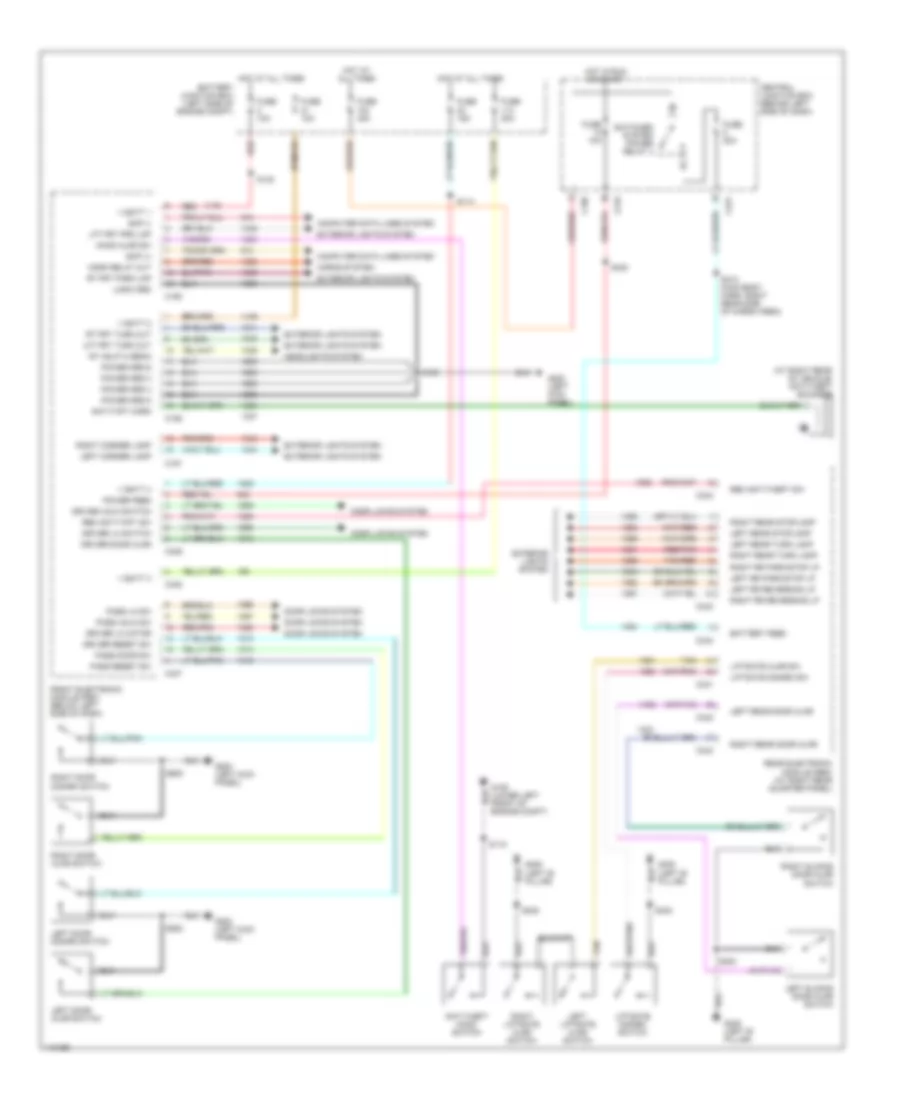

Электросхема открывания авто для Ford Windstar 2000

Электросхема открывания авто для Ford Windstar 2000 - Список элементов:

• (at right rear of vehicle) anti-theft sounder
• Anti-theft hood switch
• Anti-thft horn
• Battery feed
• Battery junction box (left side of engine compt)
• C190
• C191
• C192
• C196
• C219
• C221
• C340
• C341
• C342
• C343
• C344
• C346
• C347
• C348
• Central junction box (behind left side of dash)
• Computer data lines system
• Door locks system
• Driver door ajar
• Driver lk motor
• Driver lk switch
• Driver reset sw
• Driver unlk switch
• Exterior lights system
• Front electronic module (fem) (below left side of dash)
• Fuse 10a
• Fuse 15a
• Fuse 20a
• Fuse 30a
• Fuse 40a
• G106 (lower left front of engine compt)
• G200 (left kick panel)
• G308 (left 'b' pillar)
• Headlights system
• Hood ajar sw
• Horn relay out
• Horns system
• Hot at all times
• Hot in run or start
• Left corner lamp
• Left door ajar switch
• Left door disarm switch
• Left liftgate ajar switch
• Left rear door ajar
• Left rear stoplamp
• Left rear turn lamp
• Left rr park/stop lp
• Left rr reversing lp
• Left sliding door ajar switch
• Lft frt prk lmp
• Lft frt turn out
• Liftgate ajar sw
• Liftgate disarm sw
• Liftgate disarm switch
• Logic grd
• Pass door sw
• Pass lk sw
• Pass reset sw
• Pass unlk sw
• Power feed
• Power grd 3
• Power grd 4
• Power grd 5
• Power grd 6
• Rear electronic module (rem) (at right rear quarter panel)
• Red
• Red/pnk
• Rem anti-theft sw
• Rem anti-thft sw
• Right corner lamp
• Right door ajar switch
• Right door disarm switch
• Right liftgate ajar switch
• Right rear door ajar
• Right rear stoplamp
• Right rear turn lamp
• Right rr park/stop lp
• Right rr reversing lp
• Right sliding door ajar switch
• Rt frt park lmp
• Rt frt turn out
• Rt hdlp hi beam
• S114
• S115
• S130
• S139
• S300
• S313 (main body harn, right rear side of cargo area)
• S330
• S402
• S500
• S600
• Scp (+)
• Scp (-)
• Switched system power relay 4
• Tan
• Tan/red
• V batt 1
• V batt 2
• V batt 3
• V batt 4

пассивная Электросхема противоугонной сигнализации для Ford Windstar 2000

Unlock Lifetime Access for This Car.

пассивная Электросхема противоугонной сигнализации для Ford Windstar 2000 - Список элементов:

• C202
• C204
• C240
• C241
• Central junction box (behind left side of dash)
• Computer data lines system
• Fuse 9 10a
• G200 (left kick panel)
• Hot in start or run
• Instrument cluster
• Passive anti- theft system transceiver module (on steering column)
• S216
• S220
