Электросхемы СИСТЕМЫ СИДЕНИЙ Ford Explorer XLT 2012

СИСТЕМЫ СИДЕНИЙ

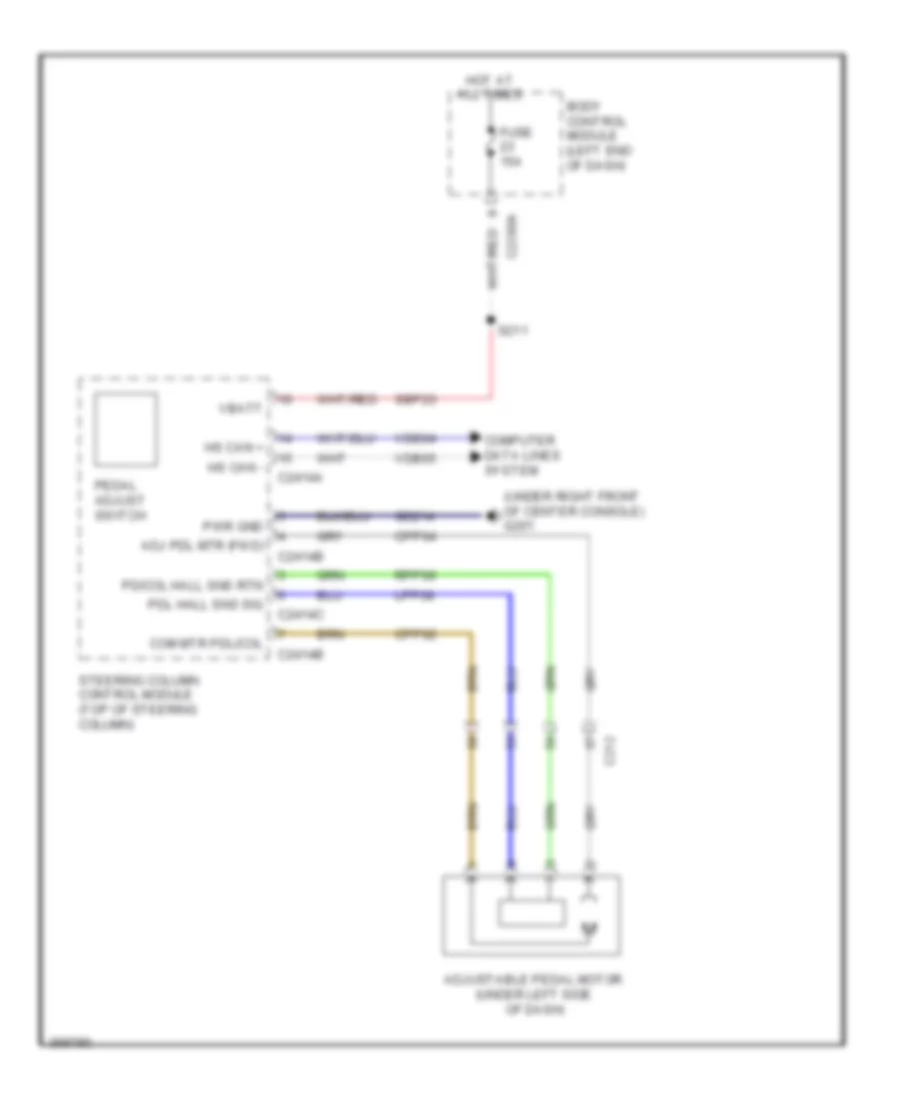

Электросхема регулировки положения педалей для Ford Explorer XLT 2012

Электросхема регулировки положения педалей для Ford Explorer XLT 2012Download PDF file

Электросхема регулировки положения педалей для Ford Explorer XLT 2012 - Список элементов:

  • (under right front of center console) g201
  • Adj pdl mtr (fwd)
  • Adjustable pedal motor (under left side of dash)
  • Body control module (left end of dash)
  • C212
  • C2280a
  • C2414a
  • C2414b
  • C2414c
  • Com mtr pdl/col
  • Computer data lines system
  • Cpp02
  • Cpp04
  • Fuse 15a
  • Gd214
  • Hot at all times
  • Hs can +
  • Hs can -
  • Lpp08
  • Pd/col hall sns rtn
  • Pdl hall sns sig
  • Pedal adjust switch
  • Pwr gnd
  • Rpp06
  • S211
  • Sbp23
  • Steering column control module (top of steering column)
  • Vbatt
  • Vdb04
  • Vdb05

Электросхема климат контроля сидений для Ford Explorer XLT 2012

Электросхема климат контроля сидений для Ford Explorer XLT 2012 - Список элементов:

  • (driver seat wiring harness, in breakout to driver's side seat cushion thermo electric device) s366
  • Battery junction box (bjb) (left side of engine compt)
  • C228a
  • C3050
  • C311
  • C312
  • C3265a
  • C3265b
  • C3265c
  • C340
  • Cbx01
  • Chs01
  • Chs02
  • Chs03
  • Chs06
  • Chs07
  • Chs08
  • Chs09
  • Chs14
  • Chs29
  • Computer data lines system
  • Dbckblwctl
  • Dbksensrt
  • Dbkted+
  • Dbkted-
  • Dblwr+
  • Dblwr-
  • Dcshcblwctl
  • Dcshsens
  • Dcshsensrt
  • Dcshted+
  • Dcshted-
  • Driver climate controlled seat switches
  • Driver seat backrest thermo-electric device (ted) (driver's seat back)
  • Driver seat cushion thermo-electric device (ted) (under driver's seat)
  • Drv batt
  • Dual climate controlled seat module (dcsm)
  • Front controls interface module (fcim)
  • Fuse 30a
  • G302 (right rear quarter panel)
  • Gd903
  • Gnd
  • Hot at all times
  • Hvac module
  • I can+
  • I can-
  • Ms can+
  • Ms can-
  • Nca
  • Pass batt
  • Passenger climate controlled seat switches
  • Passenger seat backrest thermo-electric device (ted) (front passenger's seatback)
  • Passenger seat cushion thermo-electric device (ted) (under front passenger's seat)
  • Pbckblwctl
  • Pbksens
  • Pbksensrt
  • Pbkted+
  • Pbkted-
  • Pblwr+
  • Pblwr-
  • Pcshcblwctl
  • Pcshsens
  • Pcshsensrt
  • Pcshted+
  • Pcshted-
  • Rhs01
  • Rhs02
  • Rhs03
  • Rhs05
  • Rhs06
  • Rhs07
  • Rhs08
  • Rhs10
  • Rhs20
  • S341
  • S350
  • S364 (passenger seat wiring assembly, near breakout to dual climate controlled seat module)
  • S365 (passenger seat wiring assembly, near breakout to dual climate controlled seat module)
  • S367 (driver seat wiring harness, in breakout to driver's side seat cushion thermo electric device)
  • Vdb06
  • Vdb07
  • Vdb13
  • Vdb14
  • Vhs18
  • Vhs21
  • Vhs23
  • Vhs26
  • Vhs27
  • Vhs36

Электросхема подогрева сидений для Ford Explorer XLT 2012

Электросхема подогрева сидений для Ford Explorer XLT 2012 - Список элементов:

  • Air conditioning system
  • Battery junction box (bjb) (left side of engine compt)
  • C210
  • C211
  • C228a
  • C228b
  • C3050
  • C311
  • C312
  • C340
  • Chs02
  • Chs07
  • Computer data lines system
  • Driver climate controlled seat switches
  • Driver side seat backrest heater mat
  • Drv heated seat element
  • Drv htr feed
  • Drv st ntc sense
  • Front controls interface module (fcim)
  • Fuse 30a
  • G200 (under left front of center console)
  • G301 (left rear quarter panel)
  • G302 (right rear quarter panel)
  • Gd215
  • Gnd
  • Hot at all times
  • Hvac module
  • I can+
  • I can-
  • Left front seat cushion heater mat
  • Ms can+
  • Ms can-
  • Nca
  • Pass heated seat element
  • Pass htr feed
  • Pass st ntc sense
  • Passenger climate controlled seat switches
  • Passenger side seat backrest heater mat
  • Return
  • Rh111
  • Right front seat cushion heater mat
  • S213
  • S216 (main wiring harness, near breakout to front control/display interface module)
  • S313 (body main wiring assembly, near breakout to g300)
  • S350
  • S352
  • Sbb28
  • Vdb06
  • Vdb07
  • Vdb13
  • Vdb14
  • Vhs26
  • Vhs27

Электросхема привода сидений, сиденье водителя с 10 путями для Ford Explorer XLT 2012

Электросхема привода сидений, сиденье водителя с 10 путями для Ford Explorer XLT 2012 - Список элементов:

  • (not used)
  • Aft
  • Battery junction box (bjb) (left side of engine compt)
  • C213
  • C3050
  • C311
  • Deflate
  • Down
  • Driver seat front height motor
  • Driver seat horizontal motor
  • Driver seat lumbar motor
  • Driver seat rear height motor
  • Driver seat recliner motor
  • Driver side front seat control switch
  • Front height
  • Fuse 30a
  • Fwd
  • G301 (left rear quarter panel)
  • Horizontal
  • Hot at all times
  • Incline
  • Inflate
  • Lumbar
  • Rear height
  • Recline
  • S352 (w/ heated seats)

Электросхема привода сидений, сиденье пассажира с 10 путями для Ford Explorer XLT 2012

Электросхема привода сидений, сиденье пассажира с 10 путями для Ford Explorer XLT 2012 - Список элементов:

  • Aft
  • Battery junction box (bjb) (left side of engine compt)
  • C213
  • C312
  • C340
  • Deflate
  • Down
  • Front height
  • Fuse 30a
  • Fwd
  • G302 (right rear quarter panel)
  • Horizontal
  • Hot at all times
  • Incline
  • Inflate
  • Lumbar
  • Not used
  • Passenger seat front height motor
  • Passenger seat horizontal motor
  • Passenger seat lumbar motor
  • Passenger seat rear height motor
  • Passenger seat recliner motor
  • Passenger side front seat control switch
  • Rear height
  • Recline
  • S350

Электросхема привода сидений, сиденье водителя с 6 путями для Ford Explorer XLT 2012

Электросхема привода сидений, сиденье водителя с 6 путями для Ford Explorer XLT 2012 - Список элементов:

  • Aft
  • Battery junction box (bjb) (left side of engine compt)
  • C213
  • C311
  • Down
  • Driver seat front height motor
  • Driver seat horizontal motor
  • Driver seat rear height motor
  • Driver side front seat control switch
  • Front height
  • Fuse 30a
  • Fwd
  • G301 (left rear quarter panel)
  • Horizontal
  • Hot at all times
  • Rear height

Электросхема привода сидений, сиденье пассажира С 6 путями для Ford Explorer XLT 2012

Электросхема привода сидений, сиденье пассажира С 6 путями для Ford Explorer XLT 2012 - Список элементов:

  • Aft
  • Battery junction box (bjb) (left side of engine compt)
  • C213
  • C312
  • Down
  • Fore
  • Front height
  • Fuse 30a
  • G302 (right rear quarter panel)
  • Horizontal
  • Hot at all times
  • Passenger seat front height motor
  • Passenger seat horizontal motor
  • Passenger seat rear height motor
  • Passenger side front seat control switch
  • Rear height
  • S350

схема откидного сиденья Второго ряда для Ford Explorer XLT 2012

схема откидного сиденья Второго ряда для Ford Explorer XLT 2012 - Список элементов:

  • Battery junction box (left side of engine compt)
  • Battery saver relay
  • Body control module (left end of dash)
  • C213
  • C2280d
  • C3133
  • C3134
  • Fuse 10a
  • Fuse 20a
  • G300 (left kick panel)
  • G400 (base of right "d" pillar)
  • Hot at all times
  • Left second row power release seat motor
  • Left second row seat control switch
  • Micro
  • Right second row power release seat motor
  • Right second row seat control switch
  • S305
  • S311

Электросхема откидного сиденья третьего ряда для Ford Explorer XLT 2012

Электросхема откидного сиденья третьего ряда для Ford Explorer XLT 2012 - Список элементов:

  • (left rear quarter panel) g301
  • (not used)
  • (seat back control wiring assembly, near breakout to to c423)
  • 3rd row seat (fet)
  • Batt+
  • Battery junction box (left side of engine compt)
  • Battery saver relay
  • Body control module (left end of dash)
  • C213
  • C2280c
  • C2280d
  • C408
  • C422
  • C423
  • C4250a
  • C4250b
  • C4250c
  • C4250d
  • C4250e
  • Cbb18
  • Cps02
  • Cps03
  • Cps04
  • Cps42
  • Cps43
  • Cps44
  • Cps45
  • Cps48
  • Cps49
  • Cps50
  • Cps51
  • Cps56
  • Cps57
  • Cps58
  • Cps71
  • Cps72
  • Cps74
  • Cpso5
  • Enable
  • Fold
  • Fold/tailgate sw
  • Fuse 10a
  • Fuse 30a
  • G103 (left front corner of engine compt)
  • Gd149
  • Gnd
  • Hot at all times
  • Left
  • Left hall rec pos
  • Left hall stow pos
  • Left latch pos
  • Left latch sw
  • Left mot rec pos
  • Left mot stow pos
  • Left third row power seat latch (under left third row seat)
  • Left third row power seat latch swtch (under left third row seat)
  • Left third row power-fold seat motor
  • Left third row power-stow seat motor
  • Lps12
  • Lps13
  • Lps77
  • Lps78
  • Micro
  • Ms can +
  • Ms can -
  • Normal
  • Normal stow sw
  • Power-fold seat module (under left third row seat)
  • Return latch sw
  • Return sw
  • Right
  • Right hall rec pos
  • Right hall stow pos
  • Right latch pos
  • Right latch sw
  • Right mot rec pos
  • Right mot stow pos
  • Right third row power seat latch (under right third row seat)
  • Right third row power seat latch swtch (under right third row seat)
  • Right third row power-fold seat motor
  • Right third row power-stow seat motor
  • Rps12
  • Rps13
  • Rps77
  • S126
  • S305
  • S415 (seat back control wiring assembly, near breakout to power fold seat module)
  • S416 (seat back control wiring assembly, near breakout to power fold seat module)
  • S417
  • Seat select sw
  • Stow
  • Tail
  • Third row power seat relay
  • Third row seat control switch
  • Vdb06
  • Vdb07
