HORN

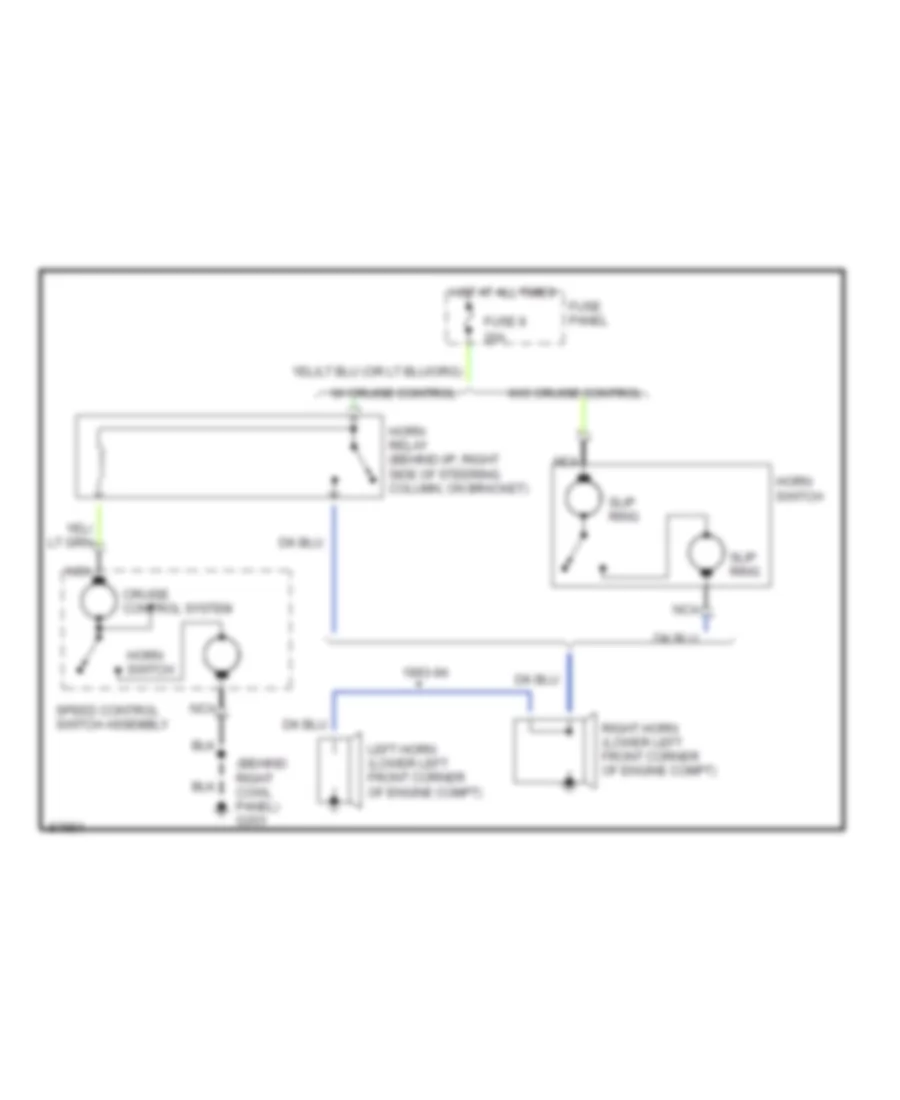

Horn Wiring Diagram for Ford Ranger 1993

Horn Wiring Diagram for Ford Ranger 1993 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Horn Wiring Diagram for Ford Ranger 1993:

  • (behind right cowl panel) g203
  • 1993-94
  • 20a
  • Cruise control system
  • Fuse 8
  • Fuse panel
  • Horn relay (behind i/p, right side of steering column, on bracket)
  • Horn switch
  • Hot at all times
  • Left horn (lower left front corner of engine compt)
  • Nca
  • Right horn (lower left front corner of engine compt)
  • Slip ring
  • Speed control switch assembly
  • W/ cruise control
  • W/o cruise control
