Электросхемы ПРИВОД ЛЮКА И КРЫШИ GMC Sierra 3500 HD 2009

ПРИВОД ЛЮКА И КРЫШИ

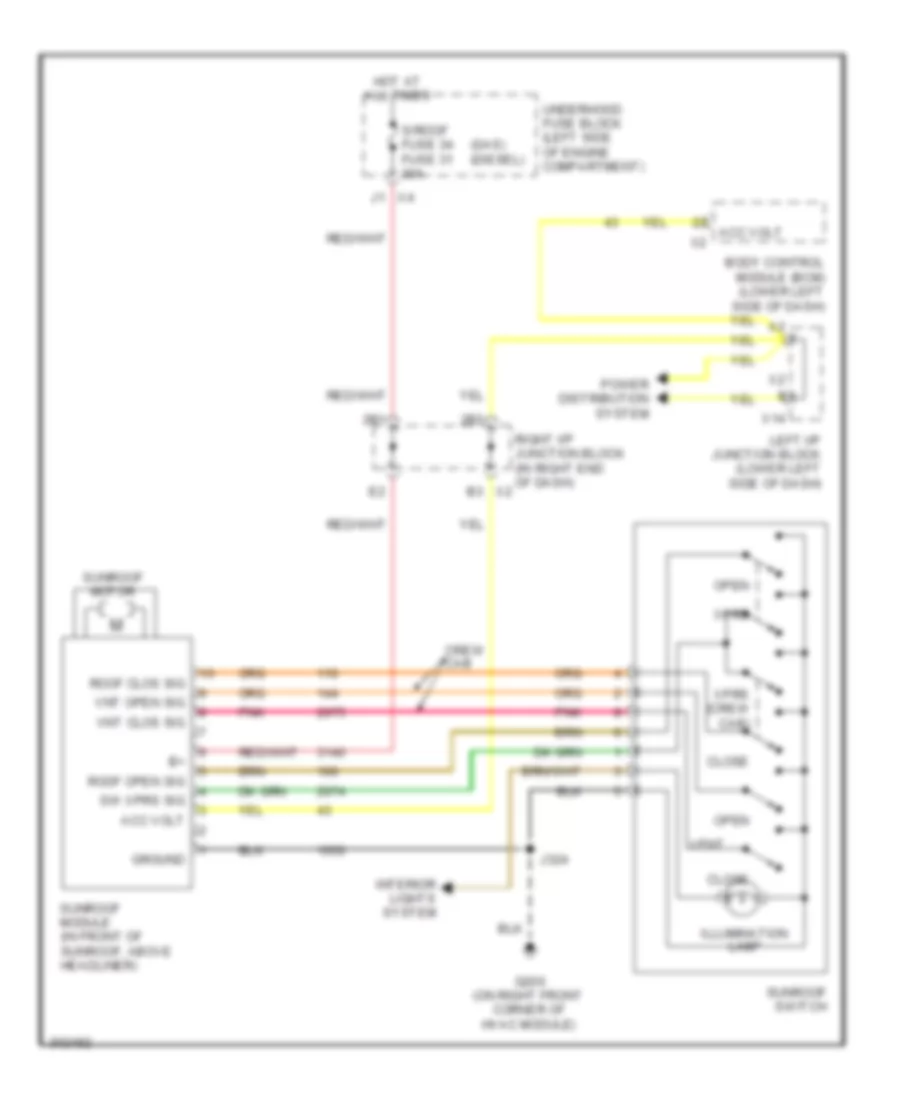

Электросхема привода люка или крыши для GMC Sierra 3500 HD 2009

Электросхема привода люка или крыши для GMC Sierra 3500 HD 2009 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

Электросхема привода люка или крыши для GMC Sierra 3500 HD 2009 - Список элементов:

  • (gas) (diesel)
  • 2b1
  • 2b3
  • Acc volt
  • Body control module (bcm) (lower left side of dash)
  • Close
  • Crew cab
  • G200 (on right front corner of hvac module)
  • Ground
  • Hot at all times
  • Illumination lamp
  • Interior lights system
  • J324
  • Left i/p junction block (lower left side of dash)
  • Open
  • Pnk
  • Power distribution system
  • Right i/p junction block (in right end of dash) x2
  • Roof clos sig
  • Roof open sig
  • S/roof fuse 34 fuse 31 30a
  • Sunroof module (in front of sunroof, above headliner)
  • Sunroof motor
  • Sunroof switch
  • Sw xprs sig
  • Underhood fuse block (left side of engine compartment)
  • Vent
  • Vnt clos sig
  • Vnt open sig
  • X14
  • Xprs
  • Xprs (crew cab)
