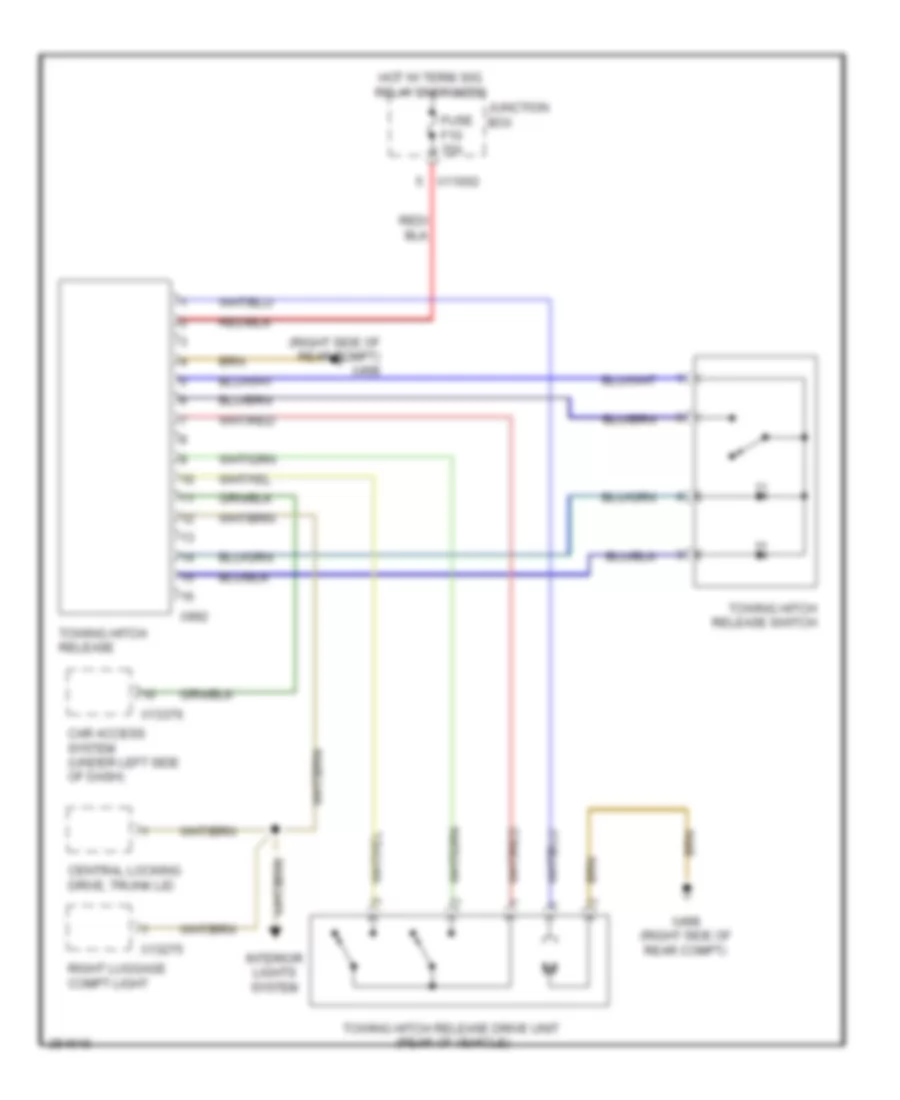

Active Bodyworks Wiring Diagram for BMW 328i 2007

List of elements for Active Bodyworks Wiring Diagram for BMW 328i 2007:

• (right side of rear compt) x498
• Car access system (under left side of dash)
• Central locking drive, trunk lid
• Fuse f10 15a
• Hot w/ term 30g relay energized
• Interior lights system
• Junction box
• Right luggage compt light
• Towing hitch release
• Towing hitch release drive unit (rear of vehicle)
• Towing hitch release switch
• X11002
• X13275
• X13376
• X498 (right side of rear compt)
• X992
