COMPUTER DATA LINES

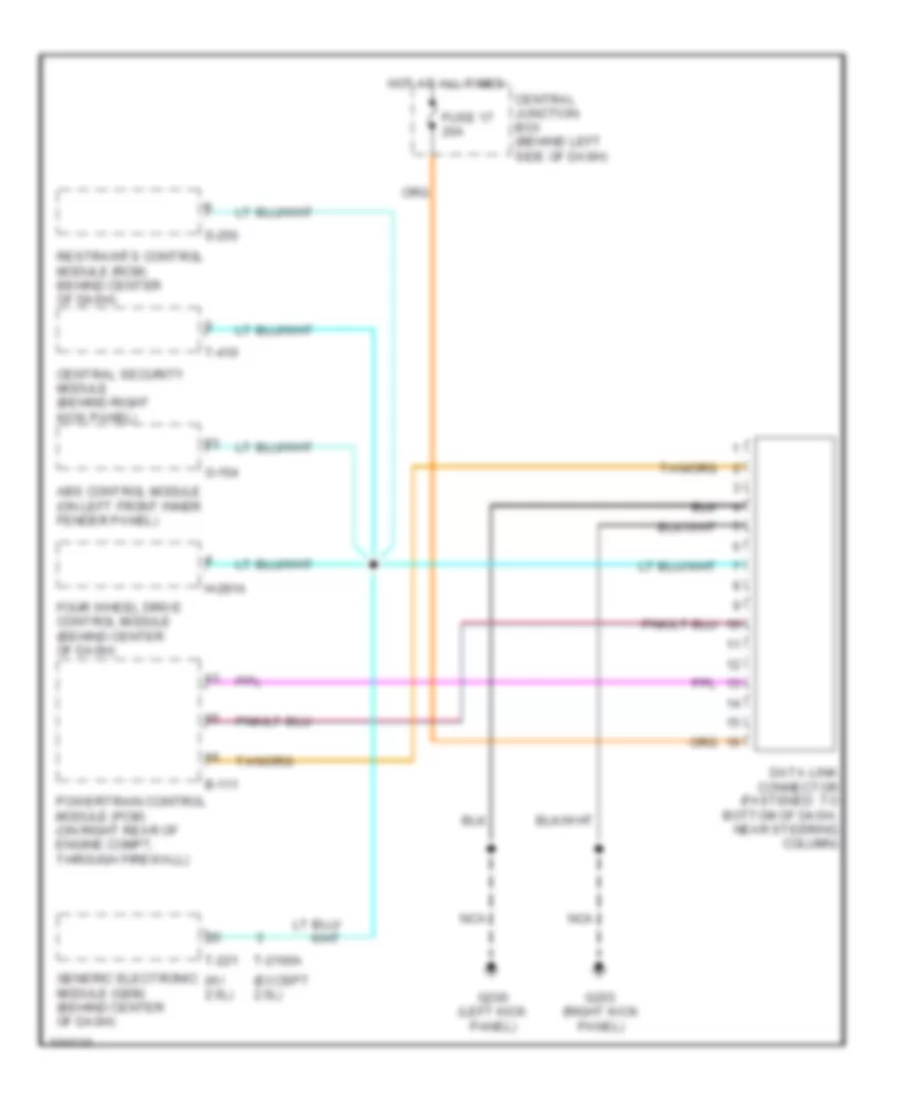

Computer Data Lines for Mazda B2500 SE 2001

Computer Data Lines for Mazda B2500 SE 2001 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Computer Data Lines for Mazda B2500 SE 2001:

  • (except 2.5l)
  • (w/ 2.5l)
  • Abs control module (on left front inner fender panel)
  • B-111
  • Central junction box (behind left side of dash)
  • Central security module (behind right kick panel)
  • Data link connector (fastened to bottom of dash, near steering column)
  • Four wheel drive control module (behind center of dash)
  • Fuse 17 20a
  • G200 (left kick panel)
  • G203 (right kick panel)
  • Generic electronic module (gem) (behind center of dash)
  • H-281a
  • Hot at all times
  • Nca
  • O-154
  • Powertrain control module (pcm) (on right rear of engine compt, through firewall)
  • Restraints control module (rcm) behind center of dash)
  • S-250
  • T-2100a
  • T-221
  • T-410
