COMPUTER DATA LINES – Suzuki Esteem GLX+ 1997 – SYSTEM WIRING DIAGRAMS

COMPUTER DATA LINES

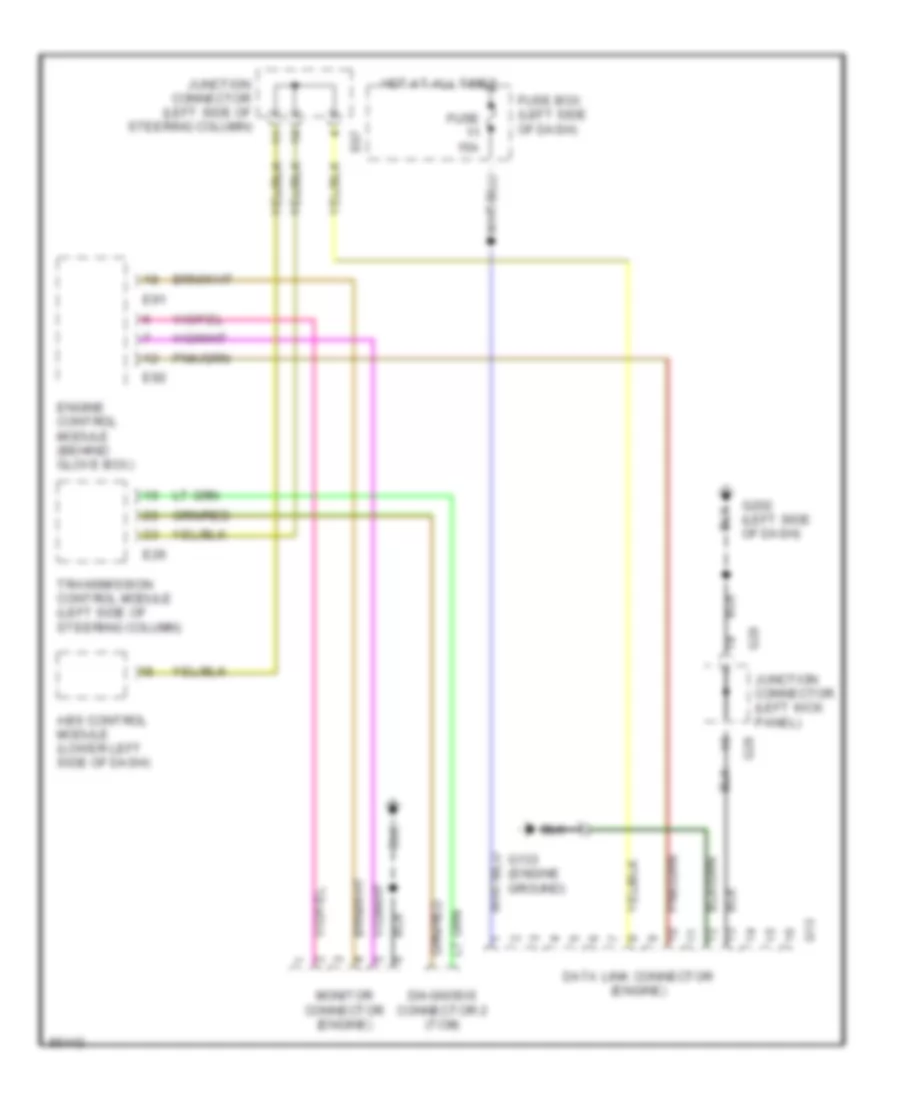

Computer Data Lines for Suzuki Esteem GLX+ 1997

List of elements for Computer Data Lines for Suzuki Esteem GLX+ 1997:

• Abs control module (lower left side of dash)
• Data link connector (engine)
• Diagnosis connector 2 (tcm)
• E07
• E26
• E91
• E92
• Engine control module (behind glove box)
• Fuse 15a
• Fuse box (left side of dash)
• G13
• G133 (engine ground)
• G202 (left side of dash)
• G28
• Hot at all times
• Junction connector (left kick panel)
• Junction connector (left side of steering column)
• Monitor connector (engine)
• Transmission control module (left side of steering column)
