DEFOGGERS – Suzuki Esteem GLX+ 1996 – SYSTEM WIRING DIAGRAMS

DEFOGGERS

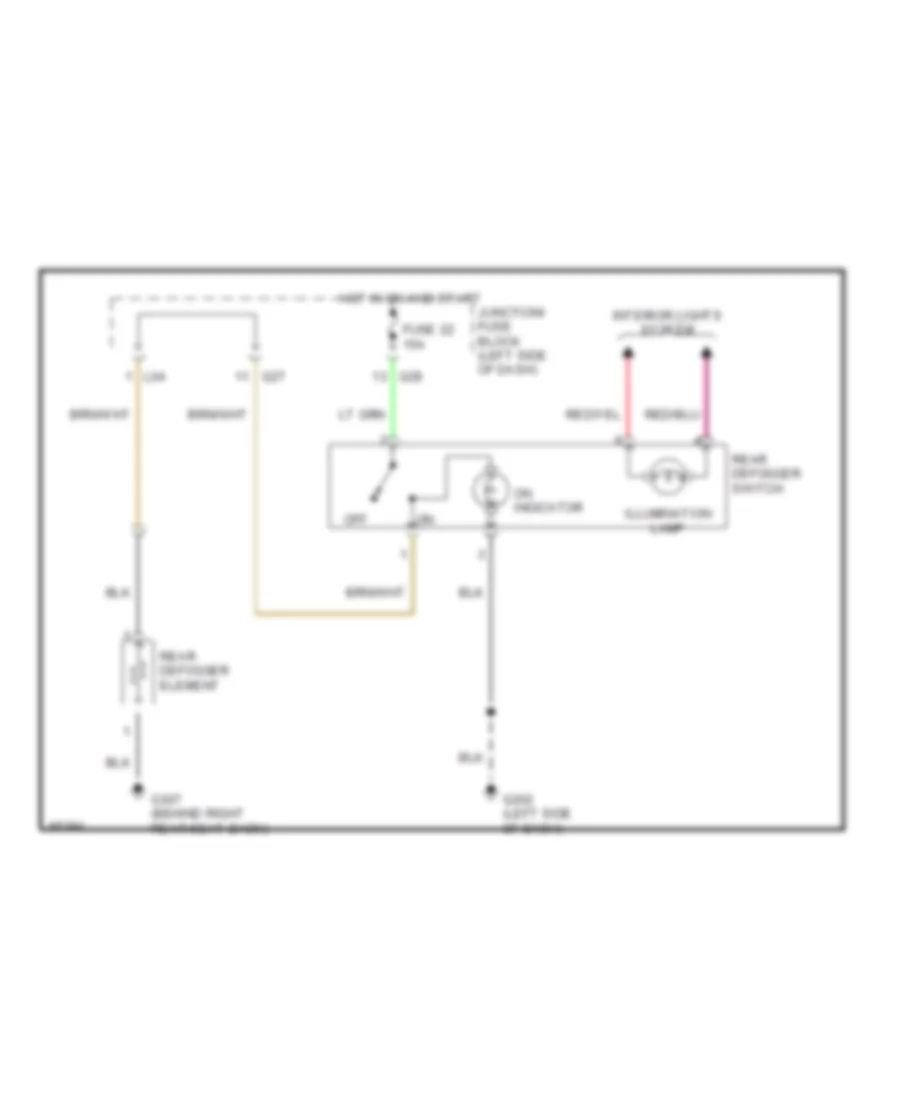

Defogger Wiring Diagram for Suzuki Esteem GLX+ 1996

List of elements for Defogger Wiring Diagram for Suzuki Esteem GLX+ 1996:

• Fuse 22 15a
• G202 (left side of dash)
• G27
• G28
• G307 (behind right rear seat back)
• Hot in on and start
• Illumination lamp
• Interior lights system
• Junction/ fuse block (left side of dash)
• L04
• Off
• On indicator
• Rear defogger switch
• Rear defogger element
