ELECTRONIC POWER STEERING

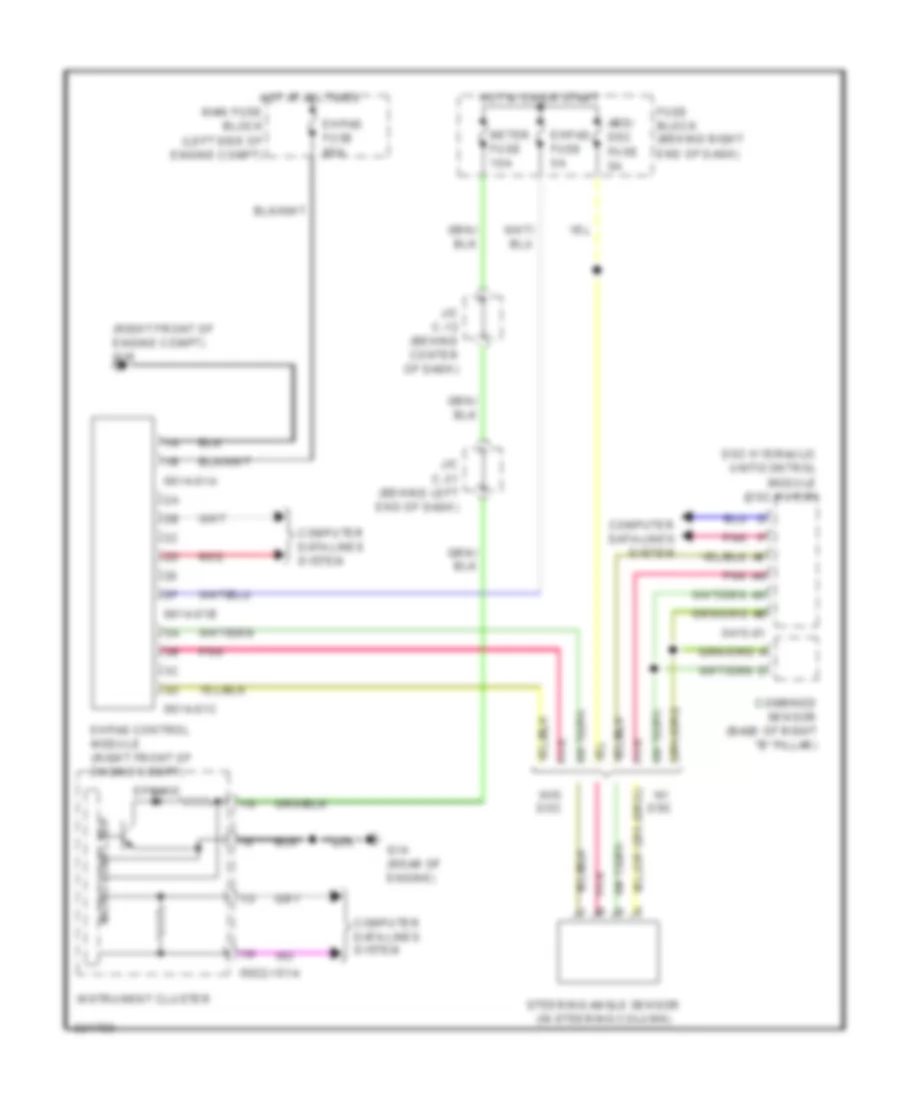

Electronic Power Steering Wiring Diagram for Mazda 5 Touring 2010

Electronic Power Steering Wiring Diagram for Mazda 5 Touring 2010 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Electronic Power Steering Wiring Diagram for Mazda 5 Touring 2010:

  • (right front of engine compt) g16
  • 0415-01
  • 0614-01a
  • 0614-01b
  • 0614-01c
  • 0922-101a
  • Abs/ dsc fuse 5a
  • Combined sensor (base of right "b" pillar)
  • Computer data lines system
  • Dsc hydraulic unit/control module (dsc hu/cm)
  • Ehpas control module (right front of engine compt)
  • Ehpas fuse 5a
  • Ehpas fuse 80a
  • Eps ind
  • Fuse block (behind right end of dash)
  • G14 (rear of engine)
  • Hot at all times
  • Hot in on or start
  • Instrument cluster
  • J/c c-12 (behind center of dash)
  • J/c c-31 (behind left end of dash)
  • Main fuse block (left side of engine compt)
  • Meter fuse 10a
  • Micro computer
  • Pnk
  • Red
  • Steering angle sensor (in steering column)
  • W/ dsc
  • W/o dsc
