Электросхемы ЦЕНТРАЛЬНЫЙ ЗАМОК Nissan Titan XE 2004

ЦЕНТРАЛЬНЫЙ ЗАМОК

Электросхема центрального замка, двойная кабина (1 из 2) для Nissan Titan XE 2004

Электросхема центрального замка, двойная кабина (1 из 2) для Nissan Titan XE 2004 - Список элементов:

58

• 4q m39
• 6t m60
• Acc sw
• Anti-pinch serial link
• Bat (f/l)
• Bat (fuse)
• Bat saver output
• Body control module (bcm) (behind left side of dash)
• Can-h
• Can-l
• Closed
• Computer data lines system
• Door lock output (all)
• Door sw (as)
• Door sw (dr)
• Door sw (rl)
• Door sw (rr)
• Door unlock output
• Door unlock output (dr)
• Exterior lights system
• Flasher output (left)
• Flasher output (right)
• Fuse & fusible link block (left front of engine compt)
• Fuse & relay box (right rear of engine compt)
• Fuse 10a
• Fuse 15a
• Fuse block (j/b) (behind left side of dash)
• Fusible link f 50a
• Gnd (power)
• Hot at all times
• Hot in acc or on
• Hot in on or start
• Ign sw
• Inserted
• Interior lights system
• Key sw
• Key switch
• Left front door switch (front of left rear door)
• Left rear door switch (at left "c" pillar)
• M18
• M19
• M20
• M3 1n
• M61 (behind center of dash)
• Open
• Pnk
• Power windows system
• Red
• Remote keyless entry receiver (behind right side of dash)
• Removed
• Right front door switch (at right "b" pillar)
• Right rear door switch (at right "c" pillar)
• Room lamp output
• Sig gnd
• Signal
• Signal gnd
• Signal pwr
• Step lamp output

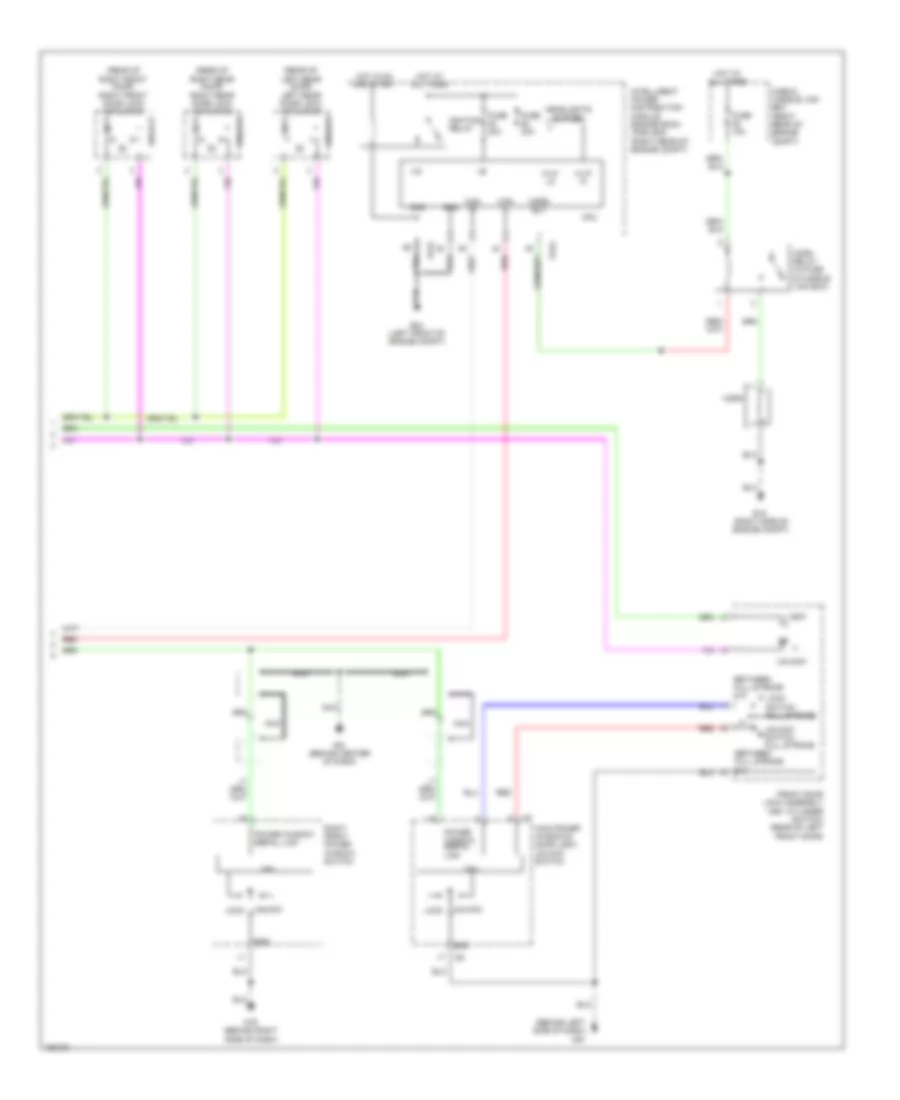

Электросхема центрального замка, двойная кабина (2 из 2) для Nissan Titan XE 2004

Электросхема центрального замка, двойная кабина (2 из 2) для Nissan Titan XE 2004 - Список элементов:

39

• (behind left side of dash) m57
• (rear of left rear door) left rear door lock actuator
• (rear of right front door) right front door lock actuator
• (rear of right rear door) right rear door lock actuator
• +ig
• Between full stroke & n
• Can h
• Can l
• Cpu
• E122
• E124
• E15 (right side of engine compt)
• E24 (left front of engine compt)
• Front door lock assembly (key cylinder switch) (rear of left front door)
• Fuse & fusible link box (right rear of engine compt)
• Fuse 15a
• Fuse 20a
• Gnd
• H/lp hi
• H/lp lo
• Headlights system
• Horn
• Horn relay (in fuse & fusible link box)
• Horn rly
• Hot at all times
• Hot in on and start
• Ignition relay
• Intelligent power distribution module engine room (ipdm e/r) (right rear of engine compt)
• Lock
• Lock switch full stroke
• M61 (behind center of dash)
• M79 (behind right side of dash)
• Main power window & door lock/ unlock switch
• Nca
• Power window serial link
• Red
• Right front power window switch
• Unlock
• Unlock switch full stroke

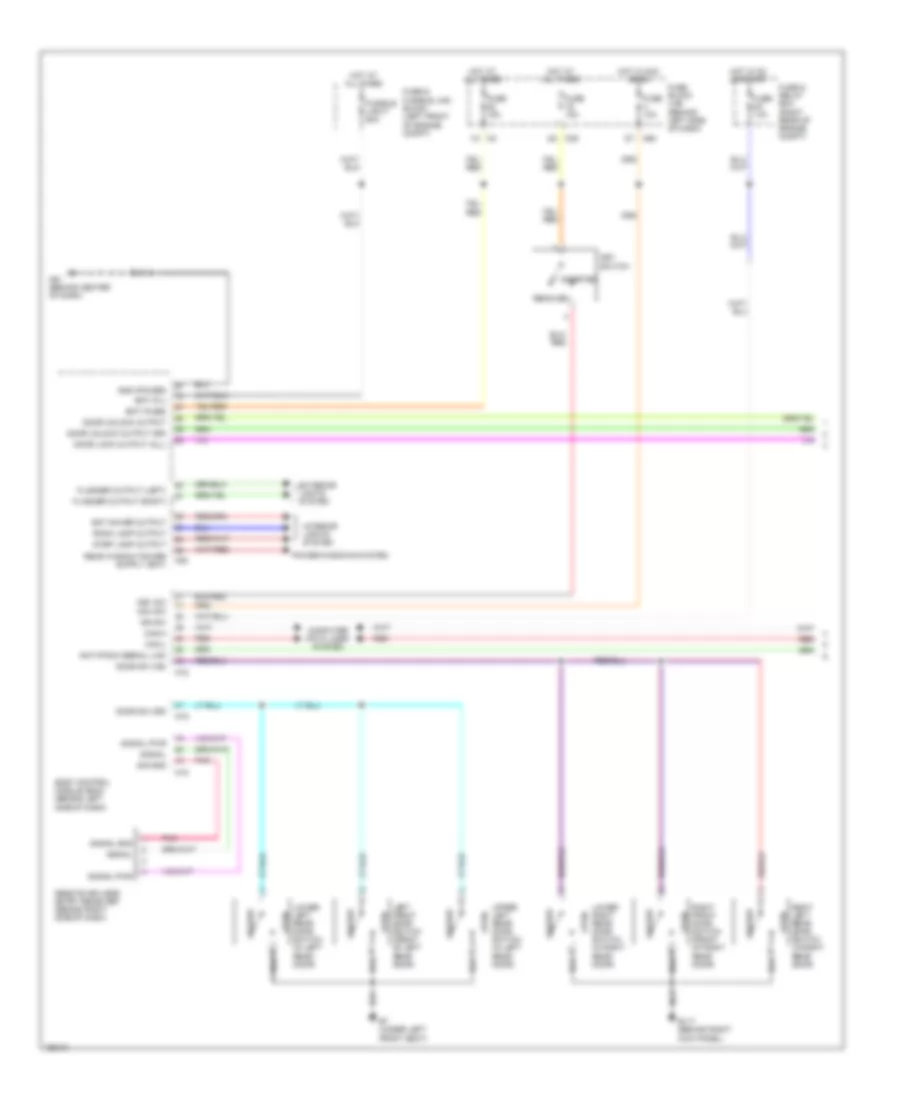

Электросхема центрального замка, кроме двойной кабины (1 из 2) для Nissan Titan XE 2004

Электросхема центрального замка, кроме двойной кабины (1 из 2) для Nissan Titan XE 2004 - Список элементов:

60

• 4q m39
• 6t m60
• Acc sw
• Anti-pinch serial link
• B117 (behind right kick panel)
• B7 (under left front seat)
• Bat (f/l)
• Bat (fuse)
• Bat saver output
• Body control module (bcm) (behind left side of dash)
• Can-h
• Can-l
• Closed
• Computer data lines system
• Door lock output (all)
• Door sw (as)
• Door sw (dr)
• Door unlock output
• Door unlock output (dr)
• Exterior lights system
• Flasher output (left)
• Flasher output (right)
• Fuse & fusible link block (left front of engine compt)
• Fuse & relay box (right rear of engine compt)
• Fuse 10a
• Fuse 15a
• Fuse block (j/b) (behind left side of dash)
• Fusible link f 50a
• Gnd (power)
• Hot at all times
• Hot in acc or on
• Hot in on or start
• Ign sw
• Inserted
• Interior lights system
• Key sw
• Key switch
• Left front door switch (front of left rear door)
• Lower left rear door switch (in left rear door)
• Lower right rear door switch (in right rear door)
• M18
• M19
• M20
• M3 1n
• M61 (behind center of dash)
• Open
• Pnk
• Power windows system
• Red
• Remote keyless entry receiver (behind right side of dash)
• Removed
• Right front door switch (front of right rear door)
• Right left rear door switch (in right rear door)
• Room lamp output
• Sig gnd
• Signal
• Signal gnd
• Signal pwr
• Step lamp output
• Upper left rear door switch (in left rear door)

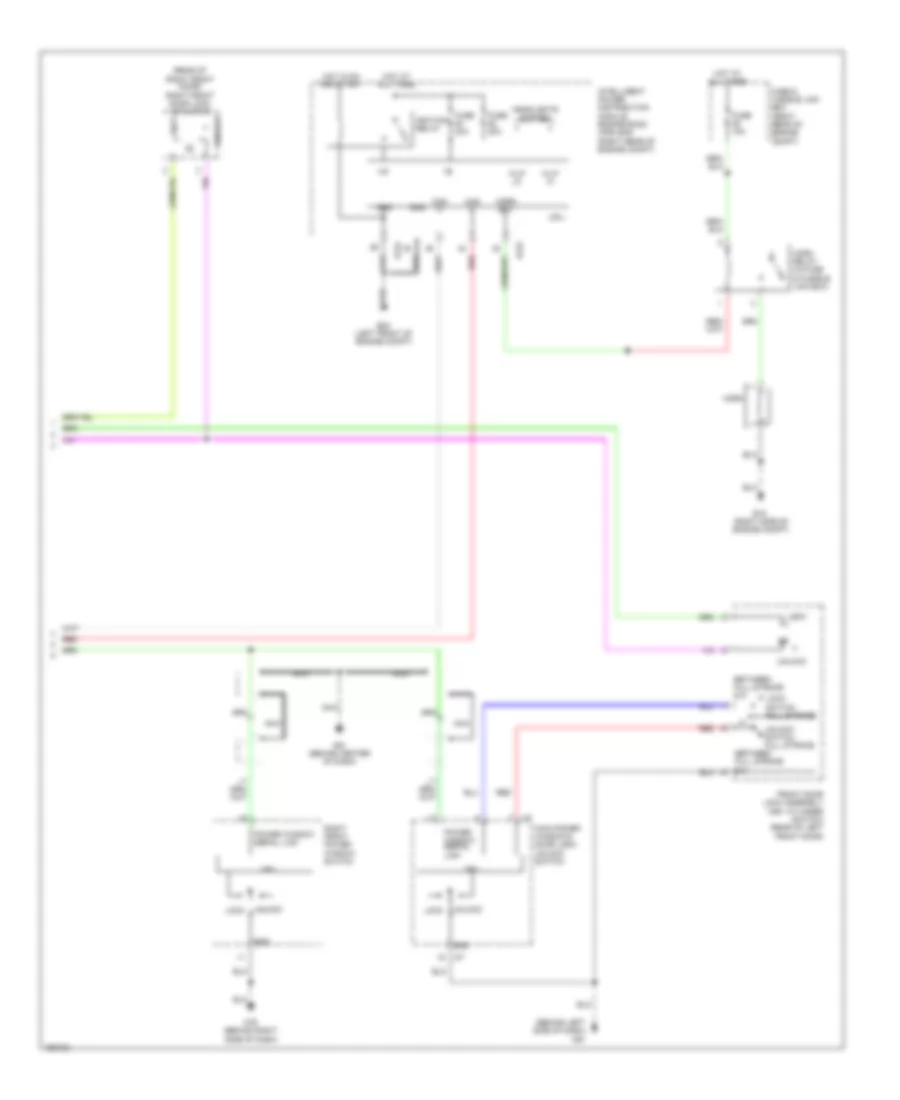

Электросхема центрального замка, кроме двойной кабины (2 из 2) для Nissan Titan XE 2004

Электросхема центрального замка, кроме двойной кабины (2 из 2) для Nissan Titan XE 2004 - Список элементов:

37

• (behind left side of dash) m57
• (rear of right front door) right front door lock actuator
• +ig
• Between full stroke & n
• Can h
• Can l
• Cpu
• E122
• E124
• E15 (right side of engine compt)
• E24 (left front of engine compt)
• Front door lock assembly (key cylinder switch) (rear of left front door)
• Fuse & fusible link box (right rear of engine compt)
• Fuse 15a
• Fuse 20a
• Gnd
• H/lp hi
• H/lp lo
• Headlights system
• Horn
• Horn relay (in fuse & fusible link box)
• Horn rly
• Hot at all times
• Hot in on and start
• Ignition relay
• Intelligent power distribution module engine room (ipdm e/r) (right rear of engine compt)
• Lock
• Lock switch full stroke
• M61 (behind center of dash)
• M79 (behind right side of dash)
• Main power window & door lock/ unlock switch
• Nca
• Power window serial link
• Red
• Right front power window switch
• Unlock
• Unlock switch full stroke
