Электросхемы ПРИБОРНАЯ ПАНЕЛЬ Nissan Titan XE 2004

ПРИБОРНАЯ ПАНЕЛЬ

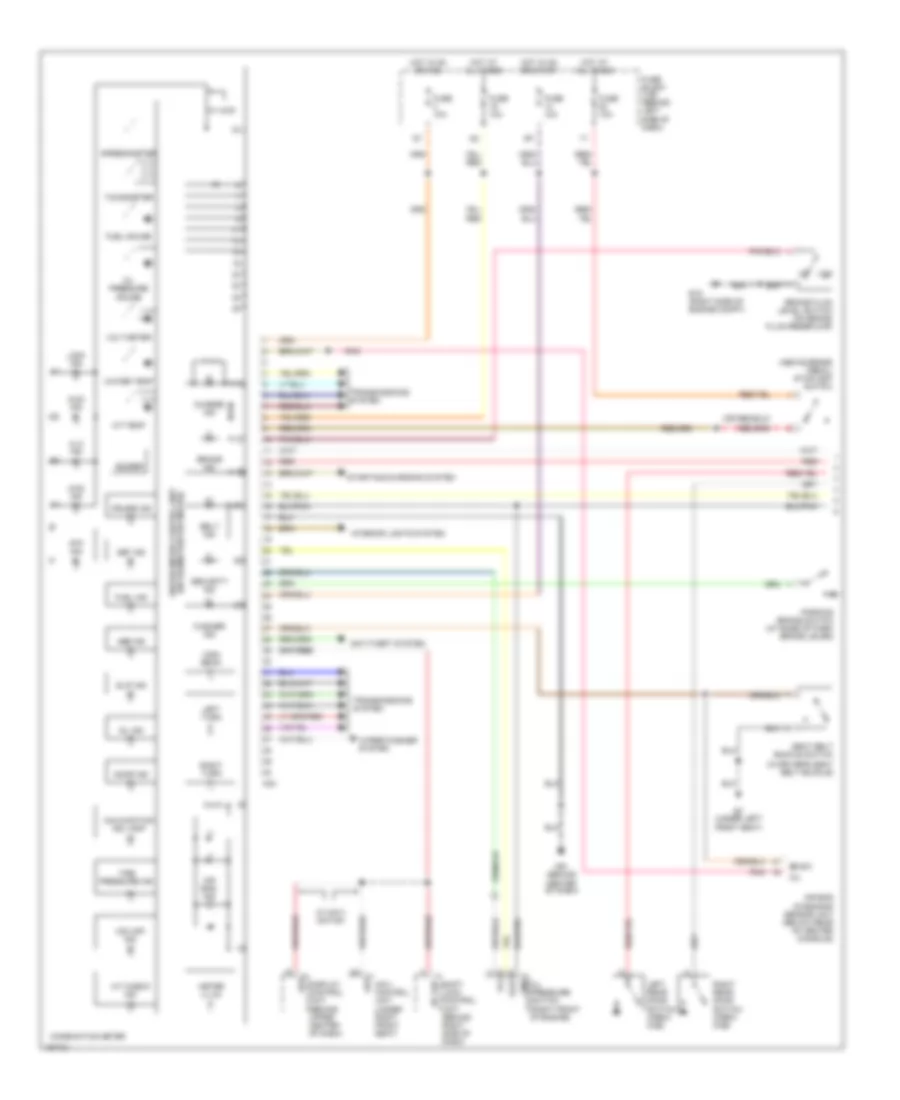

Электросхема панели приборов (1 из 2) для Nissan Titan XE 2004

https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO

Get access to all wiring diagrams of the car

Электросхема панели приборов (1 из 2) для Nissan Titan XE 2004 - Список элементов:

• (above brake pedal) stoplamp switch
• (in driver's seat belt buckle)
• 2wd ind
• 4lo ind
• 4wd ind
• 8p vsp
• A/t check ind
• A/t temp
• Abs ind
• Air bag diagnosis sensor unit (below rear of center console)
• Air bag ind
• Anti-theft system
• Atp ind
• B7 (under left front seat)
• Belt ind
• Brake fluid level switch (on brake fluid reservoir)
• Brake ind
• Buzzer
• Charge ind
• Combination meter
• Cruise ind
• Display control unit (behind upper center of dash)
• Door ind
• E15 (right side of engine compt)
• Fuel gauge
• Fuel ind
• Fuse 10a
• Fuse block (j/b) (behind left side of dash)
• Gnd
• High beam
• Hot at all times
• Hot in on or acc
• Hot in on or start
• Interior lights system
• Left rear door switch (crew cab)
• Left turn
• Lock ind
• Low
• M24
• M61 (behind center of dash)
• Malfunction ind lamp
• Meter illum
• Navi control unit (under right front seat)
• Oil ind
• Oil pressure gauge
• Oil pressure switch (right front of engine)
• Parking brake switch (at base of park brake lever)
• Pnk
• Red
• Right rear door switch (crew cab)
• Right turn
• Sb sw
• Seat belt buckle switch
• Security ind
• Set ind
• Shift lock control unit (behind right side of dash)
• Slip ind
• Spd
• Speedometer
• Starting/charging system
• Tachometer
• Tire pressure ind
• Transmissions system
• Unified meter control unit (w/ odometer/trip meter)
• Vcc
• Vdc off ind
• Volt meter
• Vout
• W/ 4wd
• W/ navi- gation
• W/l
• Washer ind
• Water temp
• Wiper/washer system

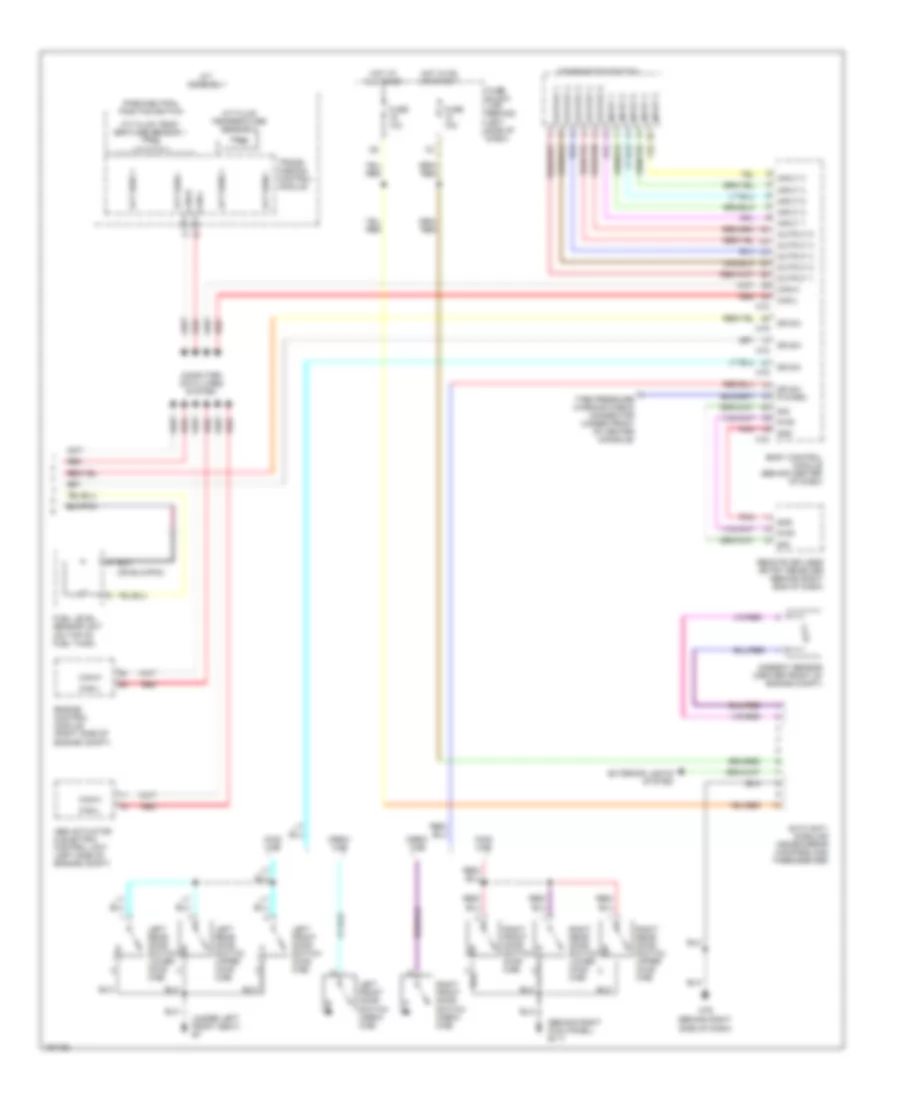

Электросхема панели приборов (2 из 2) для Nissan Titan XE 2004

https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO

Get access to all wiring diagrams of the car

Электросхема панели приборов (2 из 2) для Nissan Titan XE 2004 - Список элементов:

• (behind right kick panel) b117
• (behind right side of dash)
• (under left front seat) b7
• A/t assembly
• A/t fluid temp- erature sensor 1
• A/t fluid temperature sensor 2
• Abs actuator & electric control unit (left side of engine compt)
• Aft sen1 +
• Aft sen1 -
• Aft sen2 +
• Aft sen2 -
• Ambient sensor (center front of engine compt)
• Auto anti- dazzling inside mirror (compass and thermometer)
• Body control module (behind center of dash)
• Can-h
• Can-l
• Combination switch
• Computer data lines system
• Crew cab
• Dr sw
• Dr sw
• Dr sw p/warn
• Engine control module (right side of engine compt)
• Exterior lights system
• Fuel level sensor unit (on top of fuel tank)
• Fuse 10a
• Fuse block (j/b) (behind left side of dash)
• Gnd
• Hot at all times
• Hot in on or start
• Input 1
• Input 2
• Input 3
• Input 4
• Input 5
• King cab
• Left front door switch (crew cab)
• Left front door switch (king cab)
• Left rear door switch lower (king cab)
• Left rear door switch upper (king cab)
• M18
• M19
• M79
• Output 1
• Output 2
• Output 3
• Output 4
• Output 5
• Park/neutral position switch
• Pnk
• Pwr
• Red
• Remote keyless entry receiver (behind right end of dash)
• Right front door switch (crew cab)
• Right front door switch (king cab)
• Right rear door switch lower (king cab)
• Right rear door switch upper (king cab)
• Sig
• Tire pressure warning check connector (under front of center console)
• Trans- mission control module
