Электросхемы ПРИВОД ЗЕРКАЛ Nissan Armada SL 2014

ПРИВОД ЗЕРКАЛ

Электросхема зеркала заднего вида с автозатемнением для Nissan Armada SL 2014

Электросхема зеркала заднего вида с автозатемнением для Nissan Armada SL 2014 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Download PDF file

Электросхема зеркала заднего вида с автозатемнением для Nissan Armada SL 2014 - Список элементов:

  • Auto anti- dazzling inside mirror
  • Exterior lights system
  • Fuse 10a
  • Fuse block (j/b) (behind right end of dash)
  • Hot at all times
  • Hot in on or start
  • Left door mirror (at mirror)
  • M158 d3
  • M39 4q
  • M79 (behind right side of dash)

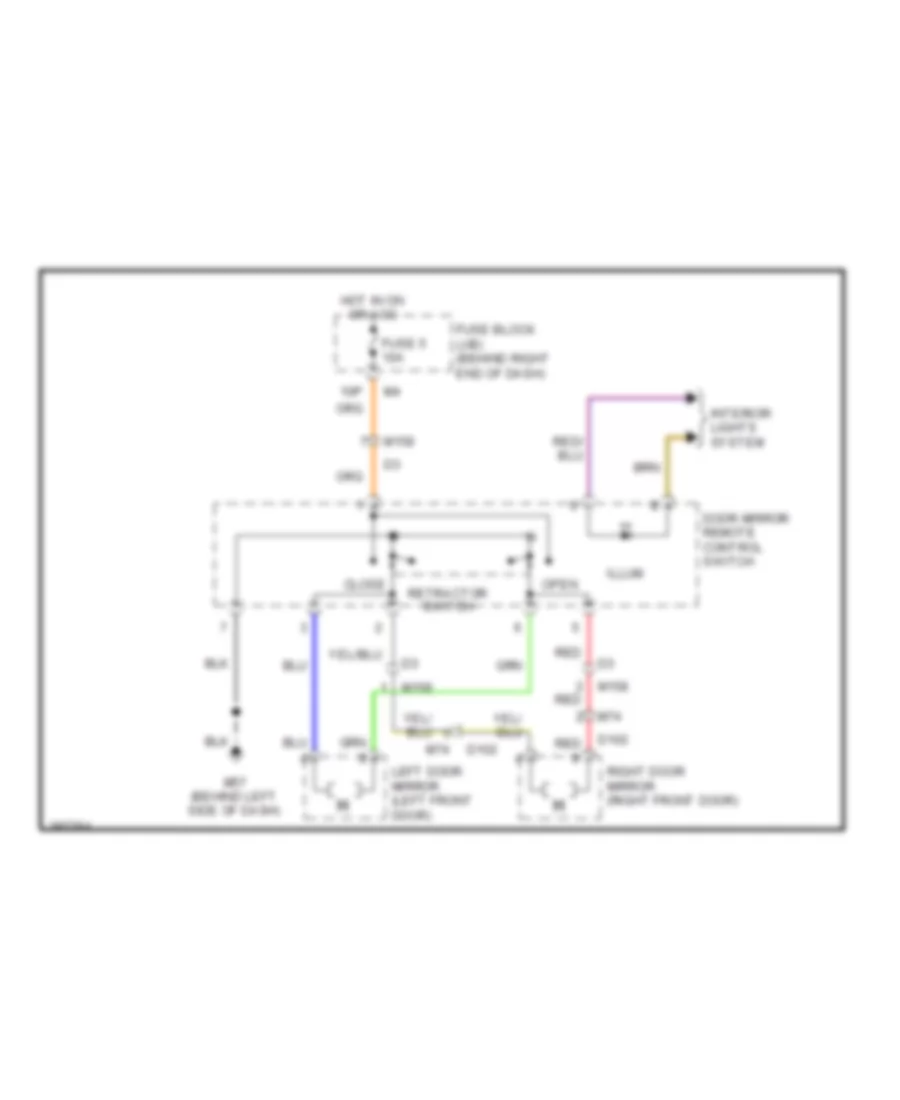

Электросхема складывания зеркал заднего вида для Nissan Armada SL 2014

Электросхема складывания зеркал заднего вида для Nissan Armada SL 2014 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

Электросхема складывания зеркал заднего вида для Nissan Armada SL 2014 - Список элементов:

  • 10p
  • Close
  • D102
  • Door mirror remote control switch
  • Fuse 5 10a
  • Fuse block (j/b) (behind right end of dash)
  • Hot in on or acc
  • Illum
  • Interior lights system
  • Left door mirror (left front door)
  • M158
  • M57 (behind left side of dash)
  • M74
  • Open
  • Red
  • Retractor switch
  • Right door mirror (right front door)

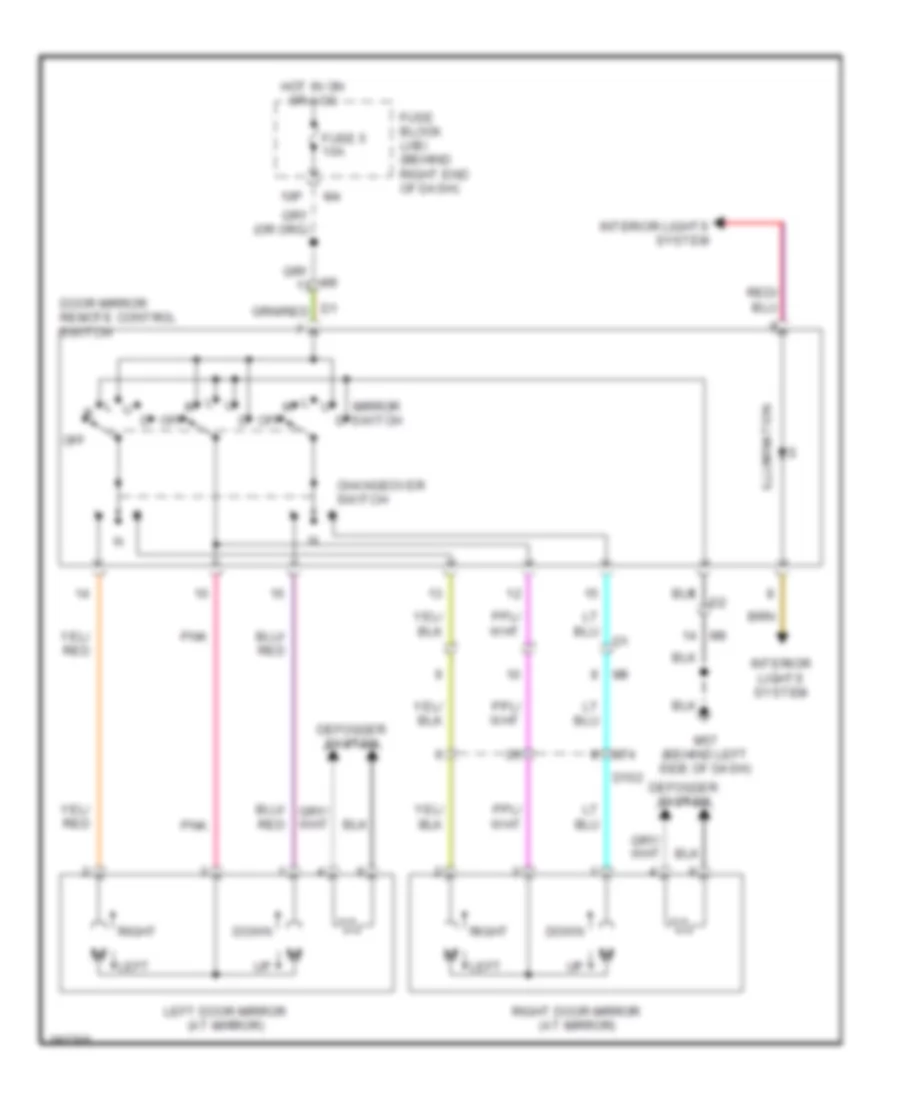

Электросхема привода зеркал для Nissan Armada SL 2014

Электросхема привода зеркал для Nissan Armada SL 2014 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

Электросхема привода зеркал для Nissan Armada SL 2014 - Список элементов:

  • 10p
  • Changeover switch
  • D102
  • Defogger system
  • Door mirror remote control switch
  • Down
  • Fuse 5 10a
  • Fuse block (j/b) (behind right end of dash)
  • Hot in on or acc
  • Illumination
  • Interior lights system
  • Left
  • Left door mirror (at mirror)
  • M57 (behind left side of dash)
  • M74
  • Mirror switch
  • Off
  • Pnk
  • Right
  • Right door mirror (at mirror)
