СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS

Электросхема антиблокировочной тормозной системы АБС (ABS) (1 из 2) для Nissan Armada SL 2014

Электросхема антиблокировочной тормозной системы АБС (ABS) (1 из 2) для Nissan Armada SL 2014 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

Электросхема антиблокировочной тормозной системы АБС (ABS) (1 из 2) для Nissan Armada SL 2014 - Список элементов:

  • (on left side of engine compt) abs actuator & electric unit (control unit)
  • 12c
  • 13c
  • 30c
  • 31c
  • 51g
  • Abs/tcs/vdc control unit
  • Bls
  • Brl-out
  • Bst gnd
  • Bst nc
  • Bst no
  • Bst sig
  • Can-h
  • Can-l
  • Can2-h
  • Can2-l
  • Clstr gnd
  • Computer data lines system
  • Data link connector (behind lower left side of dash)
  • Del s gnd
  • Del s sig
  • Diag-k
  • E119
  • E126 (left front of engine compt)
  • E26
  • E41
  • Exterior lights systems
  • Fl in sol
  • Fl level sw
  • Fl out sol
  • Fr in sol
  • Fr out sol
  • Front pressure sensor (at left side of engine compt)
  • Fuse 10a
  • Fuse block (j/b) (behind right end of dash)
  • Gnd
  • Hot at all times
  • Hot in on or start
  • Hsv1 mc1
  • Hsv2 mc2
  • Ign
  • Ipdm e/r (intelligent power distribution module engine room) (at right rear of engine compt)
  • Left front wheel sensor (at left front steering knuckle assembly)
  • Left rear wheel sensor (at left rear wheel hub assembly)
  • M31 e152
  • M60
  • M91
  • Mot (+)
  • Mot (-)
  • Mtr gnd
  • Mtr sply
  • Pnk
  • Ps1 gnd
  • Ps1 sig
  • Ps2 gnd
  • Ps2 sig
  • Pwr
  • Rear pressure sensor (at left side of engine compt)
  • Right front wheel sensor (at right front steering knuckle assembly)
  • Right rear wheel sensor (at right rear wheel hub assembly)
  • Rl in sol
  • Rl out sol
  • Rr in sol
  • Rr out sol
  • Sig
  • Solenoid valve
  • Stop lamp relay (in fuse & relay box)
  • Stop lamp switch (attached to brake pedal assembly)
  • Usv1 mc1
  • Usv2 mc2
  • Vdc off sw
  • Vlv ecu gnd
  • Vlv ecu sply
  • Wss fl pwr
  • Wss fl sig
  • Wss fr pwr
  • Wss fr sig
  • Wss rl pwr
  • Wss rl sig
  • Wss rr pwr
  • Wss rr sig

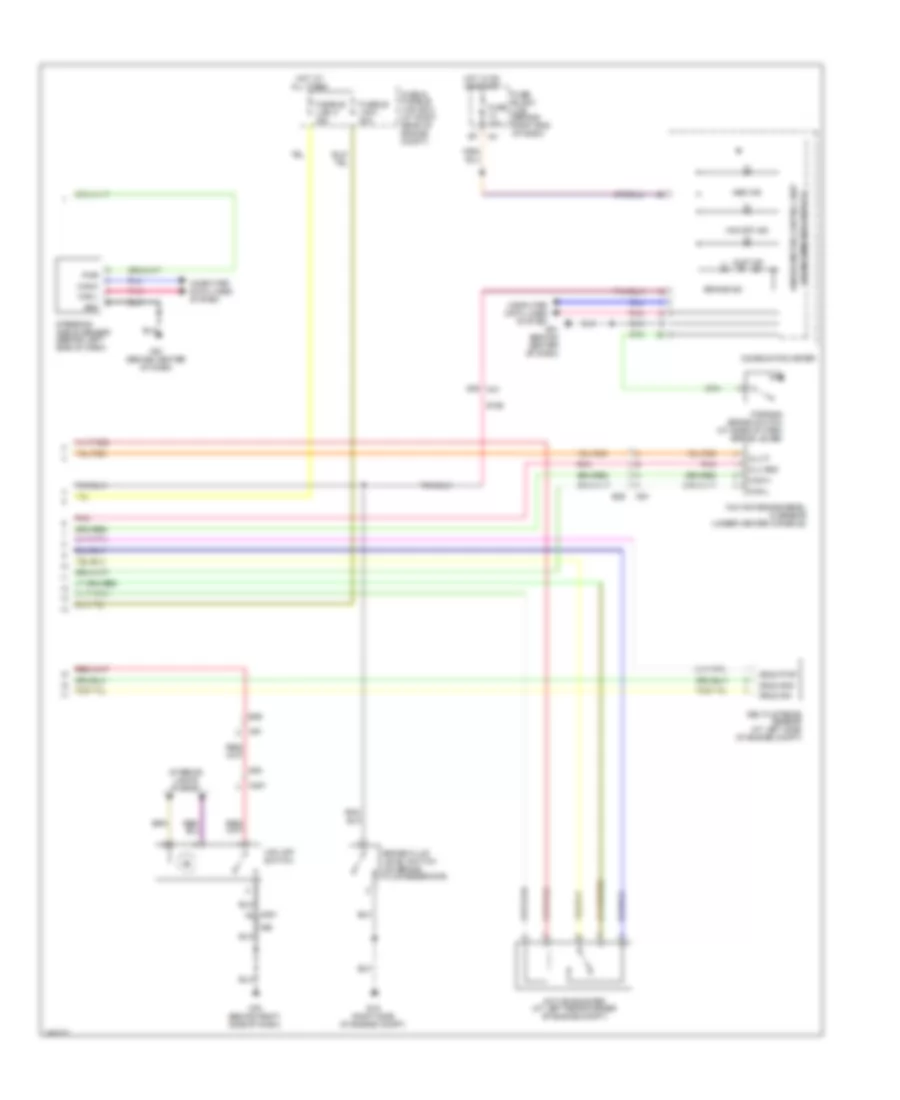

Электросхема антиблокировочной тормозной системы АБС (ABS) (2 из 2) для Nissan Armada SL 2014

Электросхема антиблокировочной тормозной системы АБС (ABS) (2 из 2) для Nissan Armada SL 2014 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

Электросхема антиблокировочной тормозной системы АБС (ABS) (2 из 2) для Nissan Armada SL 2014 - Список элементов:

  • (w/ information display)
  • 45g m31
  • Abs ind
  • Active booster (at left rear corner of engine compt)
  • Brake fluid level switch (on brake fluid reservoir)
  • Brake ind
  • Can-h
  • Can-l
  • Clu gnd
  • Clu p
  • Combination meter
  • Computer data lines system
  • Dels gnd
  • Dels pwr
  • Dels sig
  • Delta stroke sensor (at left side of engine compt)
  • E15 (right side of engine compt)
  • E152
  • E26
  • Fuse & fusible link box (at right rear of engine compt)
  • Fuse 10a
  • Fuse block (j/b) (behind right end of dash)
  • Fusible link h 30a
  • Fusible link i 40a
  • Gnd
  • Hot at all times
  • Hot in on or start
  • Interior lights system
  • M251
  • M61 (behind center of dash)
  • M63
  • M79 (behind right side of dash)
  • M91
  • Parking brake switch (at base of park brake lever)
  • Pnk
  • Pwr
  • Slip ind
  • Steering angle sensor (behind left side of dash)
  • Unified meter control unit
  • Vdc off ind
  • Vdc off switch
  • Yaw rate/side/decel g sensor (under center console)
