Электросхемы СИСТЕМА КОНДИЦИОНЕРА Nissan Titan XE 2004

СИСТЕМА КОНДИЦИОНЕРА

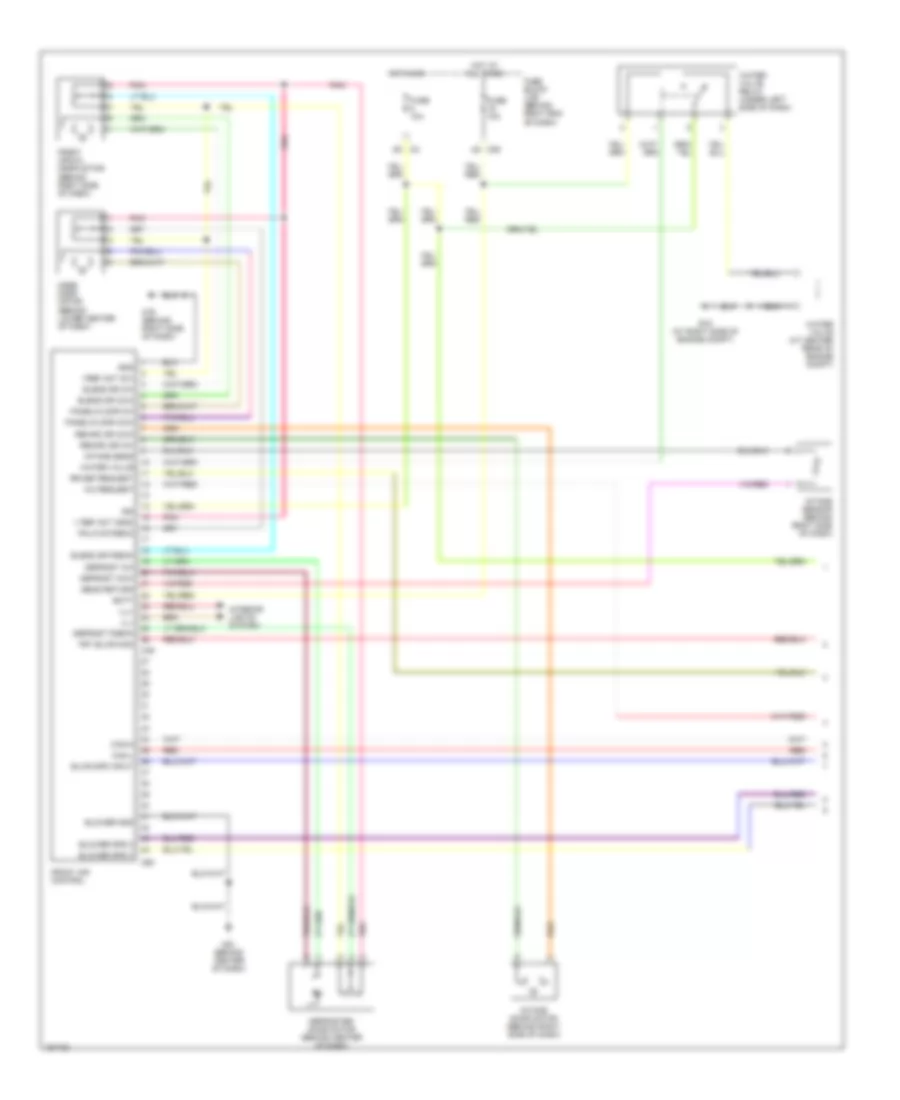

Электросхема кондиционера с ручный управлением (1 из 3) для Nissan Titan XE 2004

https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO

Get access to all wiring diagrams of the car

Электросхема кондиционера с ручный управлением (1 из 3) для Nissan Titan XE 2004 - Список элементов:

• 4q m39
• 5n m3
• A/c request
• Batt
• Blend dr ccw
• Blend dr cw
• Blend dr fdbck
• Blower gnd
• Blower spd 2
• Blower spd 3
• Blwr spd input
• Can-h
• Can-l
• Defrost ccw
• Defrost cw
• Defrost fdbck
• Defroster door motor (behind center of dash)
• E15 (at right side of engine compt)
• Front air control
• Front air mix door motor (behind right side of dash)
• Frt blwr mon
• Fuse 10a
• Fuse block (j/b) (behind right end of dash)
• Gnd
• Hot at all times
• Hot in on
• Ign
• Ill+
• Ill-
• Intake door motor (behind right side of dash)
• Intake sens
• Intake sensor (behind right side of dash)
• Interior lights system
• M49
• M50
• M61 (behind center of dash)
• M79 (behind right side of dash)
• Mode door motor (behind lower center of dash)
• Panel/floor ccw
• Panel/floor cw
• Pnk
• Pnl/flr fdbck
• Recirc dr ccw
• Recirc dr cw
• Red
• Rr def request
• Sens return
• V ref act (gnd)
• Vref act (5v)
• Water valve
• Water valve (at center rear of engine compt)
• Water valve relay (under left side of dash)

Электросхема кондиционера с ручный управлением (2 из 3) для Nissan Titan XE 2004

https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO

Get access to all wiring diagrams of the car

Электросхема кондиционера с ручный управлением (2 из 3) для Nissan Titan XE 2004 - Список элементов:

• A/c request
• Body control module (behind center of dash)
• Can-h
• Can-l
• Computer data lines system
• Fan on
• Front blower motor (behind right side of dash)
• Front blower motor relay (under right side of dash)
• Front blower resistor (behind right side of dash)
• Front blower switch
• Fuse & fusible link box (right rear of engine compt)
• Fuse 20a
• Hot at all times
• M18
• M61 (behind center of dash)
• M79 (behind right side of dash)
• Off
• Pnk
• Red
• Rr def sw

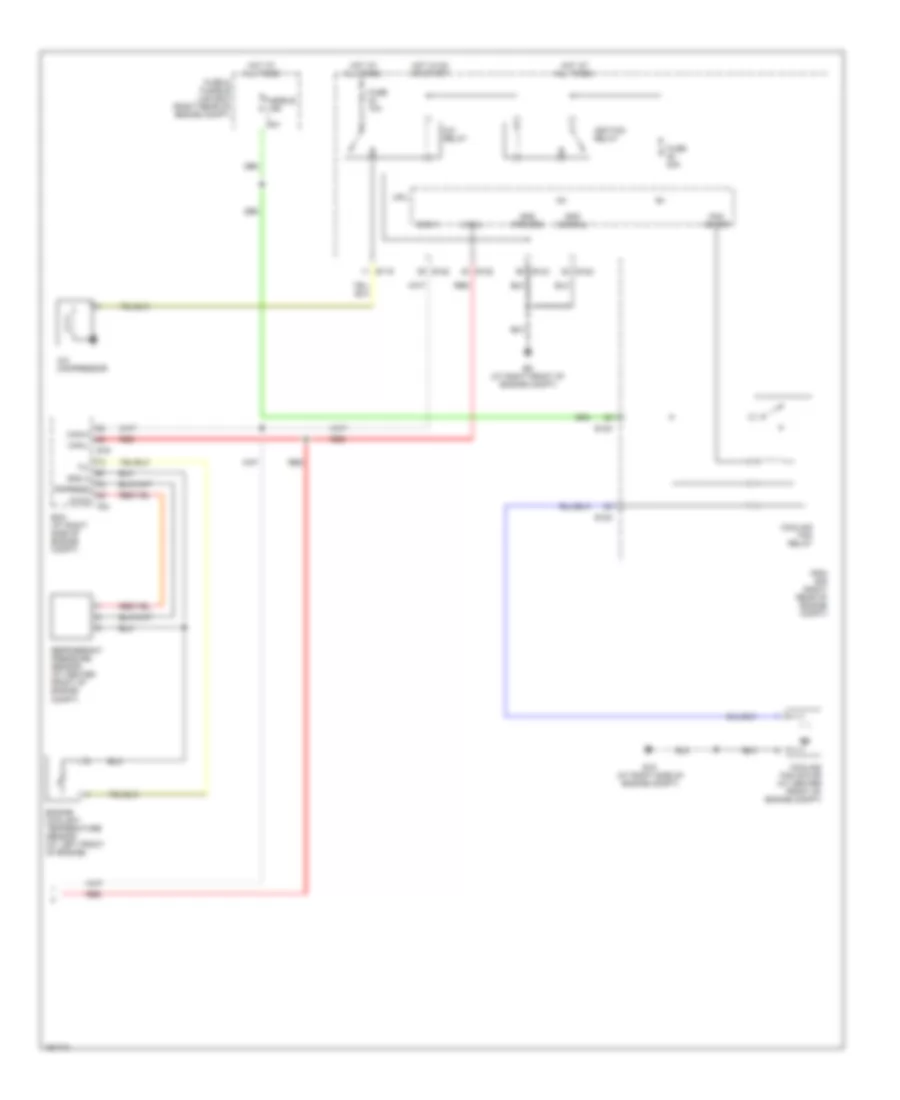

Электросхема кондиционера с ручный управлением (3 из 3) для Nissan Titan XE 2004

https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO

Get access to all wiring diagrams of the car

Электросхема кондиционера с ручный управлением (3 из 3) для Nissan Titan XE 2004 - Список элементов:

• A/c compressor
• A/c relay
• Avcc
• Can-h
• Can-l
• Cooling fan motor (at center front of engine compt)
• Cooling fan relay
• Cpu
• E119
• E120
• E122
• E124
• E15 (at right side of engine compt)
• E16
• E9 (at right front of engine compt)
• Ecm (at right side of engine compt)
• Engine coolant temperature sensor (at left front of engine)
• F54
• Fan motor
• Fuse & fusible link box (right rear of engine compt)
• Fuse 10a
• Fuse 20a
• Fusible link l 40a
• Gnd (power)
• Gnd (signal)
• Gnd a
• Hot at all times
• Hot in on or start
• Ig+
• Ignition relay
• Ipdm e/r (right rear of engine compt)
• Pdpress
• Red
• Refrigerant pressure sensor (at center front of engine compt)
