Электросхемы ВНУТРЕННЕЕ ОСВЕЩЕНИЕ Nissan Altima GLE 2001

ВНУТРЕННЕЕ ОСВЕЩЕНИЕ

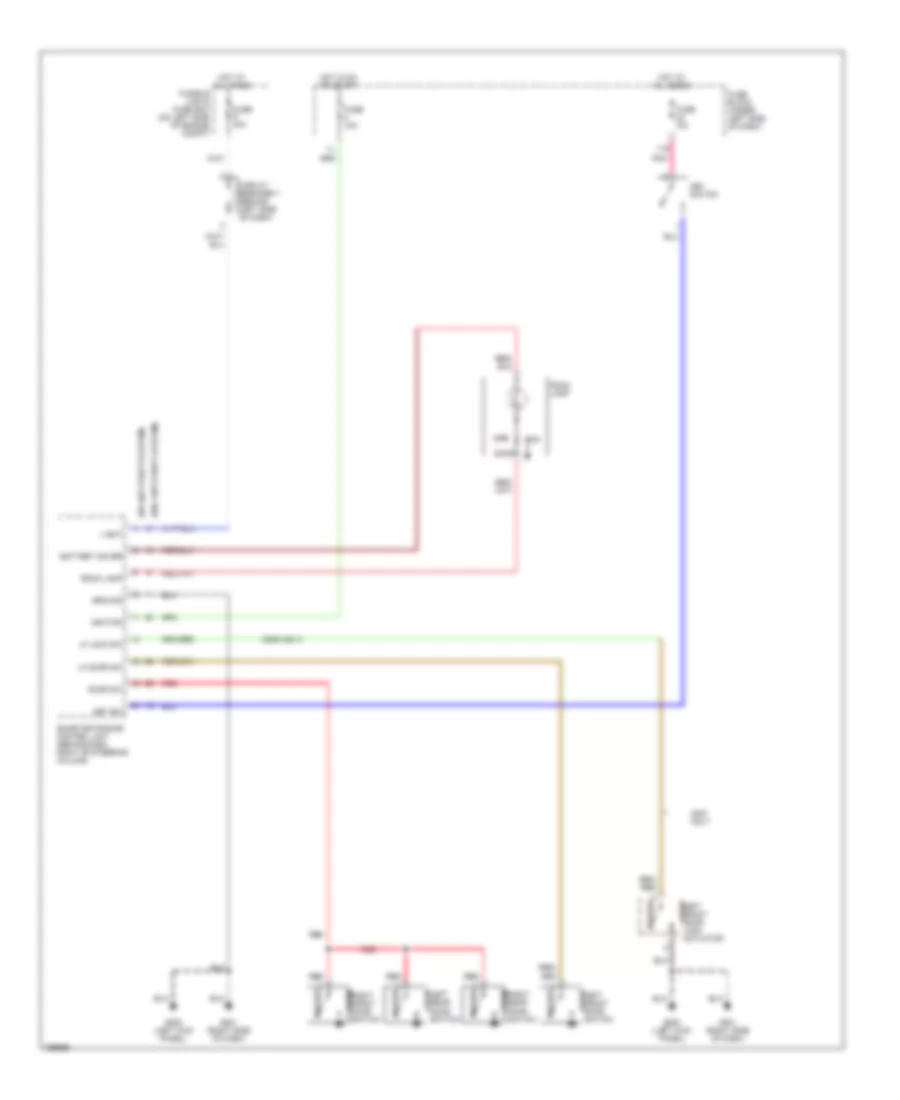

Электросхема подсветки, С Замки Двери с механическим приводом для Nissan Altima GLE 2001

Электросхема подсветки, С Замки Двери с механическим приводом для Nissan Altima GLE 2001 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

Электросхема подсветки, С Замки Двери с механическим приводом для Nissan Altima GLE 2001 - Список элементов:

  • (2000 only)
  • (w/ anti-theft system)
  • (w/o anti-theft system)
  • 11s
  • Battery saver
  • Circuit breaker 1 (behind left side of dash)
  • Closed
  • Door
  • Door sw
  • Fuse 10a
  • Fuse block (under left side of dash)
  • Fuse d 40a
  • Fusible link & fuse box (on left side of engine compt)
  • G200 (left kick panel)
  • G201 (right side of dash)
  • Ground
  • Hot at all times
  • Hot in on or start
  • Ignition
  • Key sw
  • Key switch
  • Left front door lock actuator
  • Left front door switch
  • Left rear door switch
  • Lf door sw
  • Lf lock sw
  • Off
  • Only
  • Open
  • Pnk
  • Red
  • Right front door switch
  • Right rear door switch
  • Room lamp
  • Smart entrance control unit (behind dash, right of steering column)
  • V bat

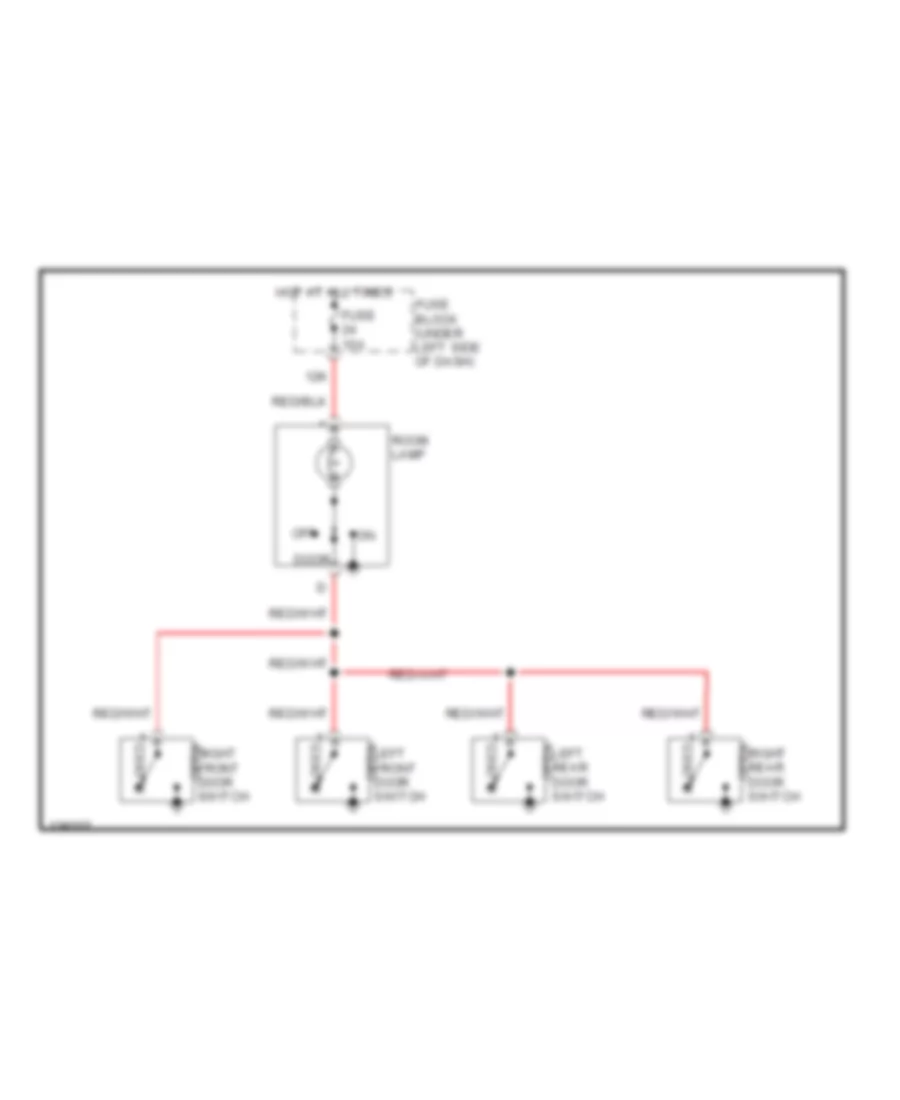

Электросхема подсветки, без Замки Двери с механическим приводом для Nissan Altima GLE 2001

Электросхема подсветки, без Замки Двери с механическим приводом для Nissan Altima GLE 2001 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

Электросхема подсветки, без Замки Двери с механическим приводом для Nissan Altima GLE 2001 - Список элементов:

  • 12k
  • Closed
  • Door
  • Fuse 10a
  • Fuse block (under left side of dash)
  • Hot at all times
  • Left front door switch
  • Left rear door switch
  • Off
  • Open
  • Right front door switch
  • Right rear door switch
  • Room lamp

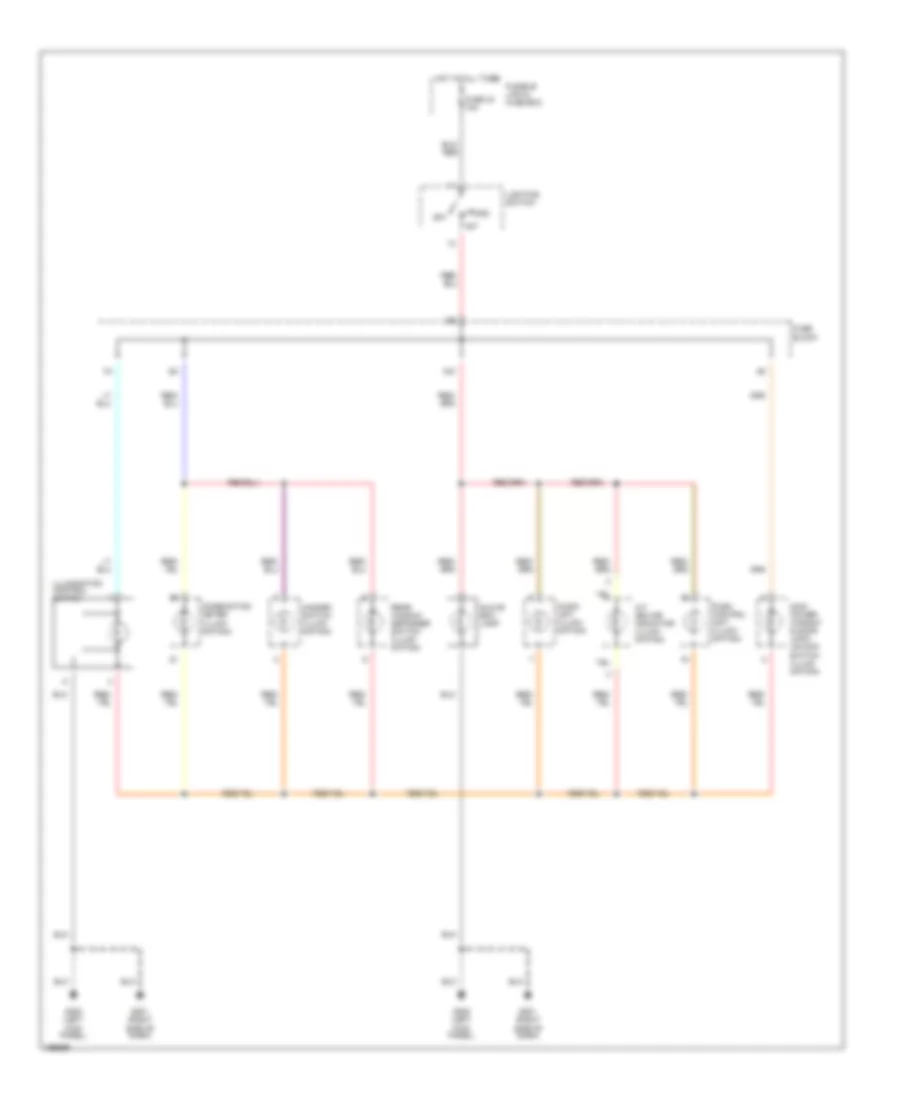

Электросхема подсветки приборов для Nissan Altima GLE 2001

Электросхема подсветки приборов для Nissan Altima GLE 2001 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

Электросхема подсветки приборов для Nissan Altima GLE 2001 - Список элементов:

  • 10k
  • 1st
  • 2nd
  • A/t device indicator (illumi- nation)
  • Audio unit (illumi- nation)
  • Combination meter (illumi- nation)
  • Fuse 34 10a
  • Fuse block
  • Fusible link & fuse box
  • G200 (left kick panel)
  • G201 (right side of dash)
  • Glove box lamp
  • Hazard switch (illumi- nation)
  • Hot at all times
  • Illumination control switch
  • Lighting switch
  • Main power window & door lock/ unlock switch (illumi- nation)
  • Off
  • Push control unit (illumi- nation)
  • Rear window defogger switch (illumi- nation)
