Электросхемы ВНУТРЕННЕЕ ОСВЕЩЕНИЕ Nissan Quest S 2007

ВНУТРЕННЕЕ ОСВЕЩЕНИЕ

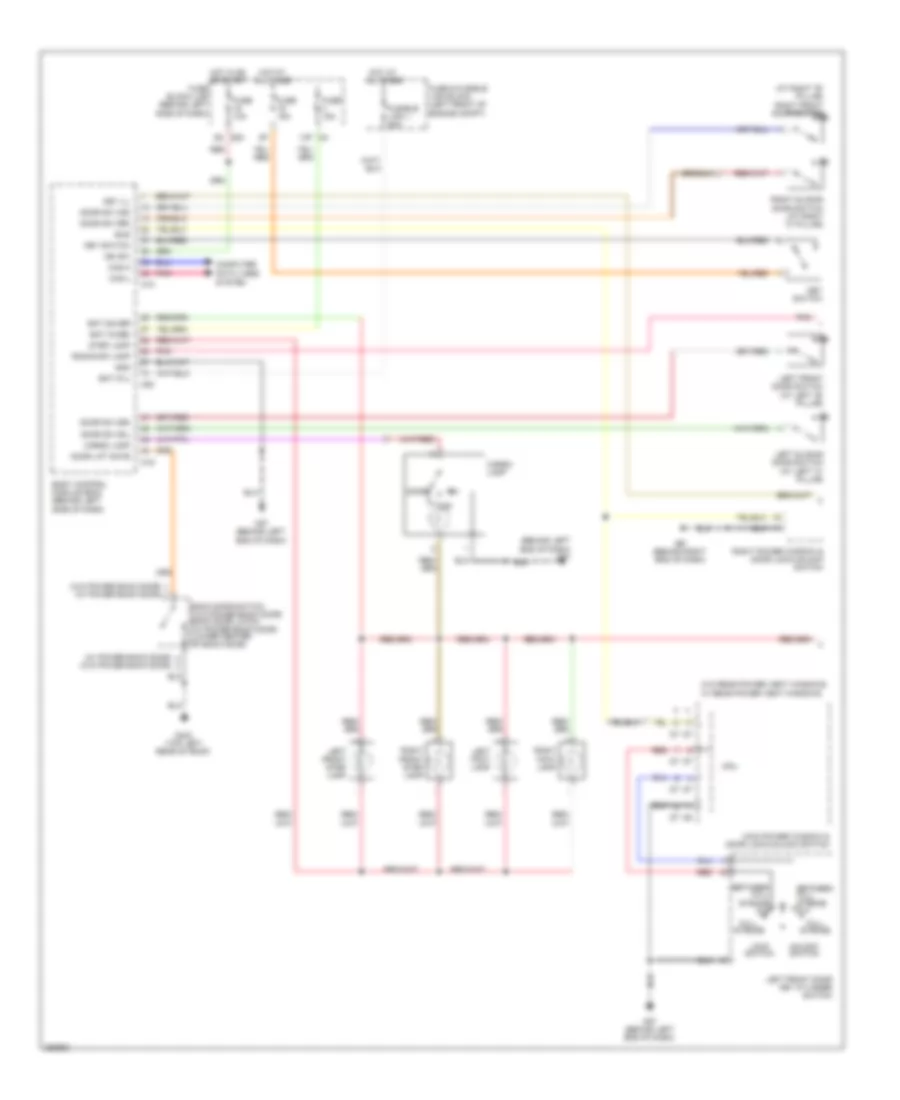

Электросхема подсветки, С Задняя Ассамблея Пульта Крыши (1 из 2) для Nissan Quest S 2007

Электросхема подсветки, С Задняя Ассамблея Пульта Крыши (1 из 2) для Nissan Quest S 2007 - Список элементов:

(at right "b" pillar) right front door switch
(behind left end of dash) m57
(w/ power back door) (w/o power back door)
(w/o power back door) (w/ power back door)
13p
Back door switch (w/o power back door) back door latch (w/ power back door) (lower center of back door)
Bat (f/l)
Bat (fuse)
Bat saver
Between full stroke & n
Body control module (bcm) (behind left side of dash)
Bus
Can-h
Can-l
Cargo lamp
Computer data lines
Cpu
D403 (top left rear of roof)
Door
Door lift gate
Door sw (as)
Door sw (dr)
Door sw (rl)
Door sw (rr)
E30
Full stroke
Fuse & fusible link block (left front of engine compt)
Fuse 10a
Fuse 15a
Fuse block (j/b) (behind left side of dash)
Fusible link j 50a
Gnd
Hot at all times
Hot in on or start
Ign sw
Key ill
Key switch
Left foot lamp
Left front door key cylinder switch
Left front door switch (at left "b" pillar)
Left front step lamp
Left sliding door switch (at left "c" pillar)
Lock switch
M18
M19
M20
M57 (behind left end of dash)
M61 (behind right end of dash)
Main power window & door lock/unlock switch
On off
Pnk
Red
Right foot lamp
Right front step lamp
Right power window & door lock/unlock switch
Right sliding door switch (at right "c" pillar)
Room/map lamp
Step lamp
System
Unlock switch
W/o rear power vent windows w/ rear power vent windows

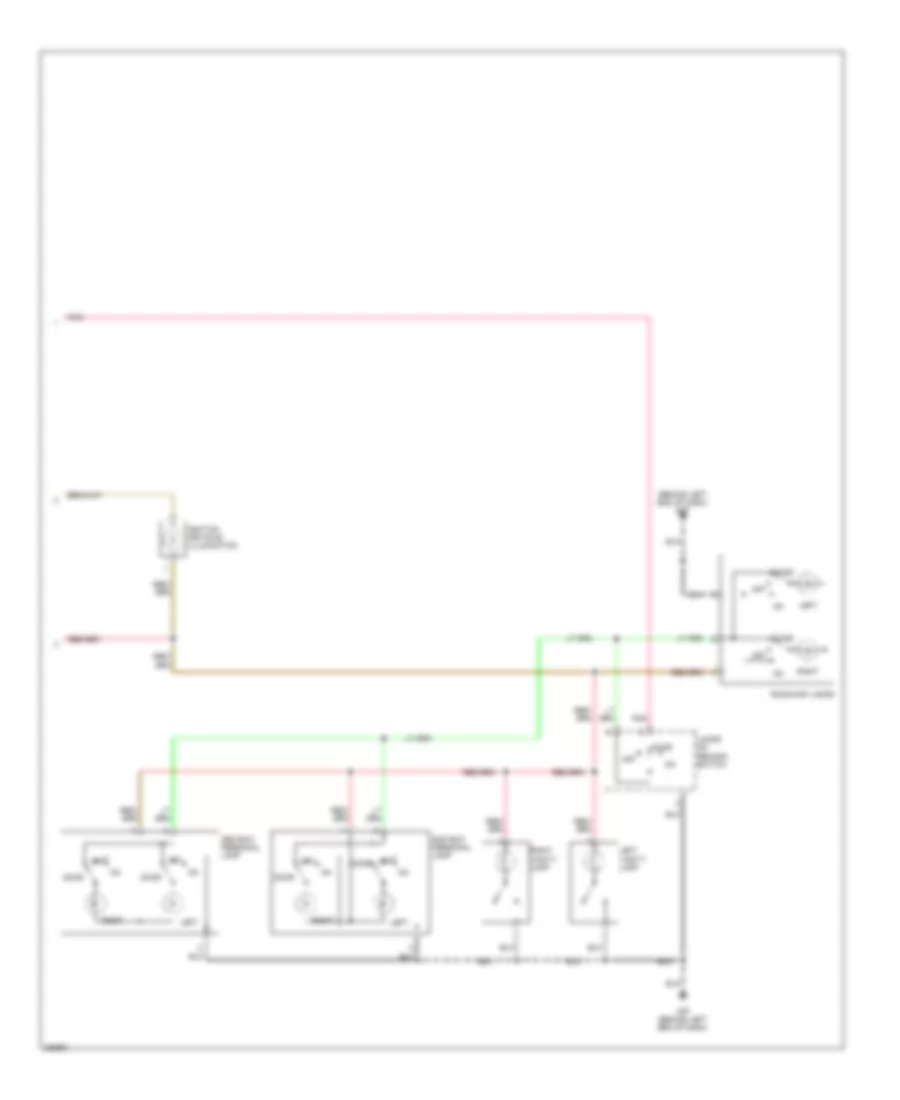

Электросхема подсветки, С Задняя Ассамблея Пульта Крыши (2 из 2) для Nissan Quest S 2007

Электросхема подсветки, С Задняя Ассамблея Пульта Крыши (2 из 2) для Nissan Quest S 2007 - Список элементов:

(behind left end of dash) m57
2nd row personal lamp
3rd row personal lamp
Door
Ignition keyhole illumination
Lamps on demand switch
Left
Left vanity lamp
M57 (behind left end of dash)
Off
Pnk
Right
Right vanity lamp
Room/map lamps

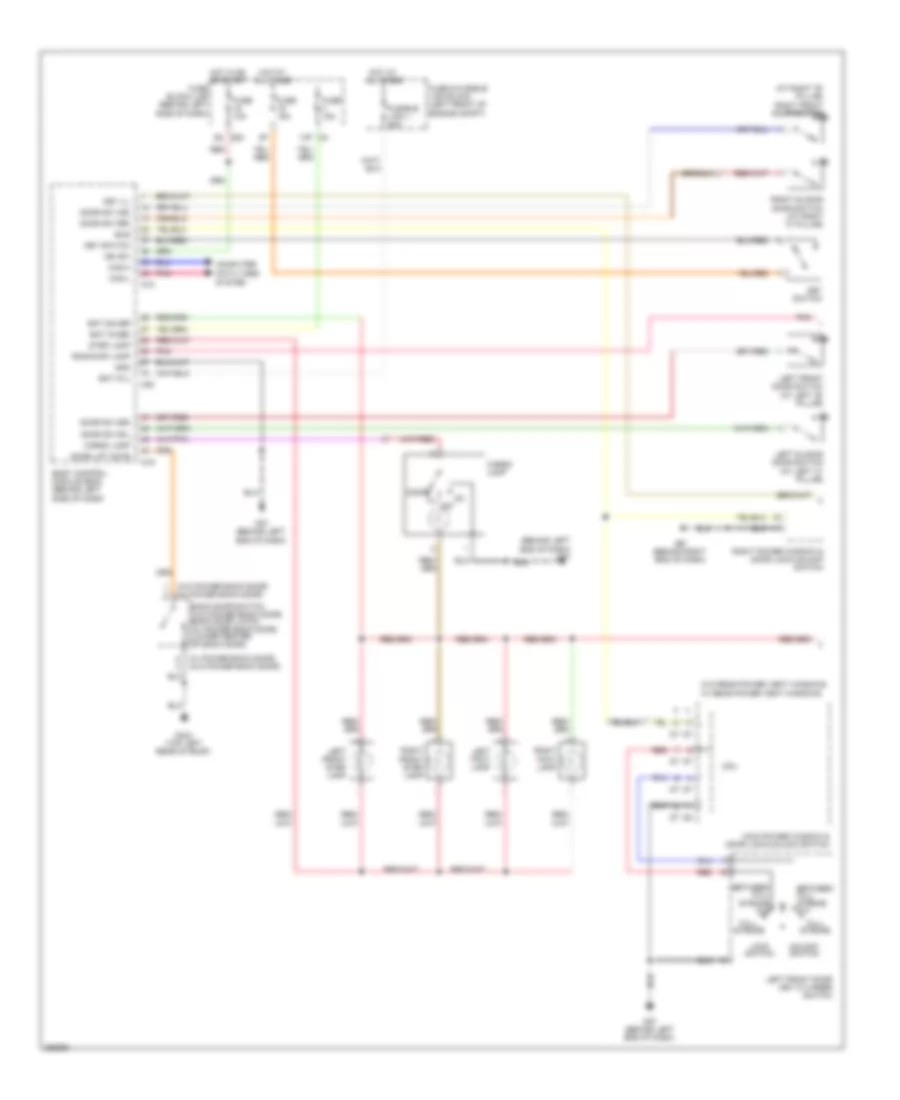

Электросхема подсветки, без Задняя Ассамблея Пульта Крыши (1 из 2) для Nissan Quest S 2007

Электросхема подсветки, без Задняя Ассамблея Пульта Крыши (1 из 2) для Nissan Quest S 2007 - Список элементов:

(at right "b" pillar) right front door switch
(behind left end of dash) m57
(w/ power back door) (w/o power back door)
(w/o power back door) (w/ power back door)
13p
Back door switch (w/o power back door) back door latch (w/ power back door) (lower center of back door)
Bat (f/l)
Bat (fuse)
Bat saver
Between full stroke & n
Body control module (bcm) (behind left side of dash)
Bus
Can-h
Can-l
Cargo lamp
Computer data lines
Cpu
D403 (top left rear of roof)
Door
Door lift gate
Door sw (as)
Door sw (dr)
Door sw (rl)
Door sw (rr)
E30
Full stroke
Fuse & fusible link block (left front of engine compt)
Fuse 10a
Fuse 15a
Fuse block (j/b) (behind left side of dash)
Fusible link j 50a
Gnd
Hot at all times
Hot in on or start
Ign sw
Key ill
Key switch
Left foot lamp
Left front door key cylinder switch
Left front door switch (at left "b" pillar)
Left front step lamp
Left sliding door switch (at left "c" pillar)
Lock switch
M18
M19
M20
M57 (behind left end of dash)
M61 (behind right end of dash)
Main power window & door lock/unlock switch
Off
Pnk
Red
Right foot lamp
Right front step lamp
Right power window & door lock/unlock switch
Right sliding door switch (at right "c" pillar)
Room/map lamp
Step lamp
System
Unlock switch
W/o rear power vent windows w/ rear power vent windows

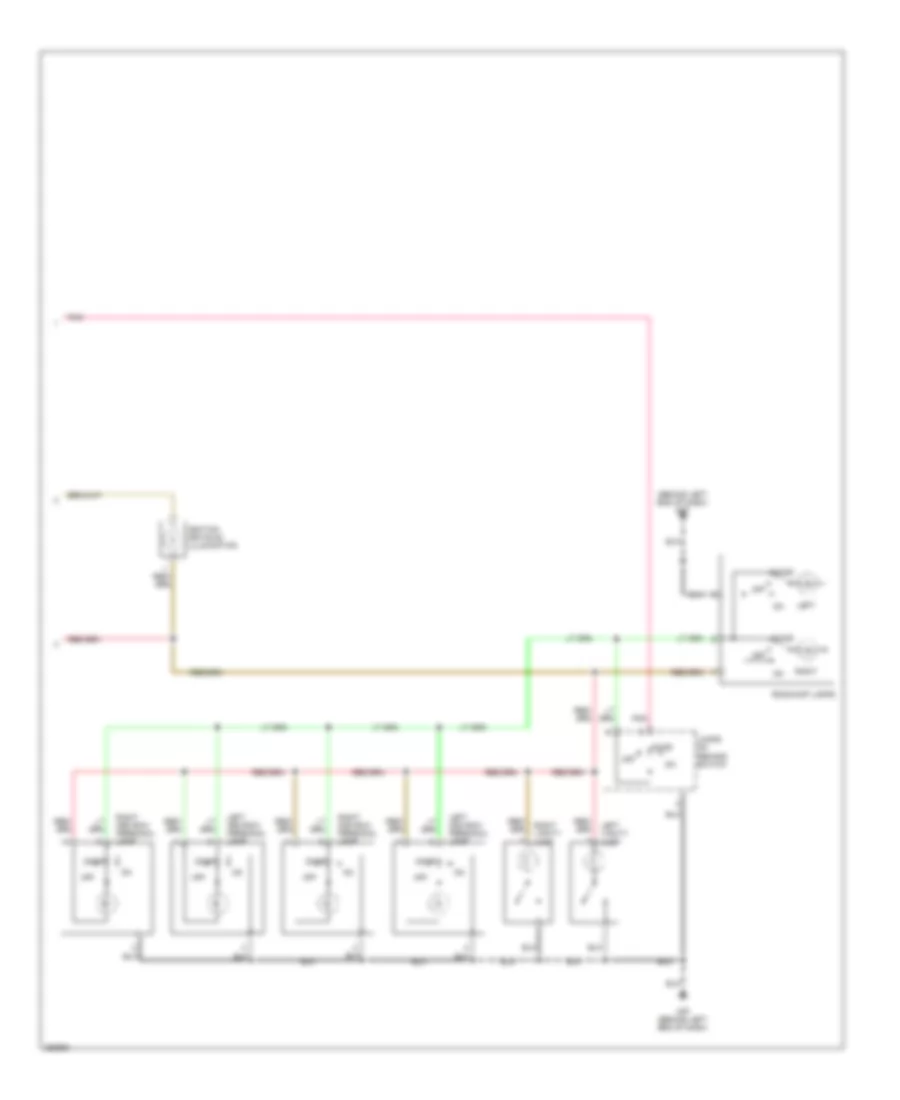

Электросхема подсветки, без Задняя Ассамблея Пульта Крыши (2 из 2) для Nissan Quest S 2007

Электросхема подсветки, без Задняя Ассамблея Пульта Крыши (2 из 2) для Nissan Quest S 2007 - Список элементов:

(behind left end of dash) m57
Door
Ignition keyhole illumination
Lamps on demand switch
Left
Left 2nd row personal lamp
Left 3rd row personal lamp
Left vanity lamp
M57 (behind left end of dash)
Off
Pnk
Right
Right 2nd row personal lamp
Right 3rd row personal lamp
Right vanity lamp
Room/map lamps

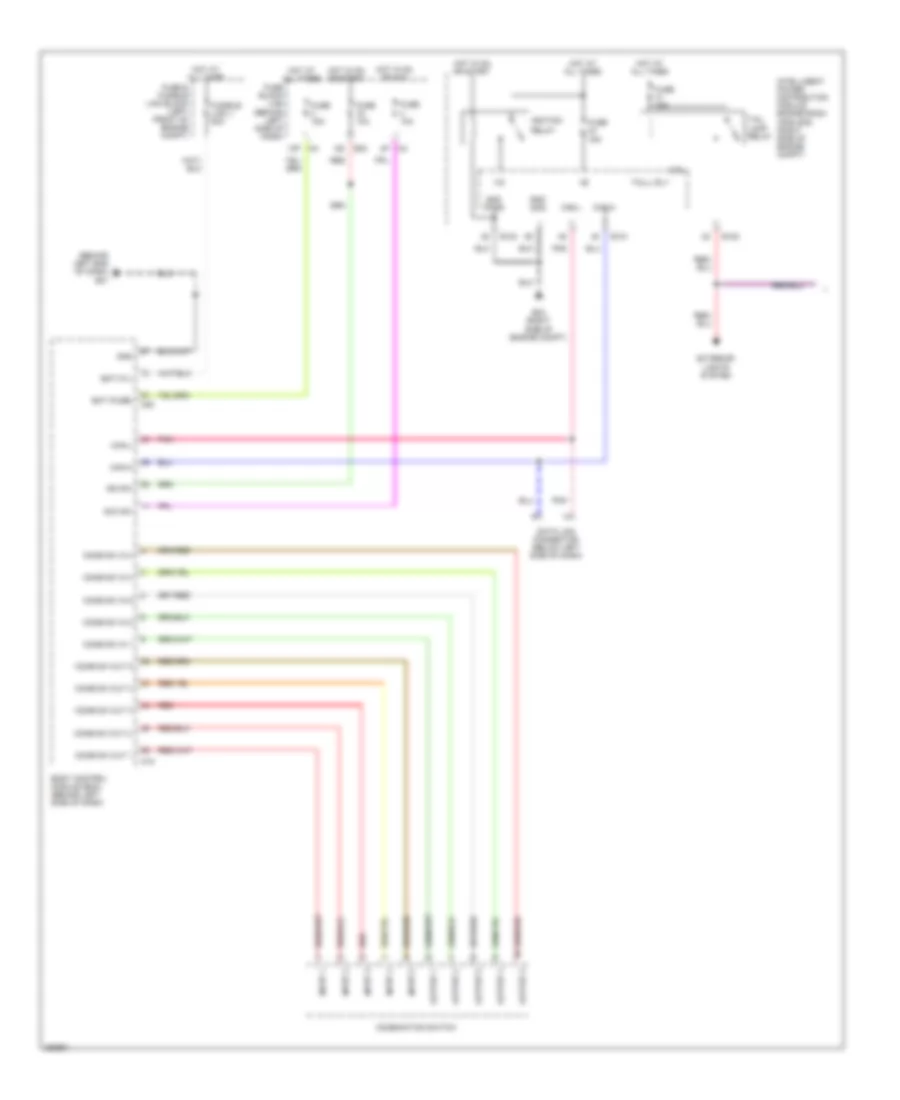

Электросхема подсветки приборов (1 из 2) для Nissan Quest S 2007

Электросхема подсветки приборов (1 из 2) для Nissan Quest S 2007 - Список элементов:

(behind left end of dash) m57
(behind left side of dash)
+ig
13p
Acc sw
Bat (f/l)
Bat (fuse)
Body control module (bcm) (behind left side of dash)
Can-h
Can-l
Comb sw in 1
Comb sw in 2
Comb sw in 3
Comb sw in 4
Comb sw in 5
Comb sw out 1
Comb sw out 2
Comb sw out 3
Comb sw out 4
Comb sw out 5
Combination switch
Cpu
Data link connector (below left side of dash)
E121
E122
E124
E24 (right side of engine compt)
E30
Exterior lights system
Fuse & fusible link block (left front of engine compt)
Fuse 10a
Fuse 15a
Fuse block (j/b)
Fusible link j 50a
Gnd
Gnd (pwr)
Gnd (sig)
Hot at all times
Hot in on or acc
Hot in on or start
Ign sw
Ignition
Input 1
Input 2
Input 3
Input 4
Input 5
Intelligent power distribution module engine room (ipdm e/r) (right side of engine compt)
M18
M20
Output 1
Output 2
Output 3
Output 4
Output 5
Pnk
Red
Relay
Tail lamp relay
Tail/l rly

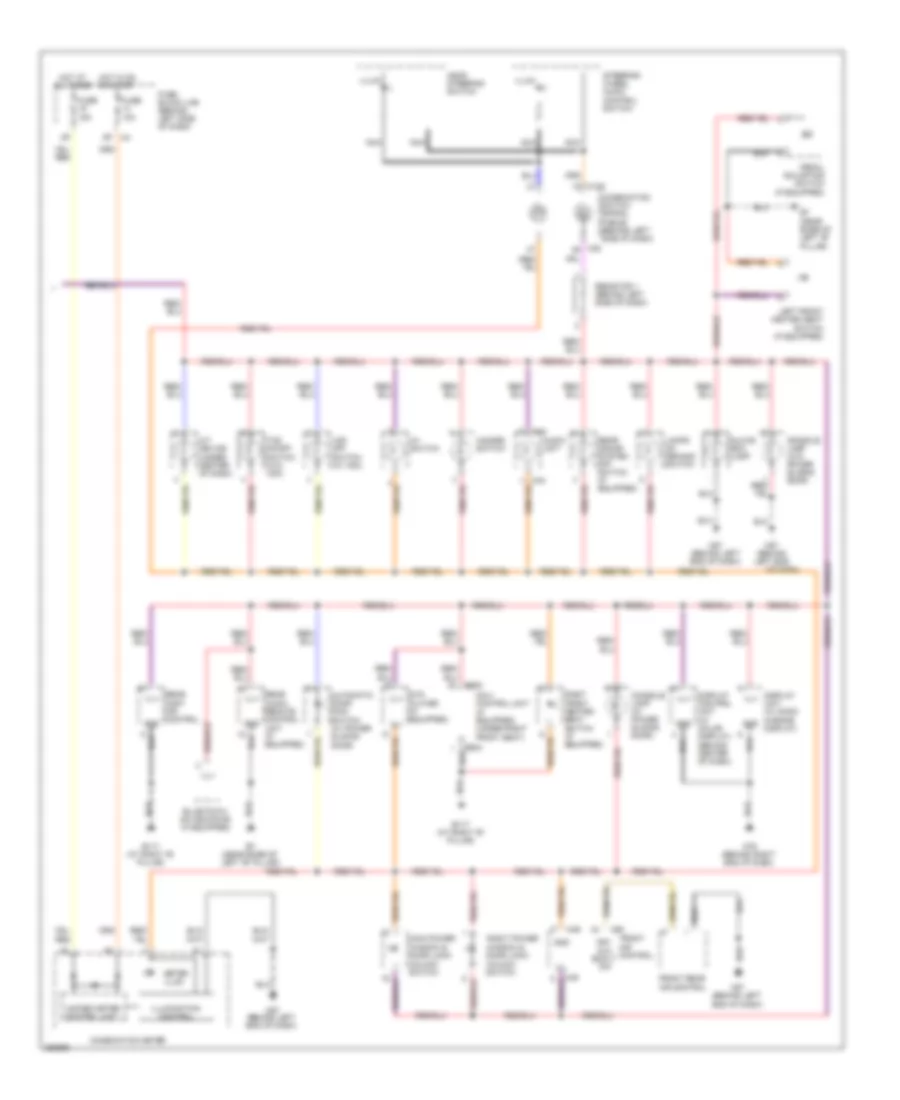

Электросхема подсветки приборов (2 из 2) для Nissan Quest S 2007

Электросхема подсветки приборов (2 из 2) для Nissan Quest S 2007 - Список элементов:

A/t device (under center of dash)
Ascd steering switch
Audio unit
Automatic door main switch (w/ power sliding door)
Av switch
B117 (at right "b" pillar)
B504
B505
B7 (near base of left "b" pillar)
Combination meter
Combination switch (spiral cable) (behind left side of dash)
Console lamp (w/ power sliding door)
Console lamp (w/o power sliding door)
Display ill+ control unit (w/ gnd color display) (behind center of dash)
Display ill+ unit (w/ mono- chrome gnd display)
Dvd ill+ player (if equipped) ill-
Front air control
Front rear air control
Frt aux bcklt dim
Fuse 10a
Fuse 15a
Fuse block (j/b) (behind left side of dash)
Glove box lamp
Gnd
Hazard switch
Hot at all times
Hot in on or start
Ill
Ill+
Illum
Illumination control
Lamps on demand switch
Left front heated seat switch (if equipped)
M102
M30
M43
M49
M50
M57 (behind left end
M57 (behind left end of dash)
M79 (behind right end of dash)
Main power window & door lock/ unlock switch
Meter illum
Navi control unit (if equipped) (under right front seat)
Nca
Of dash)
Pedal adjusting switch (if equipped)
Rear ill+ audio remote control gnd unit (if equipped)
Rear ill+ most air control gnd
Rear sonar system off switch (if equipped)
Resistor 1 (behind left side of dash)
Right front heated seat switch (if equipped)
Right power window & door lock/ unlock switch
Steering wheel audio control switch
Tcs on/off switch (w/o vdc)
Unified meter control unit
Vdc off switch (w/ vdc)
