SUPPLEMENTAL RESTRAINTS

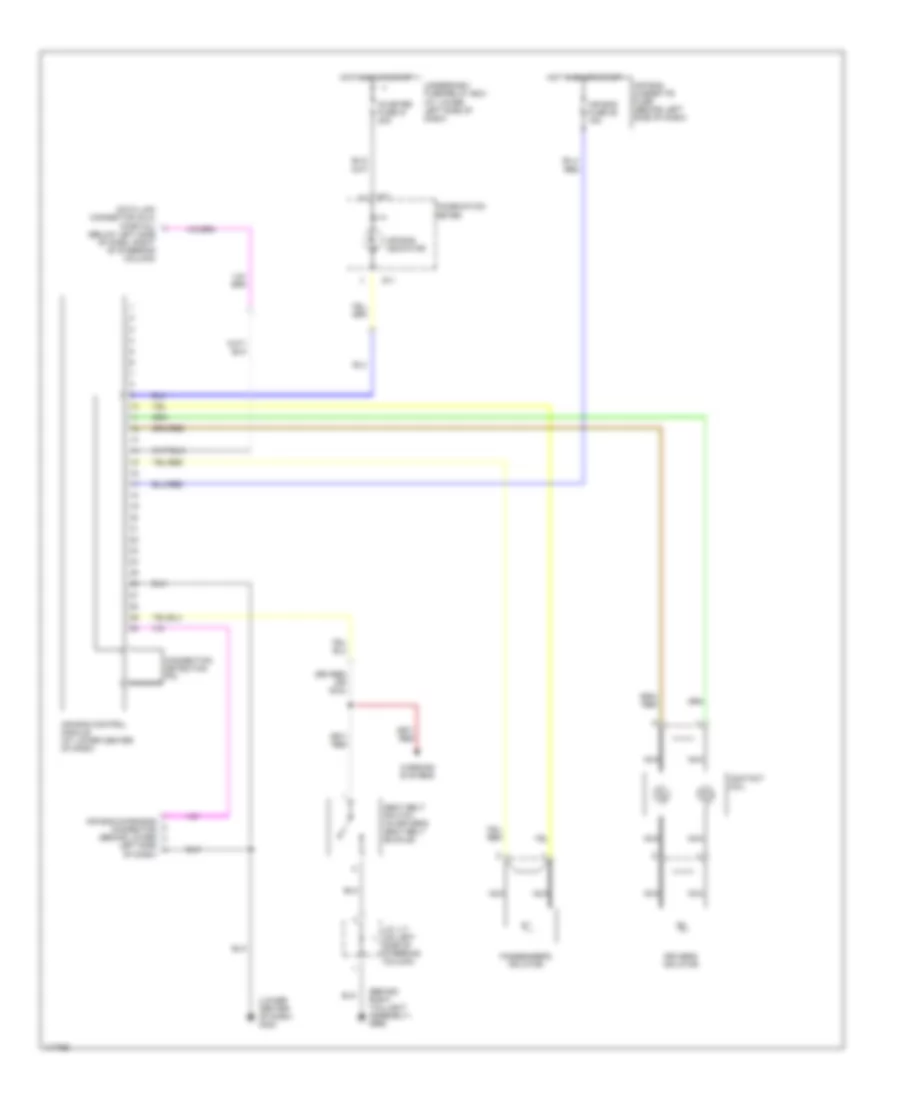

Supplemental Restraint Wiring Diagram for Suzuki Grand Vitara JLX 2000
List of elements for Supplemental Restraint Wiring Diagram for Suzuki Grand Vitara JLX 2000:
- (behind right taillight assembly) g998
- (lower center of dash) g302
- Air bag cassette fuse (behind left side of dash)
- Air bag control module (at lower center of dash)
- Air bag diagnosis connector (behind lower
- Air bag fuse 28 15a
- Air bag indicator
- Combination meter
- Connection detection pin
- Contact coil
- Data link connector (dlc) (partial) (below left side of dash, right of steering column)
- Driver's inflator
- G11
- Hot in on or start
- Ig meter fuse 21 20a
- J/c l17 (on left side of steering column)
- Left side of dash)
- Nca
- Passenger's inflator
- Seat belt switch (in driver's seat belt buckle)
- Underdash fuse/relay box (at lower left side of dash)
- Warning systems
