TRUNK, TAILGATE, FUEL DOOR – Mazda 5 Touring 2010 – SYSTEM WIRING DIAGRAMS

TRUNK, TAILGATE, FUEL DOOR

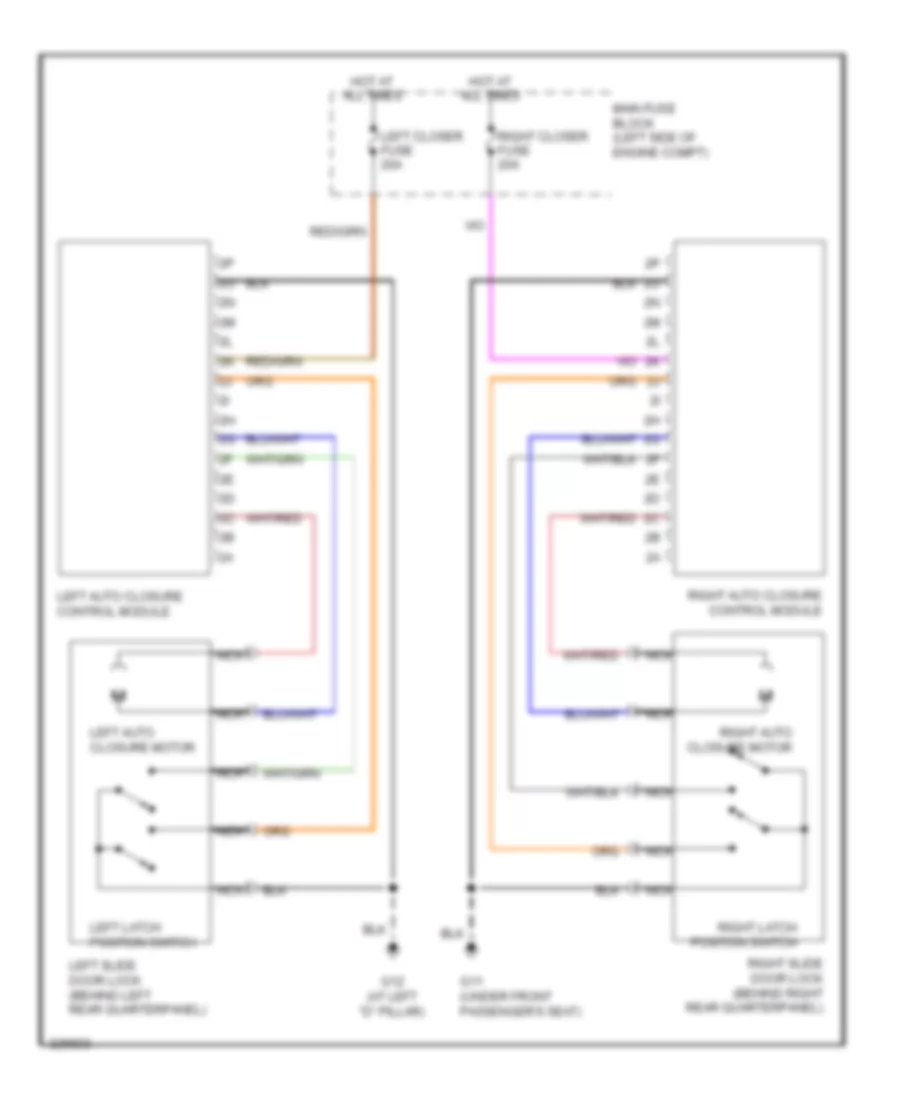

Power Sliding Door Wiring Diagram for Mazda 5 Touring 2010

List of elements for Power Sliding Door Wiring Diagram for Mazda 5 Touring 2010:

• G11 (under front passenger's seat)
• G12 (at left "d" pillar)
• Hot at all times
• Left auto closure control module
• Left auto closure motor
• Left closer fuse 20a
• Left latch position switch
• Left slide door lock (behind left rear quarterpanel)
• Main fuse block (left side of engine compt)
• Nca
• Right auto closure control module
• Right auto closure motor
• Right closer fuse 20a
• Right latch position switch
• Right slide door lock (behind right rear quarterpanel)
