AIR CONDITIONING

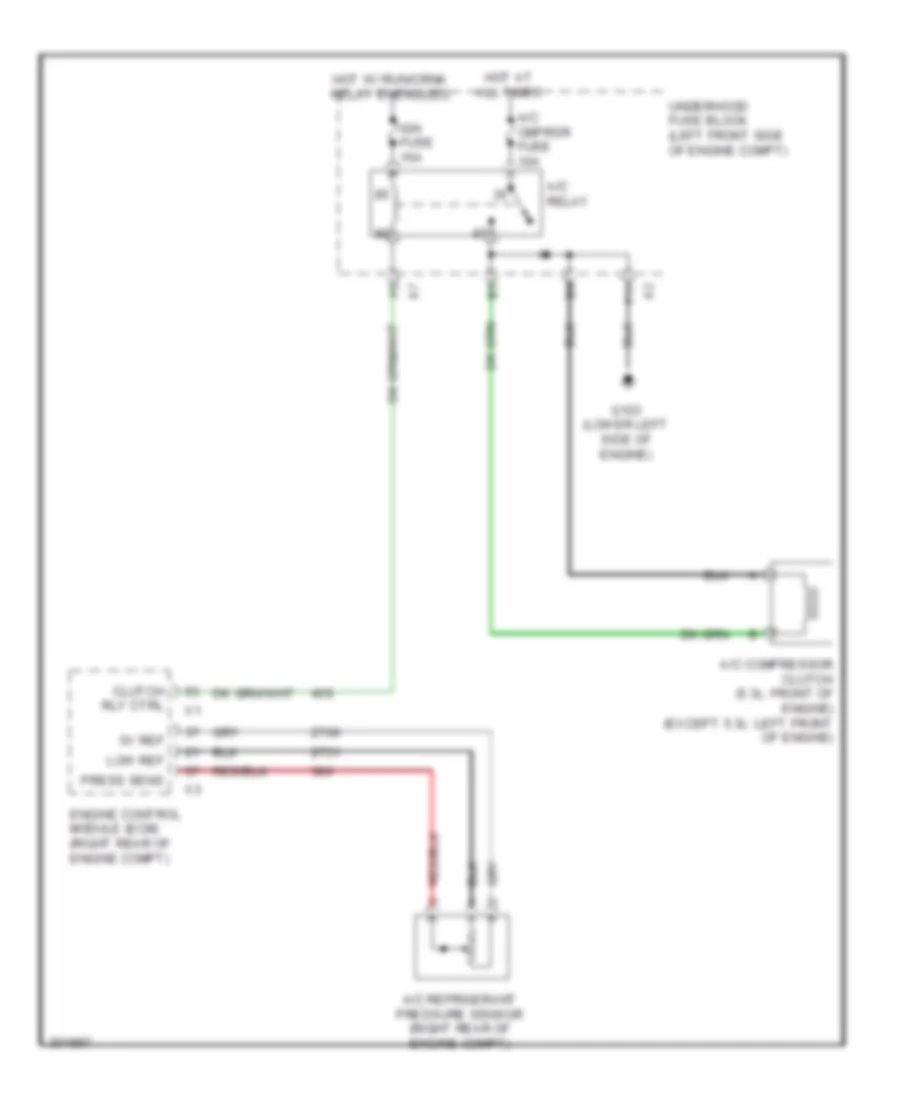

Compressor Wiring Diagram for Chevrolet Colorado 2009
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO List of elements for Compressor Wiring Diagram for Chevrolet Colorado 2009:
- 5v ref
- A/c cmprsr fuse 10a
- A/c compressor clutch (5.3l: front of engine) (except 5.3l: left front of engine)
- A/c refrigerant pressure sensor (right rear of engine compt)
- A/c relay
- Clutch rly ctrl
- Engine control module (ecm) (right rear of engine compt)
- F11
- G103 (lower left side of engine)
- Hot at all times
- Hot w/ run/crnk relay energized
- Ign fuse 15a
- Low ref
- Press sens
- Underhood fuse block (left front side of engine compt)
Manual A/C Wiring Diagram for Chevrolet Colorado 2009
List of elements for Manual A/C Wiring Diagram for Chevrolet Colorado 2009:
- (hvac harness, 14 cm from recirculation actuator breakout toward blower motor resistor assembly) j202
- 5.3l
- 5v ref
- A/c cltch diode
- A/c cmprsr fuse 10a
- A/c compressor clutch (left front of engine)
- A/c fuse 10a
- A/c refrigerant pressure sensor (right rear of engine compt)
- A/c relay
- A/c req sig
- A26
- A42
- A43
- A47
- B x4
- Blower motor (below right side of dash)
- Blower motor resistor assembly (lower right side of dash, near blower motor)
- Blower motor switch
- Blwr fuse 30a
- Body control module (bcm) (behind right kick panel)
- Computer data lines system
- Dimmer sw sig
- Dr ctrl a
- Dr ctrl b
- Engine control module (ecm) (right rear of engine compt)
- Engine coolant temperature (ect) sensor (left side of engine)
- Engine coolant temperature (ect) sensor (on left rear of engine)
- Evaporator temperature sensor (lower right side of dash)
- Except 5.3l
- F10 x7
- F11
- G103 (lower left side of engine)
- G106
- Gnd
- Ground distribution system
- High
- Hot at all times
- Hot w/ run/crnk relay energised
- Hvac control module
- Ign 3 hvac relay
- Ign 3 voltage
- Ign fuse 15a
- Ign voltage
- Interior lights system
- J200
- Jx106 (right side of engine compt)
- Logic
- Low
- Low ref
- Nca
- Off
- Off blwr mtr ctrl
- Power distribution system
- Press sens sig
- Recirculation actuator (right side of dash)
- Rly ctrl
- Sens sig
- Serial data
- Tan
- Underhood fuse block (left front side of engine compt)
- X7 f5
