AIR CONDITIONING – Chevrolet Impala 2004 – SYSTEM WIRING DIAGRAMS

AIR CONDITIONING

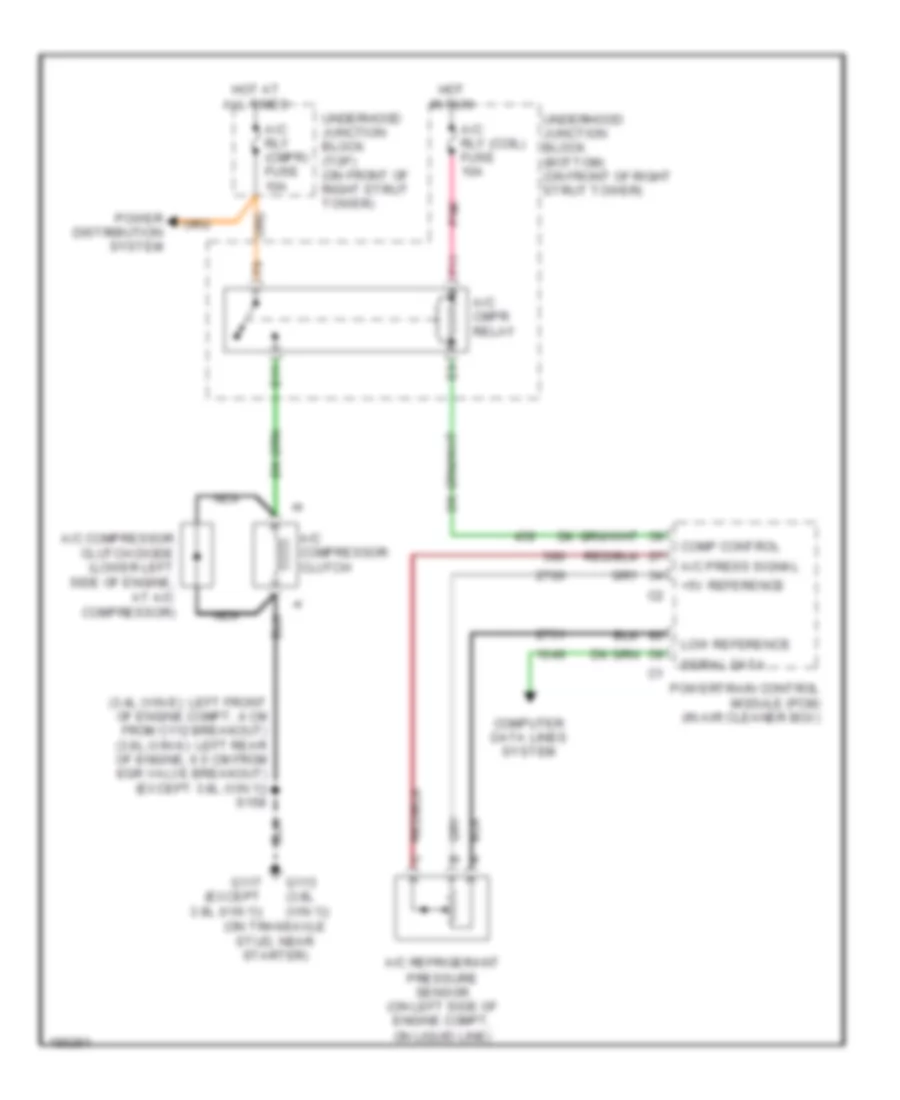

Compressor Wiring Diagram for Chevrolet Impala 2004

Compressor Wiring Diagram for Chevrolet Impala 2004 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Compressor Wiring Diagram for Chevrolet Impala 2004:

  • (3.4l (vin e): left front of engine compt, 4 cm from c112 breakout) (3.8l (vin k): left rear of engine, 6.5 cm from egr valve breakout) (except 3.8l (vin 1)) s158
  • (on transaxle stud, near starter)
  • +5v reference
  • A/c cmpr relay
  • A/c compressor clutch
  • A/c compressor clutch diode (lower left side of engine, at a/c compressor)
  • A/c press signal
  • A/c refrigerant pressure sensor (on left side of engine compt, on liquid line)
  • A/c rly (cmpr) fuse 10a
  • A/c rly (coil) fuse 10a
  • Comp control
  • Computer data lines system
  • E11
  • F11
  • G113 (3.8l (vin 1))
  • G117 (except 3.8l (vin 1))
  • Hot at all times
  • Hot in run
  • Low reference
  • Nca
  • Pnk
  • Power distribution system
  • Powertrain control module (pcm) (in air cleaner box)
  • Serial data
  • Underhood junction block (bottom) (on front of right strut tower)
  • Underhood junction block (top) (on front of right strut tower)

Manual A/C Wiring Diagram for Chevrolet Impala 2004

Manual AC Wiring Diagram for Chevrolet Impala 2004 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Manual A/C Wiring Diagram for Chevrolet Impala 2004:

  • & manifold absolute pressure sensor breakout)
  • (behind right center of dash, 8.5 cm from ignition switch breakout)
  • (except 3.4l (vin e)) s186
  • (forward lamp wiring harness, 31.5 cm from ambient air temperature sensor breakout)
  • (forward lamp wiring harness, near left headlamp, 18.5 cm from g101 breakout)
  • (in air cleaner box) powertrain control module (pcm)
  • (lower left side of engine, at a/c compressor) a/c compressor clutch diode
  • (on front of right strut tower) underhood junction block (bottom)
  • (top left front of radiator support) g101
  • +5v reference
  • A/c cmpr relay
  • A/c compressor clutch
  • A/c cruise fuse 10a
  • A/c press signal
  • A/c refrigerant pressure sensor (on left side of engine compt, on liquid line)
  • A/c request ind
  • A/c request sig
  • A/c request switch
  • A/c rly (cmpr) fuse 10a
  • A/c rly (coil) fuse 10a
  • A10
  • A11
  • A12
  • B blower motor speed ctrl
  • B10
  • B11
  • B12
  • Battery
  • Blower motor (on right bottom of heater-a/c assembly)
  • Blower motor control processor (lower right side of dash)
  • Body control module (behind left side of dash, above parking brake lever)
  • C battery positive voltage
  • C10
  • Class 2 serial
  • Comp control
  • Computer data lines system
  • D temp control switch
  • D4 c1
  • Defog switch
  • Defogger system
  • Dic/ rke fuse 10a
  • Door ctrl
  • Door ctrl a
  • Door ctrl b
  • Dr ctrl a
  • Dr ctrl b
  • E11
  • Ect ground
  • Ect signal
  • Engine controls system
  • Engine coolant temperature (ect) sensor (3.8l (vin k): left rear of engine) (3.4l (vin e): near coolant outlet, on left rear of engine) (3.8l (vin 1): below coolant outlet, on left rear of engine)
  • F11
  • Fan cont 1 fuse 25a
  • Fan cont 1 relay
  • Fan cont 2 & 3 fuse 25a
  • Fan cont 2 relay
  • Fan cont 3 relay
  • G113 (3.8l (vin 1)) g117 (except 3.8l (vin 1)) (on transaxle stud, near starter)
  • G201 (under dash to right side of steering column)
  • G202 (under dash, in center)
  • G203 (under dash, to right of steering column)
  • Ground
  • High
  • High speed
  • Hot at all times
  • Hot in on
  • Hvac blower fuse 30a
  • Hvac class 2 serial data
  • Hvac control module (middle center of dash)
  • I/p junction block (left) (left side of dash, behind access panel)
  • I/p junction block (right) (right side of dash, behind access panel)
  • Ign 3 volt
  • Illum
  • Interior lights system
  • Left air temperature actuator (on left side of heater- a/c assembly)
  • Left cooling fan (front of engine compt)
  • Logic
  • Low
  • Low reference
  • Low speed
  • Mode actuator (lower right side of dash)
  • Mode switch
  • Nca
  • Off blower motor switch
  • Out side air ind
  • Out side air switch
  • P temp control switch
  • Pnk
  • Position sig
  • Power distribution system
  • Rear defog rly ctrl
  • Recirculation actuator
  • Recirculation ind
  • Recirculation switch
  • Red
  • Right air temperature actuator (on right side of heater- a/c assembly)
  • Right cooling fan (front of engine compt)
  • S148
  • S158 (except 3.8l (vin 1)) (3.4l (vin e): left front of engine compt, 4 cm from c112 breakout) (3.8l (vin k): left rear of engine, 6.5 cm from egr valve breakout)
  • S175
  • S229
  • Speed ctrl
  • Tan
  • Underhood junction block (top) (on front of right strut tower)
