AIR CONDITIONING – Chevrolet SSR 2004 – SYSTEM WIRING DIAGRAMS

  1. Home
  2. >CHEVROLET
  3. >Chevrolet 2004
  4. >Chevrolet SSR 2004
  5. >Chevrolet SSR 2004 - ALL WIRING DIAGRAMS

Download PDF file

AIR CONDITIONING

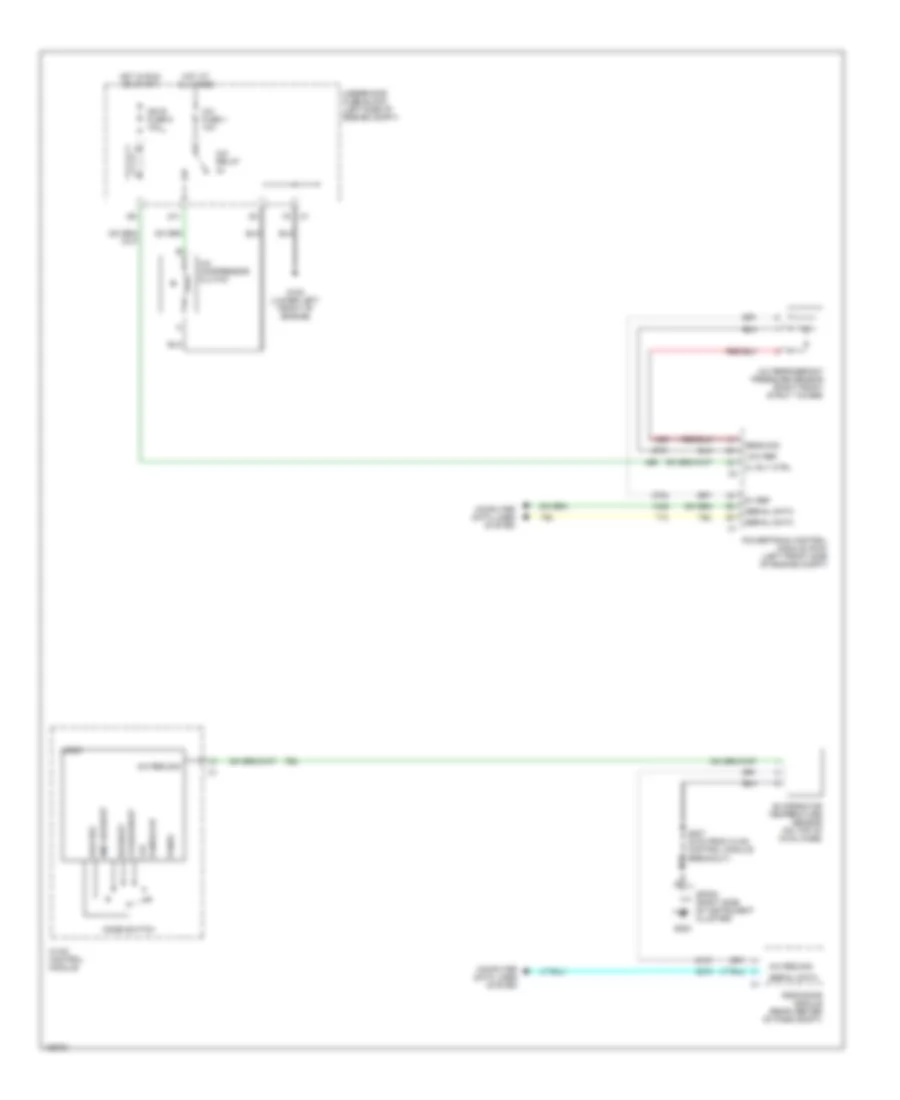

Compressor Wiring Diagram for Chevrolet SSR 2004

Compressor Wiring Diagram for Chevrolet SSR 2004 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Compressor Wiring Diagram for Chevrolet SSR 2004:

  • 5v ref
  • A/c compressor clutch
  • A/c fuse 1 10a
  • A/c refrigerant pressure sensor (right front strut tower)
  • A/c relay
  • A/c req sig
  • Amx defrost
  • C1 f3
  • Cl rly ctrl
  • Computer data lines system
  • D11
  • Defrost
  • Evaporator temperature sensor (on top of hvac case)
  • Flr
  • Flt/defrost
  • G100 (lower left front of engine)
  • G200
  • Hot at all times
  • Hot in run or start
  • Hvac control module
  • Ign e fuse 9 10a
  • Logic
  • Low ref
  • Mode switch
  • Panel
  • Panel/flr
  • Powertrain control module (pcm) (left front side of engine compt)
  • Roof/door module (rear center of pass compt)
  • S207 (9 cm from hvac control module breakout)
  • Sens sig
  • Serial data
  • Sp200 (right side of instrument cluster)
  • Underhood fuse block (left side of engine compt)

Manual A/C Wiring Diagram (1 of 2) for Chevrolet SSR 2004

Manual AC Wiring Diagram (1 of 2) for Chevrolet SSR 2004 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Manual A/C Wiring Diagram (1 of 2) for Chevrolet SSR 2004:

  • (15 cm from hvac control module breakout) s209
  • (left side of eng compt) underhood fuse block
  • 5v ref
  • A/c compressor clutch
  • A/c fuse 1 10a
  • A/c relay
  • A/c req sig
  • Amx defrost
  • B c6
  • Batt
  • Blower motor (lower right side of dash)
  • Blower motor resistor (lower right side of dash)
  • Blower motor switch
  • Blower mtr ctrl
  • Blwr fuse 45 40a
  • C1 c1
  • C1 f3
  • C4 b2
  • D11
  • Defog sw sig
  • Defogger system
  • Defrost
  • Defrost rear
  • Dimming ctrl
  • Dr ctrl a
  • Dr ctrl b
  • Dr pos sig
  • Eng cln fan fuse 44 60a
  • Flr
  • Flt/defrost
  • G100 (lower left front of engine)
  • G200
  • Grd
  • High
  • Hot at all times
  • Hot in run
  • Hot in run or start
  • Hvac 1 fuse 39 10a
  • Hvac b dd unlock fuse 36 10a
  • Hvac control module
  • Ign 3 voltage
  • Ign e fuse 9 10a
  • Interior lights system
  • Logic
  • Low ref
  • Med 1
  • Med 2
  • Med 3
  • Mode switch
  • Mtr high ctrl
  • Off
  • Panel
  • Panel/flr
  • Pnk
  • Power distribution system
  • Rear fuse block (rear center of eng compt)
  • Recirc
  • Red
  • S213
  • Sp200 (right side of instrument cluster)
  • Tan
  • Temp dr ctrl

Manual A/C Wiring Diagram (2 of 2) for Chevrolet SSR 2004

Manual AC Wiring Diagram (2 of 2) for Chevrolet SSR 2004 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Manual A/C Wiring Diagram (2 of 2) for Chevrolet SSR 2004:

  • (2.5 cm from cooling fan relay breakout)
  • (5 cm from cooling fan relay breakout)
  • (5 cm from hvac control module breakout)
  • (front center of engine) cooling fan
  • (left front side of engine compt) cooling fan 1 relay
  • (left front side of engine compt) cooling fan 2 relay
  • 5v ref
  • A/c refrigerant pressure sensor (right front strut tower)
  • A/c req sig
  • Air temperature actuator (behind radio, top of hvac case)
  • Cl rly ctrl
  • Computer data lines system
  • Ect sens sig
  • Engine coolant temperature (ect) sensor (left front of engine)
  • Evaporator temperature sensor (on top of hvac case)
  • Fan rly ctrl
  • G105 (left front of eng compt)
  • G200
  • Low ref
  • Mode actuator (left side of dash, on hvac case)
  • Nca
  • Pnk
  • Powertrain control module (pcm) (left front side of engine compt)
  • Recirculation actuator (above blower motor)
  • Roof/door module (rear center of pass compt)
  • S105
  • S106
  • S207 (9 cm from hvac control module breakout)
  • S208
  • S212
  • Sens sig
  • Serial data
  • Sp200 (right side of instrument cluster)
