AIR CONDITIONING – Subaru Impreza WRX 2002 – SYSTEM WIRING DIAGRAMS

  1. Home
  2. >SUBARU
  3. >Subaru 2002
  4. >Subaru Impreza WRX 2002
  5. >Subaru Impreza WRX 2002 - ALL WIRING DIAGRAMS

Download PDF file

AIR CONDITIONING

2.0L

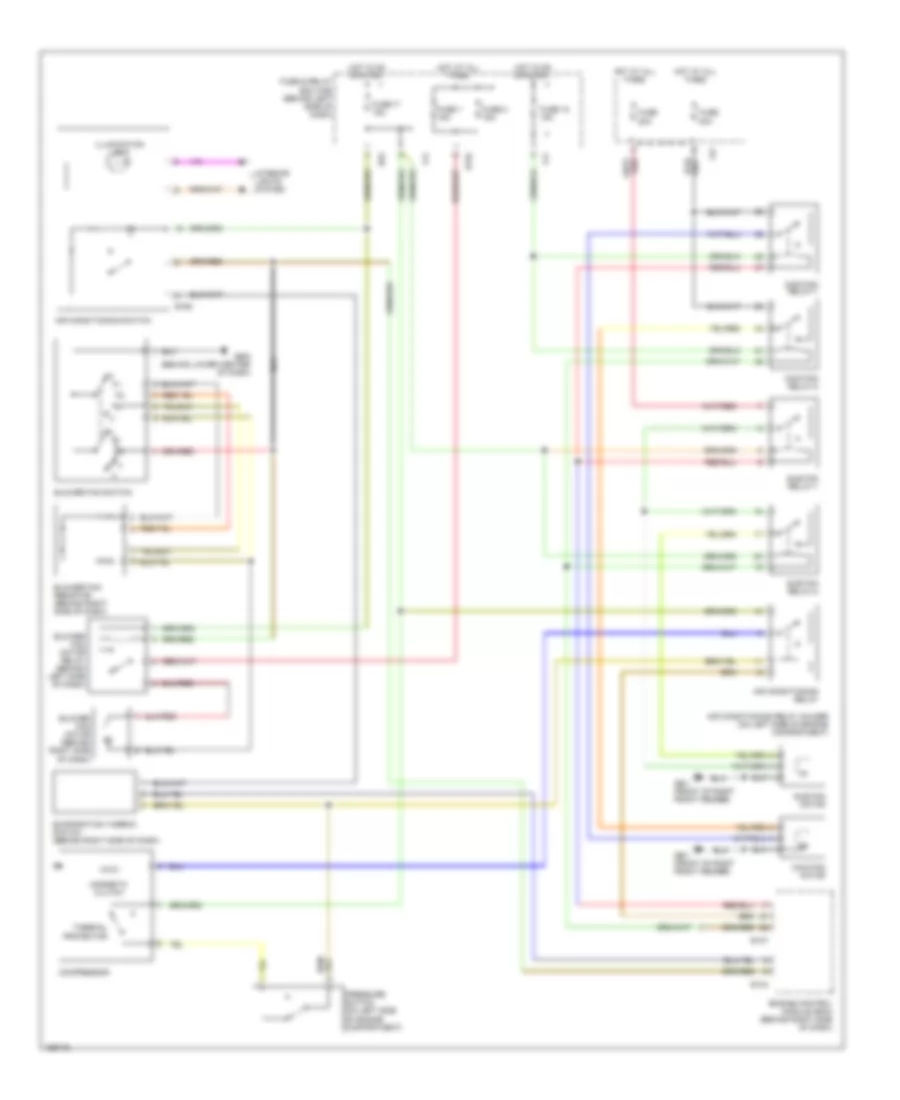

2.0L, Manual A/C Wiring Diagram for Subaru Impreza WRX 2002

2.0L, Manual AC Wiring Diagram for Subaru Impreza WRX 2002 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Download PDF file

List of elements for 2.0L, Manual A/C Wiring Diagram for Subaru Impreza WRX 2002:

  • Air conditioning relay
  • Air conditioning relay holder (on left side of engine compartment)
  • Air conditioning switch
  • B134
  • B137
  • B152
  • B168
  • B52
  • Blower fan motor (behind right side of dash)
  • Blower fan motor relay (behind left side of dash)
  • Blower fan resistor (behind right side of dash)
  • Blower fan switch
  • Compressor
  • Engine control module (ecm) (behind right side of dash)
  • Evaporation thermo switch (behind right side of dash)
  • F27
  • F41
  • Fuse & relay box (f/b) (behind left side of dash)
  • Fuse 1 15a
  • Fuse 17 15a
  • Fuse 18 15a
  • Fuse 2 15a
  • Fuse 20a
  • Gb-1 (front of right front fender)
  • Gb-6 (behind lower center of dash)
  • Hot at all times
  • Hot in on or start
  • Illumination light
  • Interior lights system
  • Magnetic clutch
  • Main fan motor
  • Main fan relay-1
  • Main fan relay-2
  • Nca
  • Pressure switch (on left side of engine compartment)
  • Sub fan motor
  • Sub fan relay-1
  • Sub fan relay-2
  • Thermal protector

2.5L

2.5L, Manual A/C Wiring Diagram for Subaru Impreza WRX 2002

2.5L, Manual AC Wiring Diagram for Subaru Impreza WRX 2002 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for 2.5L, Manual A/C Wiring Diagram for Subaru Impreza WRX 2002:

  • Air conditioning relay (in air conditioning relay holder)
  • Air conditioning relay holder (on left side of engine compartment)
  • Air conditioning switch
  • B134
  • B135
  • B136
  • B152
  • B168
  • B52
  • Blower fan motor (behind right side of dash)
  • Blower fan motor relay (behind left side of dash)
  • Blower fan resistor (behind right side of dash)
  • Blower fan switch
  • Compressor
  • Engine control module (ecm) (behind right side of dash)
  • Evaporation thermo switch (behind right side of dash)
  • F27
  • F41
  • Fuse & relay box (f/b) (behind left side of dash)
  • Fuse 1 15a
  • Fuse 17 15a
  • Fuse 18 15a
  • Fuse 2 15a
  • Fuse 20a
  • Gb-1 (front of right front fender)
  • Gb-6 (behind lower center of dash)
  • Hot at all times
  • Hot in on or start
  • Illum
  • Interior lights system
  • Magnet clutch
  • Main fan motor (behind left side of radiator)
  • Main fan relay
  • Nca
  • Pressure switch (on left side of engine compartment)
  • Sub fan motor (behind right side of radiator)
  • Sub-fan relay
  • Thermal protector
