AIR CONDITIONING – Subaru Justy GL 1994 – SYSTEM WIRING DIAGRAMS

AIR CONDITIONING

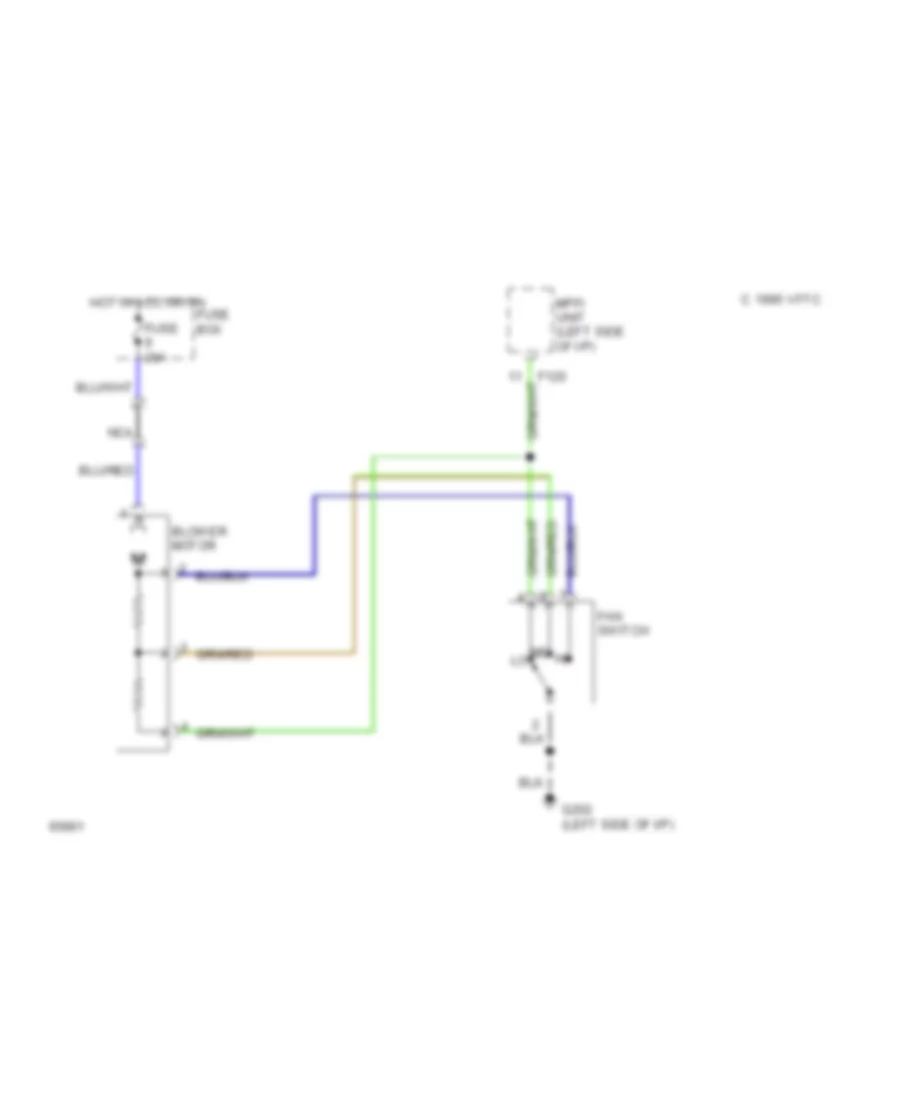

Heater Wiring Diagram for Subaru Justy GL 1994

List of elements for Heater Wiring Diagram for Subaru Justy GL 1994:

• Blower motor
• C 1995 vftc
• F120
• Fan switch
• Fuse 20a
• Fuse box
• G202 (left side of i/p)
• Hot in acc or on
• Mpfi unit (left side of i/p)
• Nca
