БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ

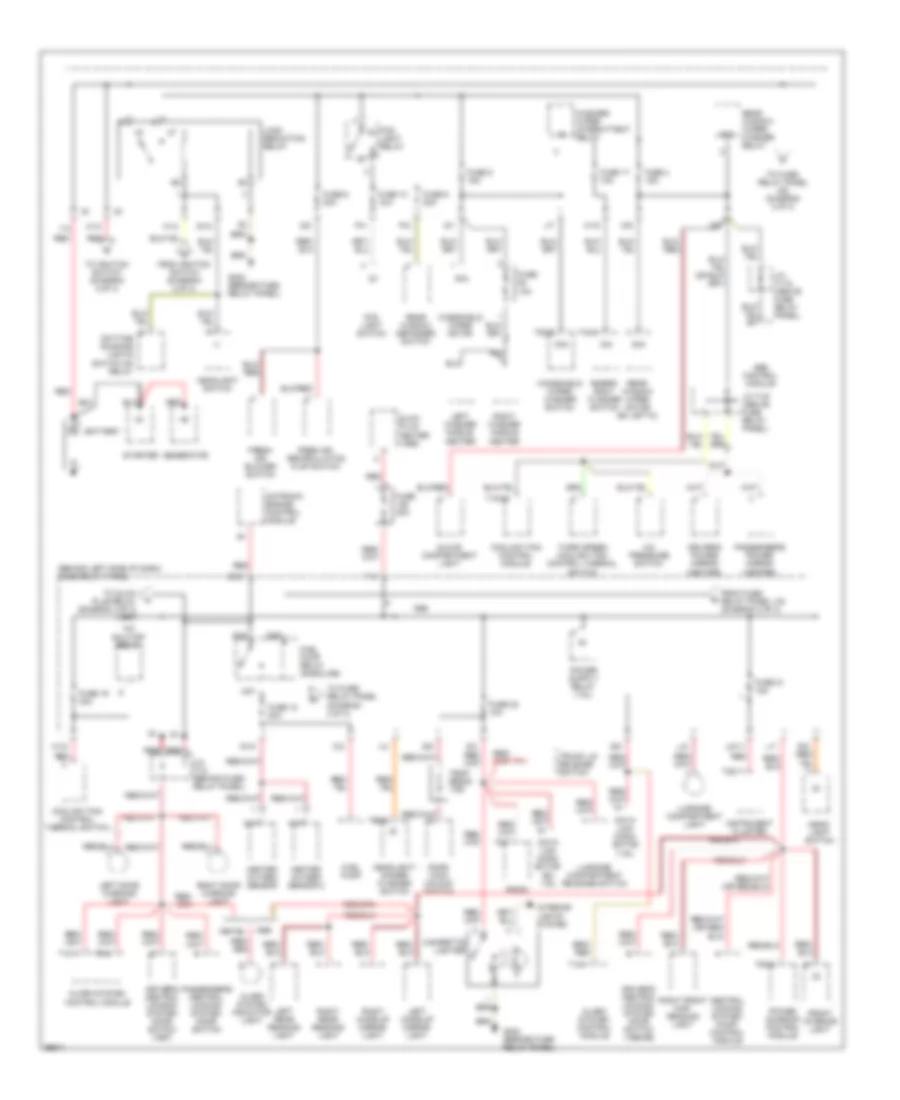

Электросхема блока предохранителей и реле (1 из 3) для Volkswagen Jetta TDI 1997

Электросхема блока предохранителей и реле (1 из 3) для Volkswagen Jetta TDI 1997 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Download PDF file

Электросхема блока предохранителей и реле (1 из 3) для Volkswagen Jetta TDI 1997 - Список элементов:

  • (1.9l)
  • (behind left side of dash) fuse/relay panel
  • 15a
  • 1997-98
  • 2/86
  • 4/87
  • 53a
  • 6/30
  • A/c pressure switch
  • A/c shutoff relay
  • A1/5
  • Abs control module
  • Alarm system control module
  • Alarm system indicator light
  • Battery
  • Central locking system pump/ control module
  • Cigarette lighter
  • Coolant fan control module
  • Coolant fan control thermal switch
  • D/3
  • Data link conn- ector
  • Data link conn- ector (ex 1.9l)
  • Daytime running lights switch on relay
  • Door lock/ unlock switch
  • Driver's central locking system door switch (1997)
  • Driver's central locking system door switch (1998-99)
  • Driver's power mirror (heater)
  • Emerg- ency flasher switch
  • Fog light relay
  • Fog light switch
  • Free air/ recirculation flap switch
  • Fresh air blower switch
  • From fuse/ relay panel (15) (diagram 2 of 3)
  • From ignition switch (diagram 2 0f 3)
  • Front interior light
  • Fuel pump
  • Fuel pump relay (gasoline)
  • Fuse 10 15a
  • Fuse 10a
  • Fuse 17 10a
  • Fuse 18 20a
  • Fuse 19 30a
  • Fuse 21 15a
  • Fuse 22 10a
  • Fuse 30a
  • Fuse 4 15a
  • Fuse 5 15a
  • Fuse 6 30a
  • Fuse 9 20a
  • G1/8
  • G2/9
  • G202 (beside fuse/ relay panel)
  • Generator
  • Glove compartment light
  • Glow plug heater (1998)
  • H1/2
  • H1/3
  • H1/5
  • Head- light switch
  • Headlight switch
  • Headlight/ dimmer flasher switch
  • Heated oxygen sensor
  • Heated oxygen sensor 2
  • Instrument cluster
  • Interior lights system
  • J/4
  • J/7
  • J/c tv18 (above fuse relay panel)
  • J/c tv2 (behind fuse/ relay panel)
  • J/c tv6 (above fuse relay panel)
  • K/6
  • L/5
  • L/7
  • Left door warning light
  • Left make-up mirror light
  • Left rear reading light
  • Left washer nozzle heater
  • Load reduction relay
  • Luggage compartment light
  • Luggage compartment release switch
  • M/2
  • Motronic engine control module
  • P/2
  • P/4
  • Passenger's central locking system door switch
  • Passenger's power mirror (heater)
  • Power sunroof control module
  • Q/2
  • Q/3
  • Q/5
  • R/10
  • R/5
  • Radio
  • Rear window defogger switch
  • Rear window wiper motor (ex jetta)
  • Rear window wiper/ washer relay
  • Red
  • Right door warning light
  • Right front map/ reading light
  • Right make-up mirror light
  • Right rear reading light
  • Right washer nozzle heater
  • S/1
  • Starter
  • T/1
  • T10/1
  • T10a/9
  • T12/1
  • T28/11
  • T4c/4
  • T5c/2
  • T6/3
  • T6a/5
  • T8/7
  • Tb5/5
  • Temp resis- tor
  • Third speed coolant fan control thermal switch
  • To fuse/ relay panel (30) (diagram 3 of 3)
  • To fuse/ relay panel (diagram 3 of 3)
  • To glow plug relay (diagram 3 of 3) (1997)
  • To ignition switch (diagram 2 0f 3)
  • Trunk lid release switch
  • U2/11
  • Washer/ wiper intermittent relay
  • Windshield wiper motor
  • Windshield wiper/ washer switch
  • Y/3

Электросхема блока предохранителей и реле (2 из 3) для Volkswagen Jetta TDI 1997

Электросхема блока предохранителей и реле (2 из 3) для Volkswagen Jetta TDI 1997 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

Электросхема блока предохранителей и реле (2 из 3) для Volkswagen Jetta TDI 1997 - Список элементов:

  • (behind fuse/ relay panel) j/c tv4
  • (under left side of dash) fuse/relay panel)
  • 15a
  • A/t
  • A1/7
  • Abs warning light
  • Acc
  • Airbag control module
  • Airbag malfunction indicator lamp
  • Alarm system control module
  • Back-up light switch
  • Cassette storage light
  • Convertible top control module (1998-99)
  • Cruise control switch (1.9l)
  • Cruise control switch (2.0l/2.8l)
  • D/11
  • D/8
  • D/9
  • Driver's seat heater control module
  • Dual horn relay
  • Dual horns
  • E/2
  • F/6
  • From fuse/ relay panel (pin h1/2) (diagram 1 of 3)
  • Fuse 13 15a
  • Fuse 14 10a (or 15 a)
  • Fuse 15 10a
  • Fuse 16 15a
  • Fuse 17 10a
  • Fuse 51 5a
  • G2/4
  • H1/4
  • H1/5
  • Headlight dimmer/ flasher switch
  • Ignition switch
  • Instrument cluster
  • J/c tv 5 (behind fuse/ relay panel)
  • Left front power window control module
  • Left rear power window control module
  • Left rear power window switch (ex cabrio)
  • Lock
  • M/5
  • M/t
  • Motronic engine control module (gasoline)
  • Multi- function transmission range switch
  • Park/ neutral position relay
  • Passenger's seat heater control module
  • Positive crank- case ventil- ation heating element (2.8l only)
  • Positive crankcase ventilation heating element (1.9l)
  • Power mirror switch
  • Red
  • Right front map/ reading light
  • Right front power window control module
  • Right rear power window control module
  • Right rear power window switch (ex cabrio)
  • Seat belt warning system relay
  • Seat heater regulator switch
  • Shift lock solenoid
  • Start
  • Sunroof switch light
  • T10/4
  • T4c/4
  • To fuse/ relay panel (15) (diagram 3 of 3)
  • To fuse/relay panel (load reduction relay) (diagram 1 of 3)
  • To fuse/relay panel pin h1/1 (diagram 3 of 3)
  • Transmission control module
  • Transmission range sensor (1.9l: 1998)
  • U2/1
  • X/4

Электросхема блока предохранителей и реле (3 из 3) для Volkswagen Jetta TDI 1997

Электросхема блока предохранителей и реле (3 из 3) для Volkswagen Jetta TDI 1997 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

Электросхема блока предохранителей и реле (3 из 3) для Volkswagen Jetta TDI 1997 - Список элементов:

  • (2.0l)
  • (2.8l)
  • (2.8l) (2.0l)
  • (cabrio) (ex cabrio)
  • (under left side of dash) fuse/relay panel
  • 1.9l only
  • 2.8l only
  • A/t
  • Alarm system control module
  • Amplifier
  • Anti- theft engine disable relay 1
  • Brake light switch
  • Camshaft position sensor (2.0l)
  • Camshaft position sensor (2.8)
  • Circuit breaker 43 20a
  • Convertible top control module (1998)
  • Data link connector
  • Diesel direct fuel ignition (dfi) engine control module (ecm) (1.9l)
  • Driver's door central locking system switch (cabrio only)
  • E/4
  • Engine glow plug (1997)
  • Evaporative emission canister purge regulator valve
  • Evaporative emission canister purge solenoid valve (2.0l)
  • F/1
  • First or third speed coolant fan control cut-off relay (2.0l)
  • From fuse/ h relay panel (diagram 1 of 3) (1997)
  • From fuse/ relay panel (15) (diagram 2 of 3)
  • From fuse/ relay panel (30) (diagram 1 of 3)
  • From fuse/ relay panel (fuel pump relay) (diagram 1 of 3)
  • From ignition switch (pin 7) (diagram 2 of 3)
  • Fuel cut-off valve shut- off relay (2.0l)
  • Fuel injector 1
  • Fuel injector 2
  • Fuel injector 3
  • Fuel injector 4
  • Fuel injector 5 (2.8l only)
  • Fuel injector 6 (2.8l only)
  • Fuse 10a
  • Fuse 15a
  • Fuse 50a
  • G1/4
  • G2/8
  • Glow plug relay (1997)
  • H1/1
  • Ignition coil
  • J/c tv2
  • Leak detection pump (2.0l)
  • Left front power window control module
  • Left front power window switch
  • Left rear power window control module
  • M/t
  • Mass air flow sensor
  • Motronic engine control module (2.8l)
  • N/1
  • Park/ neutral position relay
  • Red
  • Right front power window control module
  • Right front power window switch
  • Right rear power window control module (ex cabrio)
  • Secondary air injection pump relay
  • Secondary air injection solenoid valve
  • T6/5
  • Vehicle speed sensor (2.0)
  • Vehicle speed sensor (2.8)
  • Window console switch
  • Y/1
  • Y/2
  • Z/1
