Электросхемы ПРИВОД СТЕКЛОПОДЪЕМНИКОВ Volkswagen Jetta TDI 1997

ПРИВОД СТЕКЛОПОДЪЕМНИКОВ

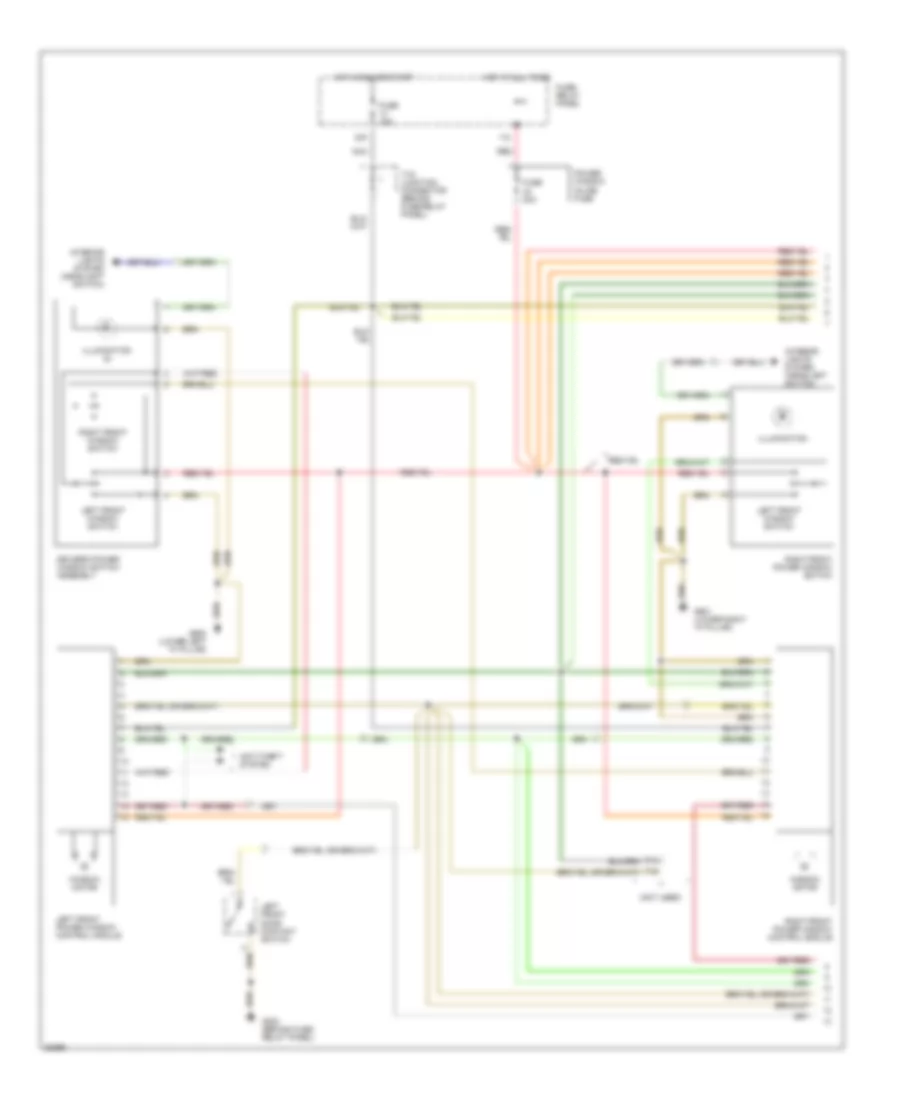

Электросхема стеклоподъемников (1 из 2) для Volkswagen Jetta TDI 1997

https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO

Электросхема стеклоподъемников (1 из 2) для Volkswagen Jetta TDI 1997 - Список элементов:

• (not used)
• Anti-theft system
• D/9
• Driver's power window switch assembly
• Fuse 10a
• Fuse 20a
• Fuse/ relay panel
• G202 (behind fuse/ relay panel)
• G900 (lower left "a" pillar)
• G901 (lower right "a" pillar)
• Hot at all times
• Hot in run or start
• Illumination
• Illumination (2)
• Interior lights system (headlight switch)
• Left front door contact switch
• Left front power window control module
• Left front window switch
• Nca
• Power window inline fuse
• Red
• Right front power window control module
• Right front power window switch
• Right front window switch
• T1a
• T1d
• Tv5 junction connector (behind fuse/relay panel)
• Window motor
• Y/2

Электросхема стеклоподъемников (2 из 2) для Volkswagen Jetta TDI 1997

https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO

Get access to all wiring diagrams of the car

Электросхема стеклоподъемников (2 из 2) для Volkswagen Jetta TDI 1997 - Список элементов:

• G305 (near right "b" pillar)
• Illumination
• Illumination (3)
• Information not available
• Interior lights system
• Left front window switch
• Left rear power window control module
• Left rear window switch
• Nca
• Power window console switch assembly
• Right rear power window control module
• Right rear power window switch
• Right rear window switch
• T21/20
• T21a/20
• Window lockout switch
• Window motor
