СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ
1.9L

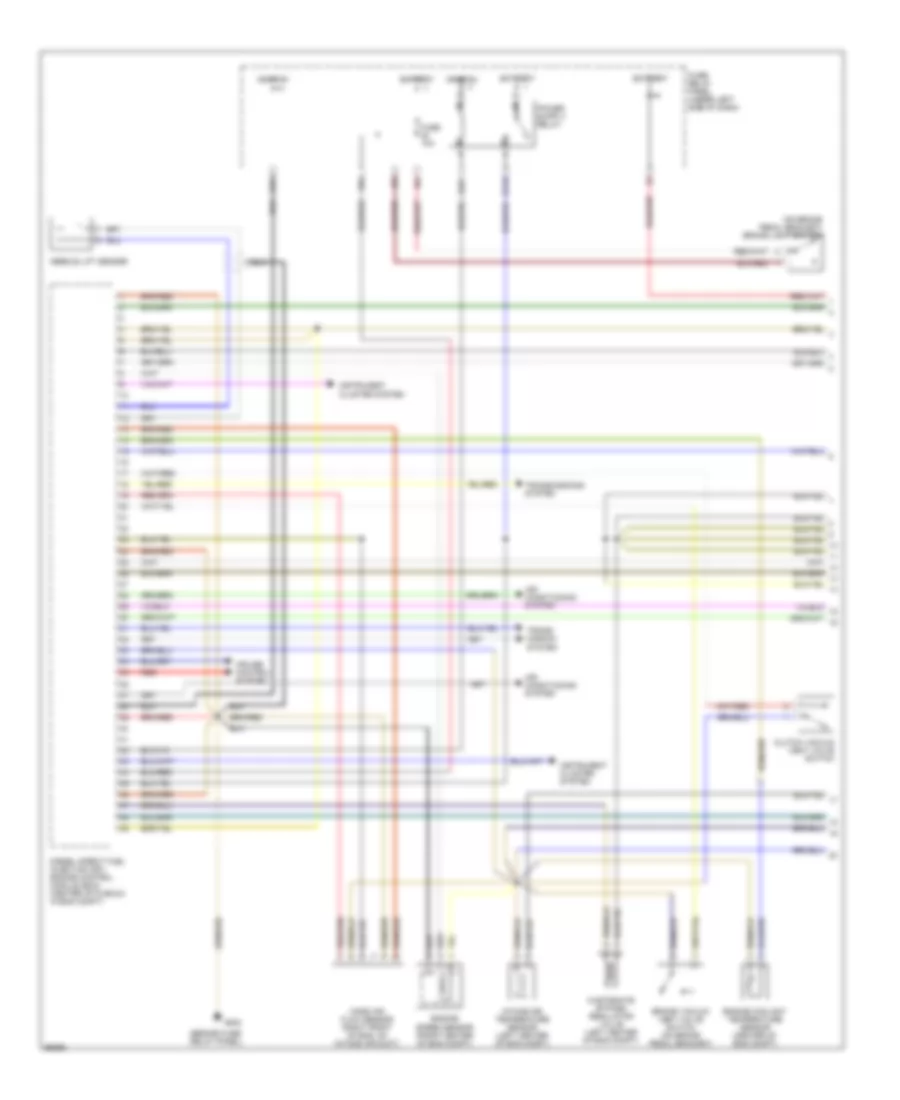

1.9L турбо дизель, Электросхема системы управления двигателя (1 из 2) для Volkswagen Passat GLX 1996
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO![Электросхемы СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ Volkswagen Passat GLX 1996 Download PDF file](/images/pdf-80.jpg)
1.9L турбо дизель, Электросхема системы управления двигателя (1 из 2) для Volkswagen Passat GLX 1996 - Список элементов:
- (beside fuse/ relay panel)
- (on brake pedal bracket) brake light switch
- Air conditioning system
- Battery
- Brake vacuum vent valve switch (on brake pedal bracket)
- Clutch vacuum vent valve switch
- Cruise control system
- Diesel direct fuel injection (dfi) engine control module (ecm) (center of plenum, in eng compt)
- E/3
- E/4
- Engine coolant temperature sensor (center of eng compt)
- Engine speed sensor (front center of eng compt)
- Fuse 10a
- Fuse/ relay panel (under left side of dash)
- G1/10
- G1/4
- G1/7
- G202
- Ignition
- Instrument cluster system
- Intake air temperature sensor (left center of eng compt)
- Mass air flow sensor (right front of eng, on intake air duct)
- Needle lift sensor
- Red
- Trans- mission system
- Transmissions system
- W/4
- Wastegate bypass regulator valve (left center of eng compt)
- Z/1
1.9L турбо дизель, Электросхема системы управления двигателя (2 из 2) для Volkswagen Passat GLX 1996
1.9L турбо дизель, Электросхема системы управления двигателя (2 из 2) для Volkswagen Passat GLX 1996 - Список элементов:
- Cold start injector
- Coolant system glow plug relay (on center of safety wall)
- Coolant system glow plugs
- Cruise control system
- Data link connector (under center of dash)
- Diesel direct fuel injection (dfi) engine control module (ecm) (center of plemun, in eng compt)
- Display unit control module
- Egr vacuum regulator solenoid valve (right side of eng compt)
- Engine glow plugs
- Fuel cut-off valve (right front of eng compt)
- Fuel temper- ature sensor
- Fuse 50a
- Fuse/relay panel (under left side of dash)
- G1/12
- G1/9
- G2/5
- Glow plug indicator
- Glow plug relay (on fuse/ relay panel)
- Hot at all times
- Instrument cluster
- Malfunction indicator lamp
- Modulating piston displacement sensor
- Nca
- Quantity adjuster
- Red
- T28/10
- T28/20
- T28b/26
- Throttle position (tp) sensor/ closed throttle position (ctp) switch/kickdown switch (above accelerator pedal)
- U1/6
- U1/8
- U1/9
2.0L
2.0L, Электросхема системы управления двигателя (1 из 2) для Volkswagen Passat GLX 1996
2.0L, Электросхема системы управления двигателя (1 из 2) для Volkswagen Passat GLX 1996 - Список элементов:
- (in engine compartment, on center of plenum)
- Air conditioning system
- Battery
- Battery ground
- Data link connector (center of dash)
- Engine speed sensor (front center of engine compt)
- Fuel pump
- Fuel pump relay
- Fuse 10a
- Fuse 20a
- Fuse 30a
- Fuse/ relay panel
- Fuse/relay panel
- G1/3
- G1/4
- G1/6
- G1/8
- G132 (on engine block)
- G2/4
- G2/8
- G2/9
- Ignition
- Instrument cluster
- Instrument cluster system
- Instrument cluster system (control module/ display unit)
- Jumper connector
- M/1
- M/2
- Motronic engine control module
- Nca
- Red
- Secondary air injection (air) pump motor
- Secondary air injection (air) pump relay
- Transmission control module
- Transmission control system
- U2/2
- Vehicle speed signal
- W/1
- Z/2
2.0L, Электросхема системы управления двигателя (2 из 2) для Volkswagen Passat GLX 1996
2.0L, Электросхема системы управления двигателя (2 из 2) для Volkswagen Passat GLX 1996 - Список элементов:
- Camshaft position sensor (front center of engine compt, on distributor)
- Engine coolant temperature (ect) sensor (front center of eng compt)
- Evaporative emission (evap) canister purge regulator valve (right side of eng compt)
- Fuel injectors
- G132 (on engine block)
- Heated oxygen sensor (ho2s)
- Heated oxygen sensor (ho2s) 2 (right rear of engine compt)
- Ignition coil
- Ignition coil power output stage
- Ignition distributor
- Instrument cluster system (control module/ display unit)
- Intake air temperature (iat) sensor (right center of eng compt)
- Knock sensor (ks) (on left side of engine block)
- Mass air flow (maf) sensor (right side of engine compt, on air duct)
- Nca
- Secondary air injection (air) solenoid valve
- Throttle valve control module (right rear side of engine compt)
- Vehicle speed sensor
2.8L
2.8L, Электросхема системы управления двигателя (1 из 2) для Volkswagen Passat GLX 1996
2.8L, Электросхема системы управления двигателя (1 из 2) для Volkswagen Passat GLX 1996 - Список элементов:
- (in engine compt, on center of plenum)
- 30b
- A/t
- Air conditioning system
- Battery
- Battery ground
- Engine speed sensor (lower left rear of eng)
- Fuel pump
- Fuel pump relay
- Fuse 10a
- Fuse 20a
- Fuse 30a
- Fuse/ relay panel
- Fuse/relay panel
- G1/3
- G1/4
- G1/8
- G134 (top of engine)
- G2/4
- G2/8
- G2/9
- Ignition
- Ignition coil (left rear of engine)
- Instrument cluster
- Instrument cluster system
- Instrument cluster system (mil)
- Instrument cluster system (pin 26)
- M/1
- M/2
- M/t
- Motronic engine control module
- Nca
- Red
- Red jumper connector
- Secondary air injection (air) pump motor (front center of eng compt)
- Secondary air injection (air) pump relay
- Secondary air injection (air) solenoid valve
- Transmission control module (tcm) (below rear seat)
- Transmission control system
- U2/2
- Vehicle speed output
- W/1
- Z/2
2.8L, Электросхема системы управления двигателя (2 из 2) для Volkswagen Passat GLX 1996
2.8L, Электросхема системы управления двигателя (2 из 2) для Volkswagen Passat GLX 1996 - Список элементов:
- Camshaft position sensor
- Data link connector (under left side of dash)
- Egr vacuum regulator valve
- Engine coolant temperature (ect) sensor (left rear of engine, on thermostat housing)
- Evaporative emission (evap) canister purge regulator valve (on right side of eng compartment)
- Fuel
- G134 (top of engine)
- Heated oxygen sensor (ho2s)
- Heated oxygen sensor (ho2s) 2
- Injectors
- Intake air temperature (iat) sensor (on rear of upper intake manifold)
- Knock sensor (ks) 1 (on exhaust side of cyl block)
- Knock sensor (ks) 2 (on intake side of cyl block)
- Mass air flow (maf) sensor (on right side of eng compartment)
- Nca
- Throttle valve control module (right rear side of engine compt)
- Vehicle speed sensor
