СИСТЕМЫ СИДЕНИЙ

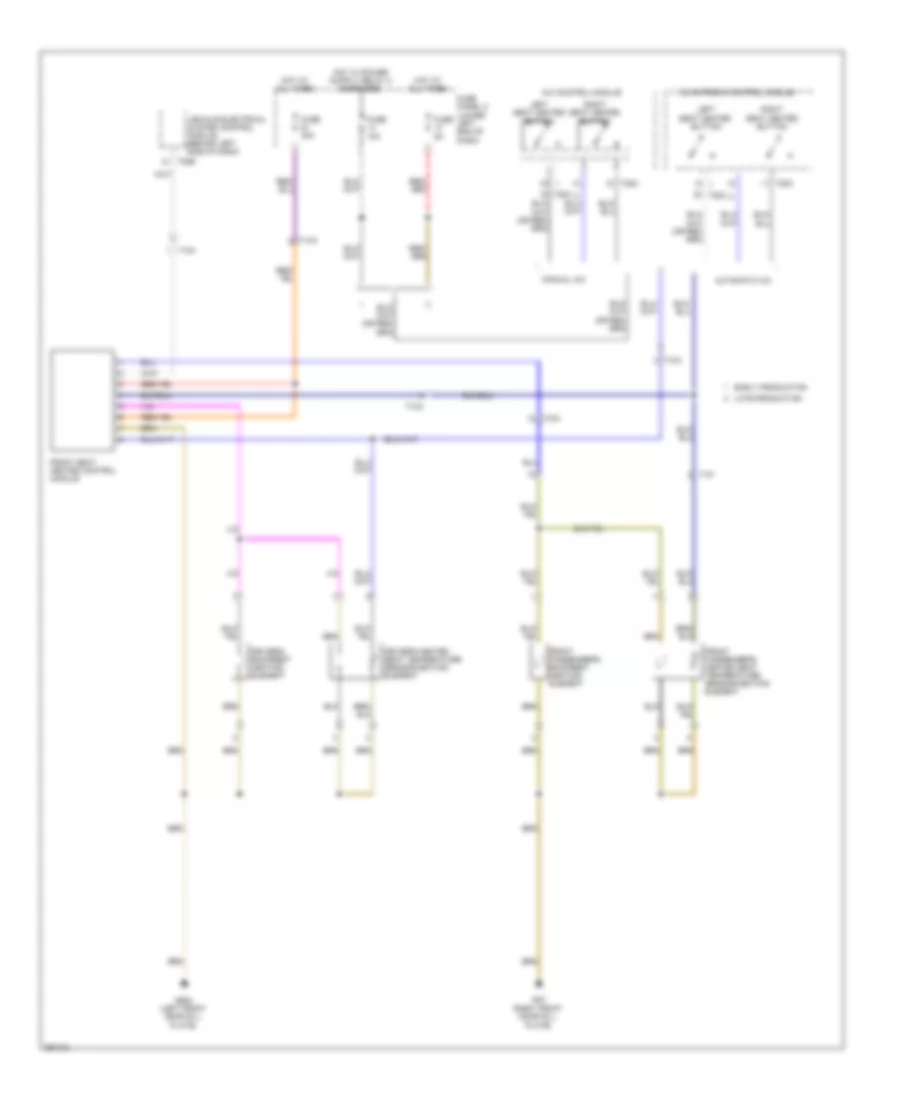

Электросхема подогрева сидений для Volkswagen Tiguan SEL 4Motion 2010

Электросхема подогрева сидений для Volkswagen Tiguan SEL 4Motion 2010 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Download PDF file

Электросхема подогрева сидений для Volkswagen Tiguan SEL 4Motion 2010 - Список элементов:

  • A/c control module
  • Automatic a/c
  • Climatronic control module
  • Driver's backrest heating element
  • Driver's heated seat temperature sensor/heating element
  • Early production
  • Front passenger's backrest heating element
  • Front passenger's heated seat temperature sensor/heating element
  • Front seat heated control module
  • Fuse 10a
  • Fuse 30a
  • Fuse 5a
  • Fuse panel c (lower left end of dash)
  • G43 (right front door sill plate)
  • G602 (left front door sill plate)
  • Hot at all times
  • Late production
  • Left seat heated button
  • Manual a/c
  • Right seat heated button
  • T10a
  • T10i
  • T20c
  • T52b
  • Vehicle electrical system control module (behind left side of dash)

Электросхема привода сидений для Volkswagen Tiguan SEL 4Motion 2010

Электросхема привода сидений для Volkswagen Tiguan SEL 4Motion 2010 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

Электросхема привода сидений для Volkswagen Tiguan SEL 4Motion 2010 - Список элементов:

  • 30a
  • Angle adjustment button
  • Backrest adjustment button
  • Driver's backrest adjustment motor
  • Driver's power seat adjustment circuit breaker 1
  • Driver's seat adjustment switch
  • Driver's seat forward/back adjustment motor
  • Driver's seat height adjustment motor
  • Driver's seat lumbar support adjustment switch
  • Driver's seat lumbar support curvature adjustment motor
  • Driver's seat lumbar support height adjustment motor
  • Fuse 15a
  • Fuse panel c (lower left end of dash)
  • G602 (left front door sill plate)
  • Hot at all times
  • Seat angle adjustment motor
  • Seat forward/back adjustment button
  • Seat height adjustment button
  • T10a
  • T10ac
  • T6cp
  • T6w
