Электросхемы ВНЕШНЕЕ ОСВЕЩЕНИЕ Volkswagen Passat GLX 1996

ВНЕШНЕЕ ОСВЕЩЕНИЕ

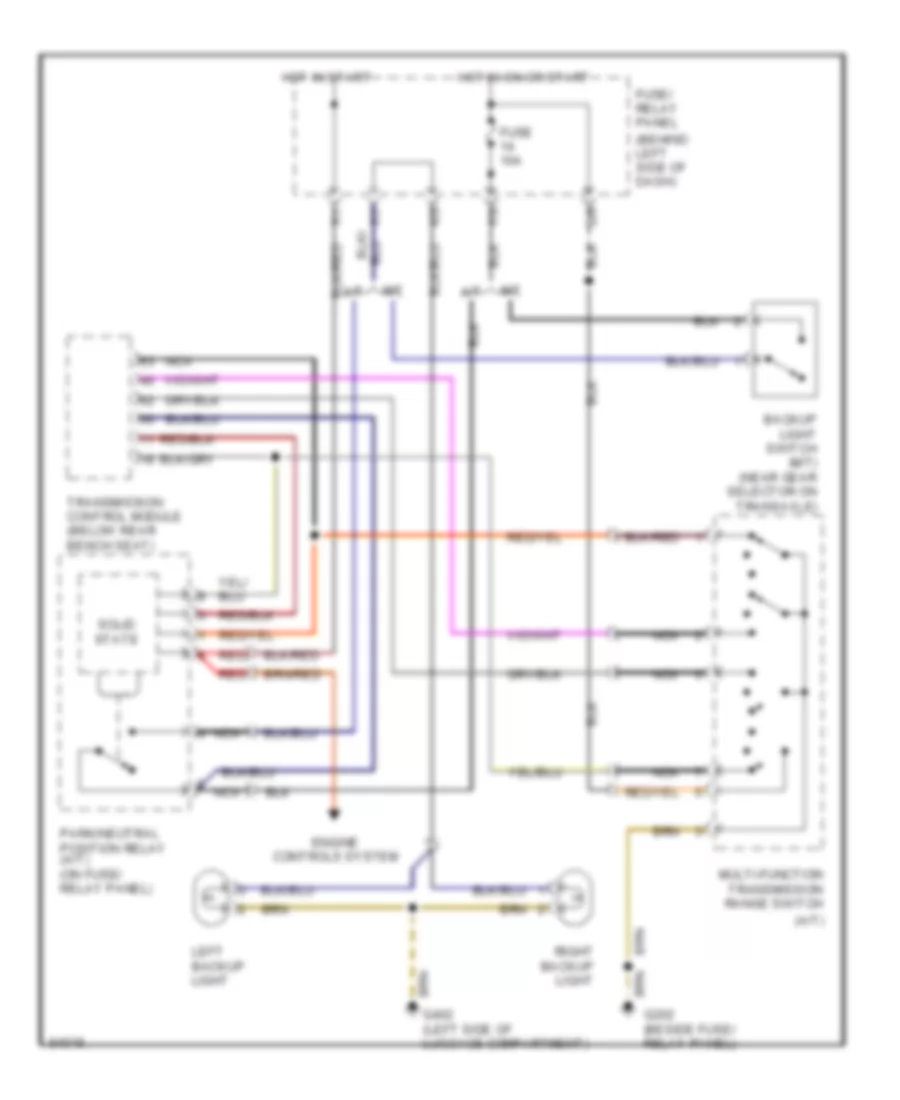

Электросхема заднего хода для Volkswagen Passat GLX 1996

Электросхема заднего хода для Volkswagen Passat GLX 1996 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Download PDF file

Электросхема заднего хода для Volkswagen Passat GLX 1996 - Список элементов:

  • (a/t)
  • (behind left side of dash)
  • A/t
  • Backup light switch (m/t) (near gear selector on transaxle)
  • D/8
  • Engine controls system
  • F/1
  • F/6
  • F/7
  • Fuse 10a
  • Fuse/ relay panel
  • G202 (beside fuse/ relay panel)
  • Hot in on or start
  • Hot in start
  • K/8
  • Left backup light
  • M/t
  • Multi-function transmission range switch
  • Nca
  • Park/neutral position relay (a/t) (on fuse/ relay panel)
  • Red
  • Right backup light
  • Solid state
  • Transmission control module (below rear bench seat)

Электросхема внешнего освещения для Volkswagen Passat GLX 1996

Электросхема внешнего освещения для Volkswagen Passat GLX 1996 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

Электросхема внешнего освещения для Volkswagen Passat GLX 1996 - Список элементов:

  • (left side of luggage compartment)
  • 49a
  • A1/2
  • A1/4
  • A2/2
  • A2/4
  • Acc
  • Anti-theft system
  • Brake light switch (brake pedal bracket)
  • Control module with display unit
  • E/3
  • E/4
  • Emergency flasher relay
  • Emergency flasher switch
  • Emergency flasher warning light
  • Fog light relay
  • Fuse 10a
  • Fuse/ relay panel (behind left side of dash)
  • G402
  • H1/10
  • H1/5
  • H2/2
  • H2/3
  • H2/4
  • H2/5
  • H2/6
  • H2/8
  • Head
  • Headlight dimmer/ flasher switch
  • Headlight switch
  • Headlight system (headlight dimmer/ flasher switch)
  • Headlight system (ignition switch)
  • High- mount brake light
  • Hot at all times
  • Hot in on or start
  • Ignition switch
  • Instrument cluster
  • J/4
  • J/8
  • K/1
  • K/2
  • K/3
  • K/4
  • K/5
  • K/7
  • Left
  • Left brake light
  • Left brake/tail/turn signal light assembly
  • Left rear turn signal light
  • Left side marker light
  • Left side marker/ turn signal light
  • Left tail light
  • Left turn
  • License plate light
  • Lock
  • Nca
  • Not used
  • Off
  • Park
  • Park light indicator
  • Park light switch
  • R/2
  • R/5
  • R/6
  • R/7
  • Red
  • Right
  • Right brake light
  • Right brake/tail/turn signal light assembly
  • Right rear turn signal light
  • Right side marker light
  • Right side marker/ turn signal light
  • Right tail light
  • Right turn
  • Solid state
  • Start
  • T4a/2
  • T4a/4
  • T4b/4
  • T5b/1
  • T5b/5
  • T6a/1
  • T6a/2
  • T6a/3
  • T6a/5
  • T6a/6
  • T6b/1
  • T6b/2
  • T6b/3
  • T6b/6
  • T7a/2
  • T7a/3
  • T7a/4
  • T7a/5
  • T7a/6
  • T7a/7
  • Turn signal switch
  • U1/10
  • Used not
  • W/4
  • Warning system (radio/parking light warning buzzer)
  • Wiper/washer system (headlight washer system relay)
  • X/6
  • Z/2
