AIR CONDITIONING
2.4L

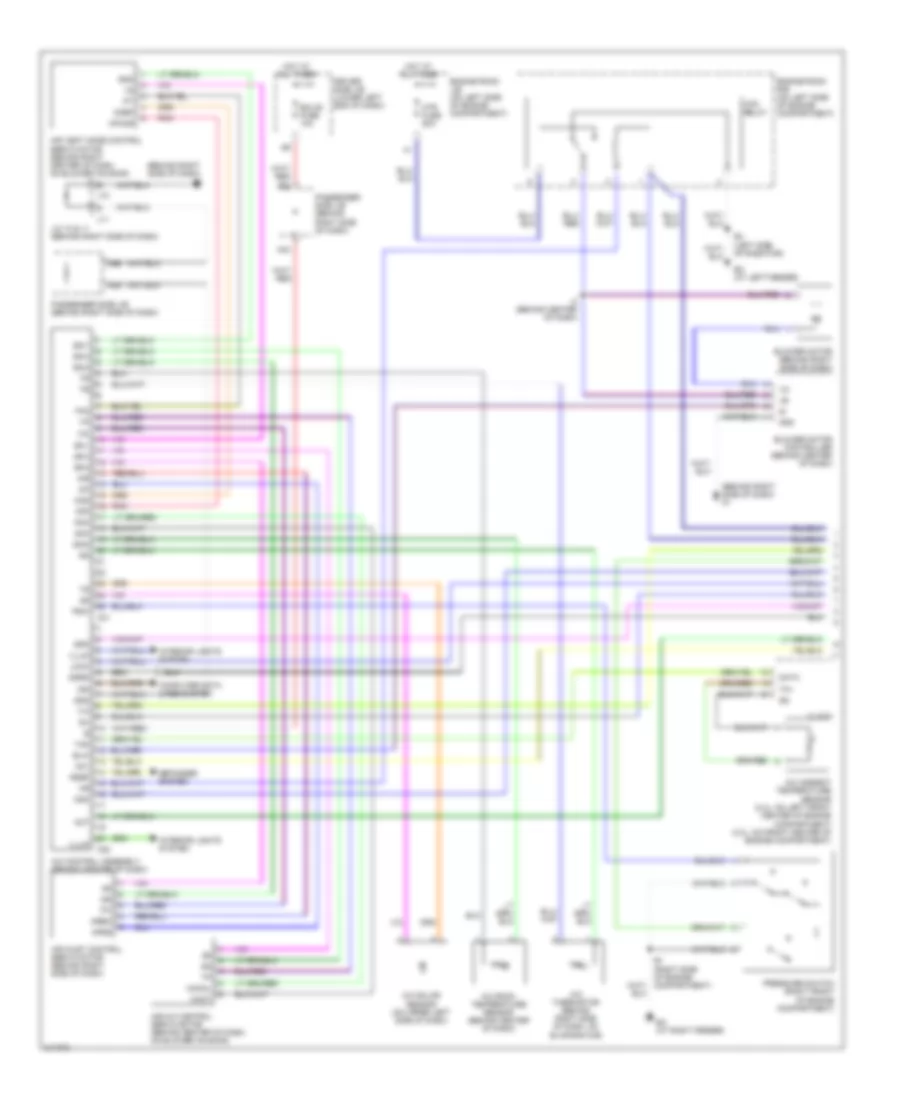

2.4L, Automatic A/C Wiring Diagram (1 of 2) for Toyota Camry Solara SLE 2006
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO List of elements for 2.4L, Automatic A/C Wiring Diagram (1 of 2) for Toyota Camry Solara SLE 2006:
- (behind right side of dash) im
- (behind right side of dash) in
- (left side of radiator)
- A/c ambient temperature sensor (2.4l: on left front center of engine compartment) (3.0l: on front center of engine compartment)
- A/c control assembly (behind center of dash)
- A/c room temperature sensor (behind center of dash)
- A/c solar sensor (on upper left side of dash)
- A/c thermistor (behind right side of dash, on evaporator)
- A31
- A32
- A34
- A36
- A64
- A66
- Ac1
- Act
- Aif
- Air
- Air inlet control servo motor (behind right side of dash)
- Air mix control servo motor (behind center of dash, on blower housing)
- Air vent mode control servo motor (behind right center of dash, on blower housing)
- Amc
- Amh
- Aod
- Aof
- Blower motor (behind right side of dash)
- Blower motor controller (behind center of dash)
- Blw
- Clock
- Computer data lines system
- Data
- Defogger system
- Driver side j/b (lower left end of dash)
- E1 (right side of engine compartment)
- Ea (at right fender)
- Ec (at left fender)
- Ecu-b fuse 10a
- Engine room j/b (on left side of engine compartment)
- Engine room r/b (on left side of engine compartment)
- Gnd
- Hot at all times
- Htr fuse 50a
- Htr relay
- I2 (behind center of dash)
- Ig+
- Ign
- Illum
- Interior lights system
- J/c 10 & 11 (behind right side of dash)
- J10
- J11
- Lock
- Mcool
- Mdef
- Mface
- Mfrs
- Mgc
- Mhot
- Mrec
- Passenger side j/b (behind right side of dash)
- Pnk
- Pressure switch (right front of engine compartment)
- Psw
- Rdef
- S5-1
- S5-2
- S5-3
- Sg-1
- Sg-2
- Sg-3
- Sg-5
- Sgrd
- Spd
- Tam
- Th+
- Tpi
- Tpo
2.4L, Automatic A/C Wiring Diagram (2 of 2) for Toyota Camry Solara SLE 2006
List of elements for 2.4L, Automatic A/C Wiring Diagram (2 of 2) for Toyota Camry Solara SLE 2006:
- (at left fender) ec
- (at left fender) ed
- (front of left front strut tower) diode (a/c 2)
- (left side of radiator) e3
- (on left side of engine)
- (top rear of engine) eh
- A/c condenser fan motor (on right front of engine compartment)
- A/c magnetic clutch & lock sensor
- A102
- A32
- A36
- A39
- A69
- A92
- Act
- B105
- B108
- B115
- B118
- B119
- B125
- B129
- B95
- Cds fuse 30a
- Clutch
- Combination meter
- Convertible
- Coupe, convertible
- D12
- Diode (a/c 1) (front of left front strut tower)
- Driver side j/b (lower left end of dash)
- Engine control module (behind right side of dash)
- Engine controls system
- Engine coolant temperature sensor (on top rear of engine)
- Engine room j/b (on left side of engine compartment)
- Engine room r/b (on left side of engine compartment)
- F16
- Fan
- Fan 1 relay
- Fan 2 relay
- Fan 3 relay
- Hot at all times
- Hot in on or start
- Htr fuse 10a
- I5 (in dash harness, behind glove box)
- Junction connector 2 (behind right side of dash)
- Lock sensor
- Mg clt relay
- Passenger side j/b (behind right side of dash)
- Pnk
- Radiator fan motor (on left front of engine compartment)
- Rdi fuse 30a
- Red
- Spd
- The
- Thw
- Thwo
- W/ vsc
- W/o vsc
2.4L, Manual A/C Wiring Diagram (1 of 2) for Toyota Camry Solara SLE 2006
List of elements for 2.4L, Manual A/C Wiring Diagram (1 of 2) for Toyota Camry Solara SLE 2006:
- (at left fender) ec
- (at right fender) ea
- (behind right side of dash) in
- A/c
- A/c fuse 10a
- A/c thermistor (behind right side of dash on evaporator)
- A/cb
- A26
- A34
- A36
- A64
- A66
- Acid
- Air inlet control servo motor (behind right side of dash)
- Air mix control servo motor (behind center of dash, on blower housing)
- Air vent mode control servo motor (behind right center of dash, on blower housing)
- B/l
- Blower motor (behind right side of dash)
- Blower resistor (behind right center of dash, on blower housing)
- Def
- Defogger system
- Driver side j/b (lower left end of dash)
- E1 (right side of engine compt)
- Ecu-b fuse 10a
- Engine room j/b (on left side of engine compt)
- Engine room r/b (on left side of engine compartment)
- F/d
- Face
- Fdef
- Foot
- Frs
- Gnd
- H11
- H12
- Heater control switch
- Hot at all times
- Htr fuse 50a
- Htr relay
- Ig+
- Illum
- Im (behind right side of dash)
- Interior lights system
- J/c 10 & 11 (behind right side of dash)
- J10
- J11
- Mcool
- Mhot
- Passenger side j/b (behind right side of dash)
- Pnk
- Pressure switch (right front of engine compartment)
- Rdef
- Rec
- Tcol
- Test
- Thot
2.4L, Manual A/C Wiring Diagram (2 of 2) for Toyota Camry Solara SLE 2006
List of elements for 2.4L, Manual A/C Wiring Diagram (2 of 2) for Toyota Camry Solara SLE 2006:
- (at left fender) ec
- (at left fender) ed
- (front of left front strut tower) diode (a/c 2)
- (left side of radiator) e3
- A/c amplifier
- A/c condenser fan motor (on right front of engine compartment)
- A/c magnetic clutch & lock sensor (on left side of engine)
- A29
- A30
- A39
- A69
- Ac1
- Act
- Cds fuse 30a
- Clutch
- Computer data lines system
- D12
- Diode (a/c 1) (front of left front strut tower)
- Driver side j/b (lower left end of dash)
- Engine control module (behind right side of dash)
- Engine controls system
- Engine coolant temperature sensor (on top rear of engine)
- Engine room j/b (on left side of engine compartment)
- Engine room r/b (on left side of engine compartment)
- F16
- Fan 1 relay
- Fan 2 relay
- Fan 3 relay
- Hot at all times
- Hot in on or start
- Htr fuse 10a
- Ii (at left "a" pillar)
- J/c 10 & j/c 11 (behind right side of dash)
- J/c 3 (behind left side of dash)
- J10
- J11
- Lock sensor
- Mg clt relay
- Passenger side j/b (behind right side of dash)
- Pnk
- Radiator fan motor (on left front of engine compartment)
- Rdi fuse 30a
- Red
- Thw
3.3L
3.3L, Automatic A/C Wiring Diagram (1 of 2) for Toyota Camry Solara SLE 2006
List of elements for 3.3L, Automatic A/C Wiring Diagram (1 of 2) for Toyota Camry Solara SLE 2006:
- (behind right side of dash) im
- (behind right side of dash) in
- (left side of radiator)
- A/c ambient temperature sensor (2.4l: on left front center of engine compartment) (3.0l: on front center of engine compartment)
- A/c control assembly (behind center of dash)
- A/c room temperature sensor (behind center of dash)
- A/c solar sensor (on upper left side of dash)
- A/c thermistor (behind right side of dash, on evaporator)
- A/ci
- A/cs
- A34
- A36
- A64
- A66
- Ac1
- Aif
- Air
- Air inlet control servo motor (behind right side of dash)
- Air mix control servo motor (behind center of dash, on blower housing)
- Air vent mode control servo motor (behind right center of dash, on blower housing)
- Amc
- Amh
- Aod
- Aof
- Blower motor (behind right side of dash)
- Blower motor controller (behind center of dash)
- Blw
- Clock
- Data
- Defogger system
- Driver side j/b (lower left end of dash)
- E1 (right side of engine compartment)
- Ea (at right fender)
- Ec (at left fender)
- Ecu-b fuse 10a
- Engine room j/b (on left side of engine compartment)
- Engine room r/b (on left side of engine compartment)
- Gnd
- Hot at all times
- Htr fuse 50a
- Htr relay
- I2 (behind center of dash)
- Ig+
- Illum
- Interior lights system
- J/c 10 & 11 (behind right side of dash)
- J10
- J11
- Mcool
- Mdef
- Mface
- Mfrs
- Mhot
- Mrec
- Passenger side j/b (behind right side of dash)
- Pnk
- Pressure switch (right front of engine compartment)
- Psw
- Rdef
- S5-1
- S5-2
- S5-3
- Sg-1
- Sg-2
- Sg-3
- Sg-5
- Spd
- Tam
- Th+
- Tpi
- Tpo
3.3L, Automatic A/C Wiring Diagram (2 of 2) for Toyota Camry Solara SLE 2006
List of elements for 3.3L, Automatic A/C Wiring Diagram (2 of 2) for Toyota Camry Solara SLE 2006:
- (at left fender) ec
- (at left fender) ed
- (left side of radiator) e3
- (on left side of engine)
- (on top front of engine) ee
- A/c condenser fan motor (on right front of engine compartment)
- A/c magnetic clutch & lock sensor
- A/ci
- A/cs
- A102
- A32
- A36
- A39
- A69
- A92
- Acmg
- B105
- B108
- B115
- B118
- B119
- B125
- B129
- B95
- Cds fuse 30a
- Clutch
- Combination meter
- Convertible
- Coupe, convertible
- D12
- Diode (a/c 1) (front of left front strut tower)
- Driver side j/b (lower left end of dash)
- Engine control module (behind right side of dash)
- Engine controls system
- Engine coolant temperature sensor (on top front of engine)
- Engine room j/b (on left side of engine compartment)
- Engine room r/b (on left side of engine compartment)
- F16
- Fan 1 relay
- Fan 2 relay
- Fan 3 relay
- Hot at all times
- Hot in on or start
- Htr fuse 10a
- I5 (in dash harness, behind glove box)
- Junction connector 2 (behind right side of dash)
- Lcki
- Lock sensor
- Mg clt relay
- Passenger side j/b (behind right side of dash)
- Pnk
- Radiator fan motor (on left front of engine compartment)
- Rdi fuse 30a
- Red
- Spd
- The
- Thw
- Thwo
- W/ vsc
- W/o vsc
- Water temperature switch 1 (3.3l) (on right front of engine compartment)
- Water temperature switch 2 (on rear of engine)
3.3L, Manual A/C Wiring Diagram (1 of 2) for Toyota Camry Solara SLE 2006
List of elements for 3.3L, Manual A/C Wiring Diagram (1 of 2) for Toyota Camry Solara SLE 2006:
- (at left fender) ec
- (at right fender) ea
- (behind right side of dash) in
- A/c
- A/c fuse 10a
- A/c thermistor (behind right side of dash on evaporator)
- A/cb
- A26
- A34
- A36
- A64
- A66
- Acid
- Air inlet control servo motor (behind right side of dash)
- Air mix control servo motor (behind center of dash, on blower housing)
- Air vent mode control servo motor (behind right center of dash, on blower housing)
- B/l
- Blower motor (behind right side of dash)
- Blower resistor (behind right center of dash, on blower housing)
- Def
- Defogger system
- Driver side j/b (lower left end of dash)
- E1 (right side of engine compt)
- Ecu-b fuse 10a
- Engine room j/b (on left side of engine compt)
- Engine room r/b (on left side of engine compartment)
- F/d
- Face
- Fdef
- Foot
- Frs
- Gnd
- H11
- H12
- Heater control switch
- Hot at all times
- Htr fuse 50a
- Htr relay
- Ig+
- Illum
- Im (behind right side of dash)
- Interior lights system
- J/c 10 & 11 (behind right side of dash)
- J10
- J11
- Mcool
- Mhot
- Passenger side j/b (behind right side of dash)
- Pnk
- Pressure switch (right front of engine compartment)
- Rdef
- Rec
- Tcol
- Test
- Thot
3.3L, Manual A/C Wiring Diagram (2 of 2) for Toyota Camry Solara SLE 2006
List of elements for 3.3L, Manual A/C Wiring Diagram (2 of 2) for Toyota Camry Solara SLE 2006:
- (at left fender) ec
- (at left fender) ed
- (left side of radiator) e3
- (on top front of engine)
- A/c condenser fan motor (on right front of engine compartment)
- A/c magnetic clutch & lock sensor (on left side of engine)
- A/cs
- A29
- A30
- A39
- A69
- Acld
- Acmg
- Cds fuse 30a
- Clutch
- D12
- Diode (a/c 1) (front of left front strut tower)
- Driver side j/b (lower left end of dash)
- Engine control module (behind right side of dash)
- Engine controls system
- Engine coolant temperature sensor (on top front of engine)
- Engine room j/b (on left side of engine compartment)
- Engine room r/b (on left side of engine compartment)
- F16
- Fan 1 relay
- Fan 2 relay
- Fan 3 relay
- Hot at all times
- Hot in on or start
- Htr fuse 10a
- I5 (in dash harness, behind glove box)
- Junction connector 2 (behind right side of dash)
- Lck1
- Lock sensor
- Mg clt relay
- Passenger side j/b (behind right side of dash)
- Pnk
- Radiator fan motor (on left front of engine compartment)
- Rdi fuse 30a
- Red
- The
- Thw
- Water temperature switch 1 (3.3l) (on right front of engine compartment)
- Water temperature switch 2 (on rear of engine)
